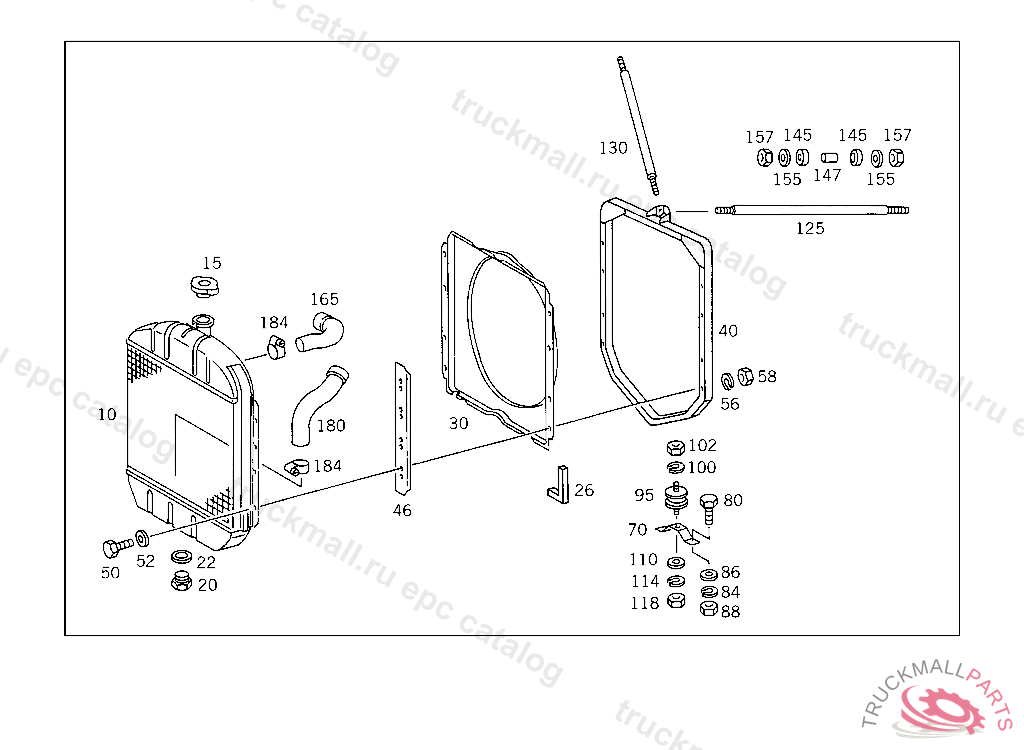

Поз.
Артикул
Описание
20
SCREW PLUG
22
SEAL RING
26
PLASTIC SECTION FAN SHROUD,600836
30
FAN SHROUD RADIATOR
30
FAN SHROUD RADIATOR
40
SUPPORT RADIATOR,604879
46
COVER PLATE RETURN, FROM HOSE CONNECTION I TO HOSE CONNECTION II
50
SCREW PLUG SOCKET TO FRAME
52
WASHER TRAILER PLUG SOCKET TO BRACKET
56
LOCK WASHER RAIL TO BATTERY SUPPORT
58
NUT LEVER TO SHIFTING SHAFT
70
CLAMP. ANGLE
80
SCREW BRACKET TO ENGINE CROSS MEMBER
86
WASHER SUPPORT TO FRAME,D 127794
88
NUT SUPPORT TO SIDE MEMBER
95
RUBBER MOUNTING
100
LOCK WASHER , Replaced By: N912004010102
102
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
110
WASHER GROUND CABLE
114
LOCK WASHER , Replaced By: N912004010102
118
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
125
RADIATOR STRUT , 032-041 FROM CHASSIS 248006, 132-141 FROM CHASSIS 249672 030-041 UP TO CHASSIS 587298 030-041 FROM CHASSIS 699836
130
RADIATOR STRUT
145
RUBBER RING SHOCK ABSORBER MOUNTING
147
SPACER TUBE RADIATOR STRUT TO SUPPORT AND TO CAB
155
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
157
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
165
HOSE FROM THERMOSTAT TO RADIATOR
180
HOSE FROM RADIATOR TO WATER PUMP
184
LOOM TIE HOSE TO FILLER NECK
184
CLAMP COMPRESSED AIR LINE
184
CLAMP , Replaced By: A0019972590
184
BRACKET
999
LOOM TIE. CLAMP HOSE TO FLANGE AND TO VALVE
999
LOOM TIE. CLAMP COMPRESSED AIR LINE TO BRAKE CYLINDER
999
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.670951
999
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
999
HOSE FROM HEAT EXCHANGER TO WATER PUMP 15X24X650, ORDER BY THE METER NOT USED
