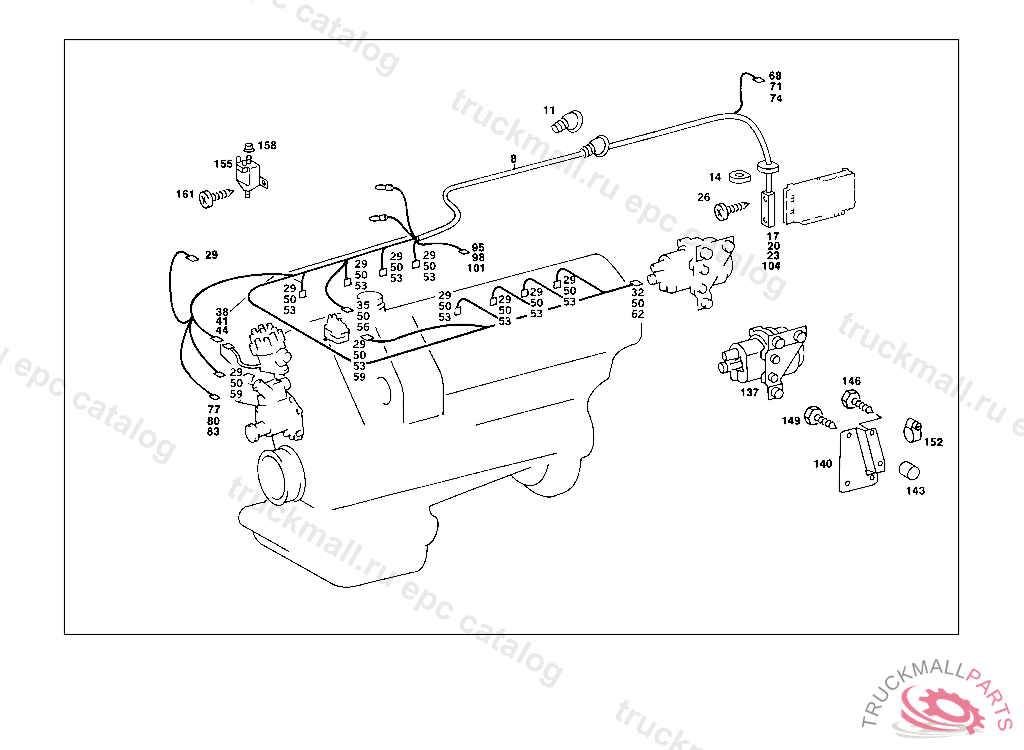

Поз.
Артикул
Описание
11
GROMMET
11
GROMMET ELECTRIC CABLE THRU FIRE WALL
14
GROMMET
17
PLUG 25-POLE
20
BRACKET
23
CABLE SHOE
26
SHEET METAL SCREW
29
PLUG BIPOLAR
32
PLUG PRESSURE SENSOR
35
PLUG ELECTRIC CABLE TO THROTTLE HOUSING
50
CABLE SHOE
56
BOOT CABLE HARNESS TO CONTACTOR
59
BOOT BIPOLAR
62
BOOT PRESSURE SENSOR
68
PLUG HOUSING
71
COVER
74
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
77
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER
77
PLUG , Replaced By: A0095454428, +002A0015453726, +001A0095454528
80
COVERTO 009 545 44 28
83
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
95
PLUG
95
PIN BUSHING HOUSING UNIPOLAR, FROM CHASSIS:107.023 000429 107.043 006834 107.044 004104
98
COVERTO 011 545 10 28
101
ROUND PIN BUSHING4 MM2
104
RAIL
137
SENDER UNIT
140
BRACKET PRESSURE SENSOR, 023 009850 024 007850 043 011508 044 021172 ALSO INSTALLED ON 021165,021170 023 010804 024 012079 ALSO INSTALLED ON 009359,011723,011972 043 012223 EXCEPT FOR 012101 044 029875 EXCEPT FOR 029640 022 002390 EXCEPT FOR 002285,002389,002390 042 001835 EXCEPT FOR 001736,001813,001823,001828,001834,001835.
143
SPACER TUBE , 023 009850 024 007850 043 011508 044 021172 ALSO INSTALLED ON 021165,021170 023 010804 024 012079 ALSO INSTALLED ON 009359,011723,011972 043 012223 EXCEPT FOR 012101 044 029875 EXCEPT FOR 029640 022 002390 EXCEPT FOR 002285,002389,002390 042 001835 EXCEPT FOR 001736,001813,001823,001828,001834,001835.
146
SHEET METAL SCREW BRACKET TO CAB FLOOR
149
SHEET METAL SCREW
149
SHEET METAL SCREW
