Поз.
Артикул
Описание

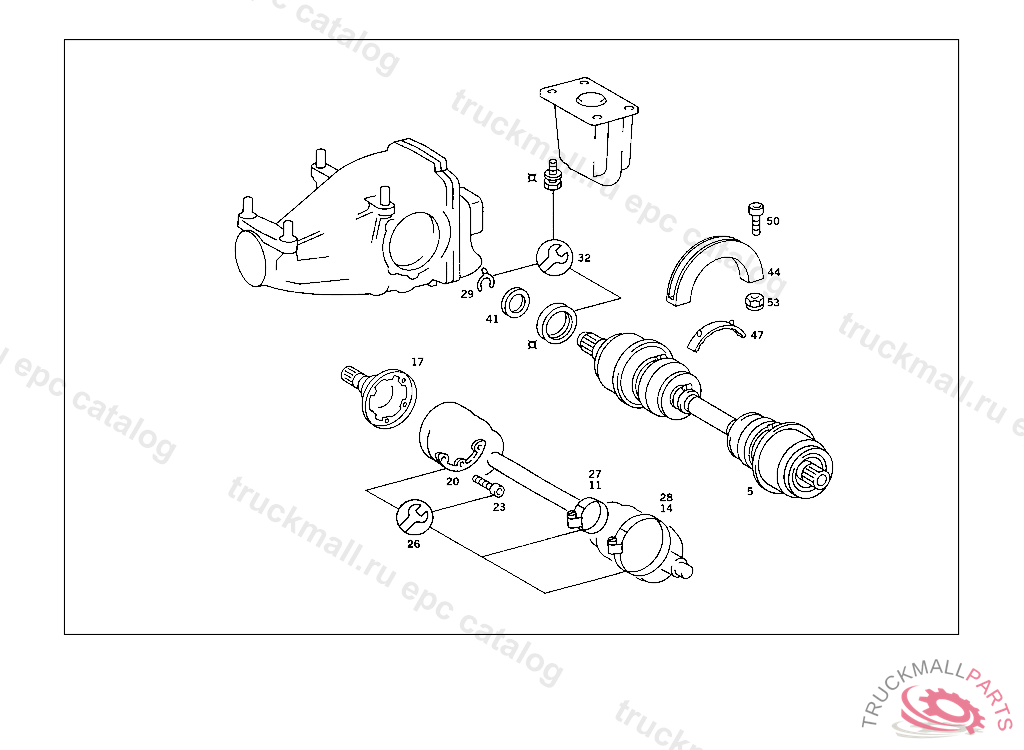

5
AXLE SHAFT
5
AXLE SHAFT , Replaced By: A1073501010
5
AXLE SHAFT , Replaced By: A1073501110
5
AXLE SHAFT , UNTIL PRODUCTION STOP 000,002,010,100,102,103,112 UP TO CHASSIS: 015 214130 005,017 009041 105,107,108,117,119 015486 110 412899 115 216690, Replaced By: A1073502710, +001A1153570353, +001A1153570675, +001N000931008240
5
AXLE SHAFT , UNTIL PRODUCTION STOP 000,002,010,100,102,103,112 UP TO CHASSIS: 015 214130 005,017 009041 105,107,108,117,119 015486 110 412899 115 216690, Replaced By: A1073502810, +001A1153570353, +001A1153570675, +001N000931008240
5
AXLE SHAFT , 024 006177-028272 044 017946-058171 DELIVER ADDITIONALLY:008 997 12 47 IN PLACE OF 002 997 67 47 FOR 023,024,043,044 FROM CHASSIS SEE FOOTN.7, Replaced By: A1073503410, +001A0149976247
5
AXLE SHAFT , 024 006177-028272 044 017946-058171 DELIVER ADDITIONALLY:008 997 12 47 IN PLACE OF 002 997 67 47 FOR 023,024,043,044 FROM CHASSIS SEE FOOTN.7, Replaced By: A1073503410, +001A0149976247
5
AXLE SHAFT , Replaced By: A1073504310, +001A0023506767
5
AXLE SHAFT , REAR AXLE HOUSING WITH DIFFERENTIAL AND WITH SIDE BEARING CAPS 003 103238 007 087550 086 007105 093 008991 102,103 240182 105 231728 183 015394 190 021956 193 002092 200 027294 280 000776 283 003631 RIGHT, Replaced By: A1073503310, +001A0149976247
5
AXLE SHAFT , WITH HOMOKINETIC JOINT, Replaced By: A1073505210, +002A1263500845, +004A1263570975, +012A0019901012
5
AXLE SHAFT , WITH HOMOKINETIC JOINT, Replaced By: A1233500410, +002A1243503145, +004A1243570175, +002A1243570289, +012A0009909212
5
AXLE SHAFT , UP TO REAR AXLE 107.044 156472,FROM REAR AXLE SEE STANDARD VERSION107.044 053399 WITH ANNULAR JOINT
5
AXLE SHAFT , Replaced By: A1073501010
5
AXLE SHAFT , Replaced By: A1073501110
11
LOOM TIE , Replaced By: A1249972790
11
LOOM TIE , Replaced By: A1249973490
11
LOOM TIE
14
LOOM TIE
14
LOOM TIE , Replaced By: A1249972290
14
LOOM TIE , Replaced By: A1249973090
14
LOOM TIE
17
FLANGE INSIDE, WITH ANNULAR JOINT
20
WASHER AXLE SHAFT TO INTERIOR FLANGE
23
SCREW AXLE SHAFT TO INTERIOR FLANGE, WITH ANNULAR JOINT
23
SCREW , Replaced By: A0019906912
26
REPAIR KIT , Replaced By: A1243500437
26
REPAIR KIT AXLE SHAFT,INSIDE BOOT, FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R) C 241286 FROM IDENT. NO. C 241286 TO C 258983 MEASURE THE WIDTH OF THE HOSE CLAMP. WITH A WIDTH OF 9 MM USE RANGE OF PARTS UP TO IDENT NO C 241286 WITH A WIDTH OF 7 MM USE RANGE OF PARTS FROM IDENT NO. C 241287
26
REPAIR KIT AXLE SHAFT WITH HOMOKINETIC JOINT, INSIDE BOOT
26
REPAIR KIT AXLE SHAFT WITH HOMOKINETIC JOINT, INSIDE BOOT, ON INSTALLATION OF TRANSVERSE CONTROL ARM ASSEMBLY,USE 4 OF 116 990 00 12 SCREWS IN PLACE OF 123 990 03 13
26
REPAIR KIT AXLE SHAFT WITH HOMOKINETIC JOINT, OUTSIDE BOOT
27
LOOM TIE
27
LOOM TIE , Replaced By: A1249972790
27
LOOM TIE , Replaced By: A1249973490
28
LOOM TIE , Replaced By: A1249972290
28
LOOM TIE , Replaced By: A1249973090
28
LOOM TIE
29
SNAP RING AXLE SHAFT TO AXLE HOUSING
32
REPAIR KIT AXLE SHAFT SEAL RING, REAR AXLE HOUSING WITH DIFFERENTIAL AND WITH SIDE BEARING CAPS 003 103238 007 087550 086 007105 093 008991 102,103 240182 105 231728 183 015394 190 021956 193 002092 200 027294 280 000776 283 003631
41
SPACER WASHER AS REQUIRED 3.1 MM, REAR AXLE HOUSING WITH DIFFERENTIAL AND WITH SIDE BEARING CAPS 003 103238 007 087550 086 007105 093 008991 102,103 240182 105 231728 183 015394 190 021956 193 002092 200 027294 280 000776 283 003631
41
SPACER WASHER AS REQUIRED 2.6 MM, REAR AXLE HOUSING WITH DIFFERENTIAL AND WITH SIDE BEARING CAPS 003 103238 007 087550 086 007105 093 008991 102,103 240182 105 231728 183 015394 190 021956 193 002092 200 027294 280 000776 283 003631
41
SPACER WASHER AS REQUIRED 2.7 MM, REAR AXLE HOUSING WITH DIFFERENTIAL AND WITH SIDE BEARING CAPS
41
SPACER WASHER AS REQUIRED 3.0 MM, REAR AXLE HOUSING WITH DIFFERENTIAL AND WITH SIDE BEARING CAPS 003 103238 007 087550 086 007105 093 008991 102,103 240182 105 231728 183 015394 190 021956 193 002092 200 027294 280 000776 283 003631
41
SPACER WASHER AS REQUIRED 2.8 MM, REAR AXLE HOUSING WITH DIFFERENTIAL AND WITH SIDE BEARING CAPS 003 103238 007 087550 086 007105 093 008991 102,103 240182 105 231728 183 015394 190 021956 193 002092 200 027294 280 000776 283 003631
41
SPACER WASHER AS REQUIRED 3.4 MM
41
SPACER WASHER AS REQUIRED 3.2 MM, REAR AXLE HOUSING WITH DIFFERENTIAL AND WITH SIDE BEARING CAPS 003 103238 007 087550 086 007105 093 008991 102,103 240182 105 231728 183 015394 190 021956 193 002092 200 027294 280 000776 283 003631
41
SPACER WASHER AS REQUIRED 3.3 MM, REAR AXLE HOUSING WITH DIFFERENTIAL AND WITH SIDE BEARING CAPS 003 103238 007 087550 086 007105 093 008991 102,103 240182 105 231728 183 015394 190 021956 193 002092 200 027294 280 000776 283 003631
41
SPACER WASHER AS REQUIRED 2.9 MM, REAR AXLE HOUSING WITH DIFFERENTIAL AND WITH SIDE BEARING CAPS 003 103238 007 087550 086 007105 093 008991 102,103 240182 105 231728 183 015394 190 021956 193 002092 200 027294 280 000776 283 003631
44
COUNTERBALANCE WEIGHT AS REQUIRED
47
RUBBER MOUNTING AS REQUIRED
50
SCREW
50
SCREW , Replaced By: N000000000190
53
NUT SWITCH TO FLOOR PLATE
