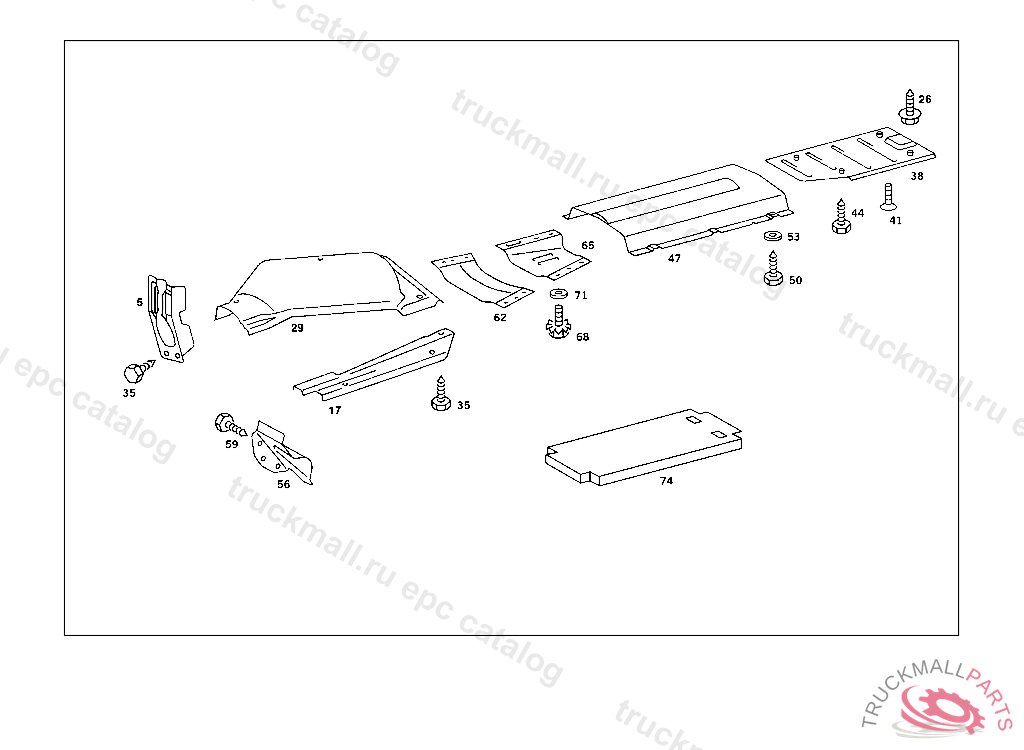

Поз.
Артикул
Описание
5
PROTECTIVE PLATE ON THE RIGHT OF FIRE WALL,FOR EXHAUST, UP TO CHASSIS NEW EQUIPMENT 9/79 022 007532 EXCEPT FOR 007464,007504,007521-007523,007525,007527,007529,007531. 023 013659 EXCEPT FOR 013407,013603,013654,013656-013658. 024 028363 EXCEPT FOR 027811,028114,028229,028231,028262,028279,028323,028331,028336-028340,028342-028350,028352-028361. 026 001224 EXCEPT FOR 001042,001142 042 006720 EXCEPT FOR 006341,006410,006449,006450,006710-006719. 043 014796 EXCEPT FOR 014472,014717 044 058394 EXCEPT FOR 057628,057973,057975,058211,058260,058280,058284,058289,058296,058297,058305,058324-058348,058350- 058369,058371-058392.
5
SCREENING ON THE RIGHT OF FIRE WALL,FOR EXHAUST, FROM CHASSIS NEW EQUIPMENT 9/79 022 007533 ALSO INSTALLED ON 007464,007504,007521-007523,007525,007527,007529,007531. 023 013660 ALSO INSTALLED ON 013407,013603,013654,013656-013658. 024 028364 ALSO INSTALLED ON 027811,028114,028229,028231,028262,028279,028323,028331,028336-028340,028342-028350,028352-028361. 026 001225 ALSO INSTALLED ON 001042,001142 042 006725 ALSO INSTALLED ON 006341,006410,006449,006450,006710-006719. 043 014797 ALSO INSTALLED ON 014472,014717 044 058395 ALSO INSTALLED ON 057628,057973,057975,058211,058260,058280,058284,058289,058296,058297,058305,058324-058348,058350- 058369,058371-058392.
17
PROTECTIVE PLATE MAIN FLOOR,FRONT LEFT
17
PROTECTIVE PLATE , Replaced By: A1074920630
17
PROTECTIVE PLATE MAIN FLOOR,FRONT RIGHT,6/85 A 332631 ALSO INSTALLED ON A 032633-A 032643,A 032645,A 032648,A 032649,A 032652,A 032653,A 032655,A 032657-A 032662,A 032666-A 032683,A 032687,A 032692, A 032694-A 032697,A 032700,A 032703-A 032705,A 032707,A 032708,A 032712,A 032720,A 032723,A 032741,A 032744,A 032745,A 032768, A 032778,A 032783,A 032792,A 032793,A 032815,A 032816,A 032829,A 032866,A 033043,A 033069,A 033441,A 033557,A 033579,A 033583, A 033655,A 033670,A 033705,A 033936,A 034162,A 034167,A 034172,A 034403-A 034405,A 034419,A 034427,A 034440,A 034452,A 034464- A 034466,A 034484,A 034501,A 034506,A 034509,A 034516,A 034520,A 034521,A 034539,A 034569,A 034617,A 034623,A 034637,A 034641, A 034644,A 034647,A 034667,A 034689,A 034749,A 034816,A 034831,A 034837,A 034855,A 034860,A 034867,A 034873,A 034889,A 034923, A 035020,A 037615.
26
COMBINATION BOLT
35
SCREW , Replaced By: N007976004217
38
PROTECTIVE PLATE , Replaced By: A1074920830
38
PROTECTIVE PLATE REAR END FLOOR,LEFT
41
SCREW
44
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
44
SCREW , Replaced By: N007976004217
47
SCREENING TUNNEL
47
PROTECTIVE PLATE TUNNEL, FROM CHASSIS 043 008595 ALSO INSTALLED ON 008585,008591 042 001947 ALSO INSTALLED ON 001959 043 012536 044 034128 EXCEPT FOR 034122,034123,034125,034126
50
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
53
WASHER AS REQUIRED 1.0 MM, ON BUSES UP TO CHASSIS 053510,ON TRUCKS UP TO CHASSIS 209647,FROM CHASSIS SEE 766.3
56
PROTECTIVE PLATE FIRE WALL,LEFT,FOR EXHAUST
59
SHEET METAL SCREW BRACKET TO CAB FLOOR, EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 5 180559
62
COVERING FRONT,BELOW TRANSMISSION
62
COVERING FRONT,BELOW TRANSMISSION, 022 008365 EXCEPT FOR 008313,008315-008330,008332-008339. 024 030198 EXCEPT FOR 030181-030185,030187-030189,030194,030196. 042 007869 EXCEPT FOR 007854,007856,007858,007861-007866,007868. 044 062339 EXCEPT FOR 062308-062310,062312-062314,062316-062338.
65
COVERING REAR,BELOW TRANSMISSION
68
SCREW TUNNEL,FRONT FLOOR M8X20
74
INSULATION UNDER TUNNEL STRIKER PLATE, FOR SUBSEQUENT INSTALLATION ONLY
