Поз.
Артикул
Описание
5

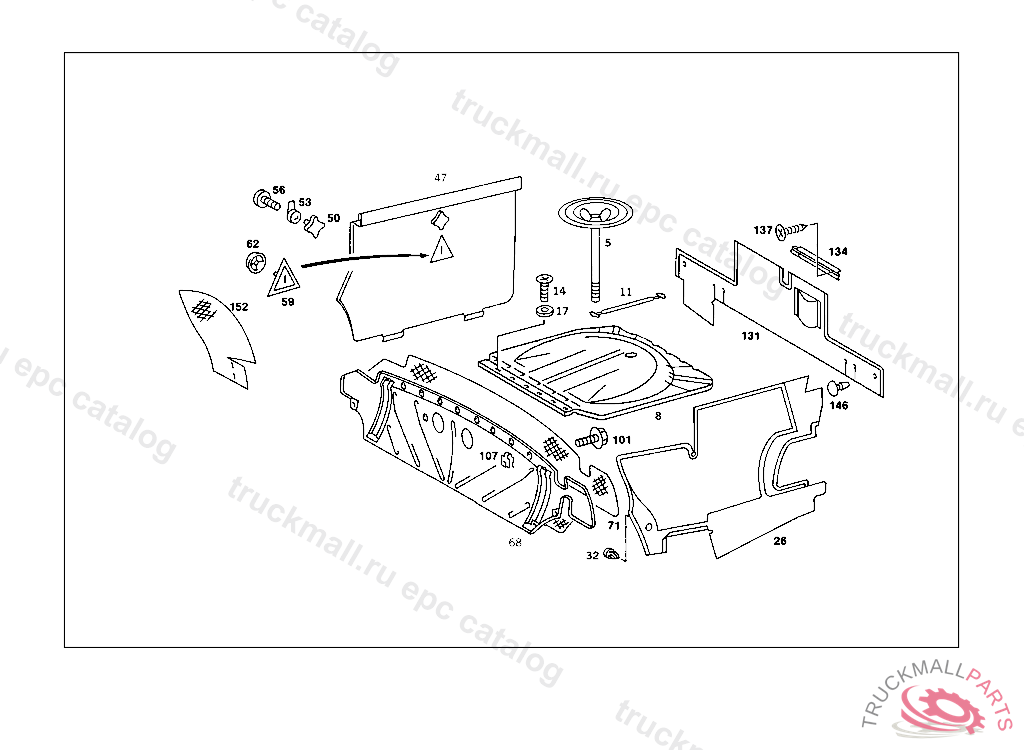

BRACKET SPARE WHEEL CARRIER, USED WITH ALUMINUM DISC WHEELS, 020,024,025,034,035,036,037 A 268601 039 A 243516
8
COVERING IN LUGGAGE COMPARTMENT FLOOR
11
BRACKET , FROM CHASSIS 020 111669 024,025 130251 028,029 050032 032,033 087684 036 005594
14
SCREW HANDLE TO LID
17
WASHER INSULATION TO FIRE WALL,INSIDE, 000,001,004,010 UP TO CHASSIS 099714,100,101,104,110 UP TO CHASSIS 210863
26
COVERING LUGGAGE COMPARTMENT,LEFT, VELOURS
32
CLIP , FROM CHASSIS: 010 000100 110 000057
47
COVERING , Replaced By: A1076904830
47
COVERING LUGGAGE COMPARTMENT,RIGHT, VELOURS
50
HANDLE , 022 004173 023 011999 024 019202 ALSO INSTALLED ON 019191-019193 042 003255 EXCEPT FOR 003257 043 013177 044 042525 EXCEPT FOR 042532,042538,042560
53
ANGLE , 022 004173 023 011999 024 019202 ALSO INSTALLED ON 019191-019193 042 003255 EXCEPT FOR 003257 043 013177 044 042525 EXCEPT FOR 042532,042538,042560
56
SCREW ELECTRIC CABLE TO PIPE BEND
56
SCREW CONTROL UNIT TO CAB
59
GUIDE SIGN WARNING TRIANGLE
62
LOCK
68
PARTITION PANEL
71
COVER ,NO.7145I NO.5088I NO.8312I NO.8423I NO.8424I NO.6117 AI NO.3117I NO.7145I I NO.6129 BI
101
SCREW , Replaced By: N910105006002
101
HEXAGON HEAD BOLT
107
NUT RETAINER , 042 005829 043 014352 044 054939
107
NUT RETAINER
131
COVER LUGGAGE COMPARTMENT,REAR, 107.022 FROM CHASSIS 004114 EXCEPT FOR SEE FOOTN.87,107.023 FROM CHASSIS 011971 EXCEPT FOR SEE FOOTN.88 AND FOOTN.85 DARK ANTHRACITE NO.7088,CODE 001,101,201,901,BLUE NO.5061,CODE 002,102,202,902,TOBACCO NO.8288,CODE 003,103,203,903AND FOOTN.92
134
RAIL LEFT, 022 001212 023 010577 024 011206 ALSO INSTALLED ON 011158,011172,011190,011192-011204 042 000989 043 012084 044 028345
134
RAIL RIGHT, 022 001212 023 010577 024 011206 ALSO INSTALLED ON 011158,011172,011190,011192-011204 042 000989 043 012084 044 028345
137
SHEET METAL SCREW
146
RIVET
152
COVER LUGGAGE COMPARTMENT,INSIDE RIGHT, VELOURS
