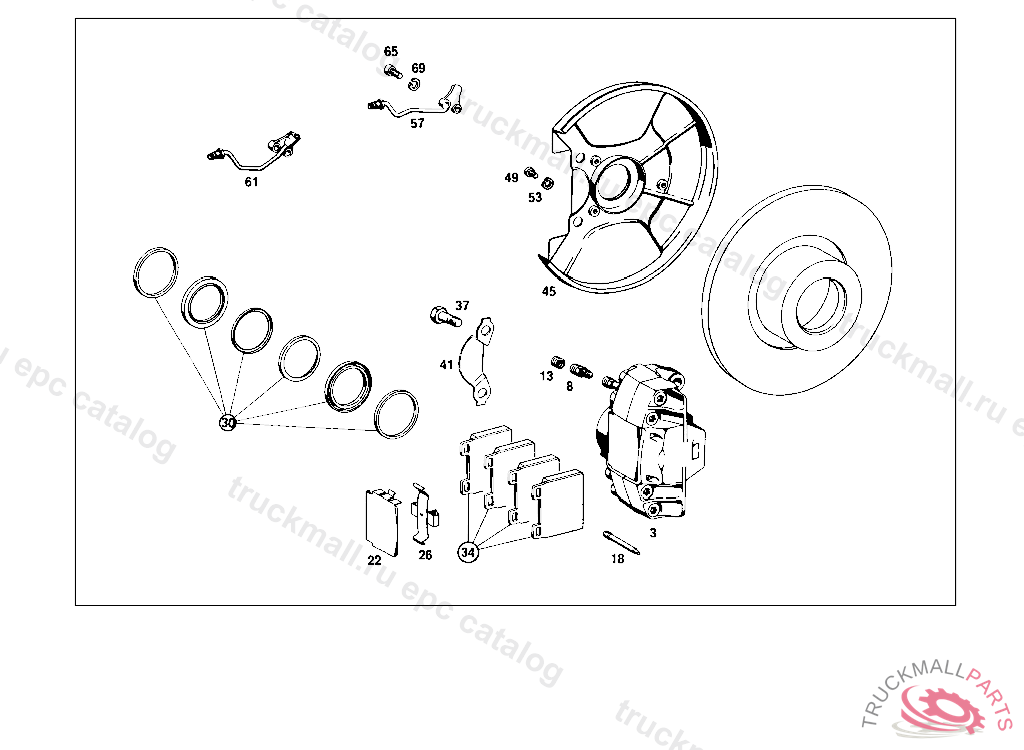

Поз.
Артикул
Описание
3
CALIPER LEFT,LESS PAD ASSEMBLIES, TEVES, IN PAIRS OPTIONAL W/000 421 73 98,BENDIX, FROM CHASSIS: 010 094997 110 244251
8
BLEEDER VALVE
13
PROTECTIVE CAP ,5 962906
13
PROTECTIVE CAP , Replaced By: A0004217187
18
DOWEL PIN TEVES
22
PROTECTIVE PLATE
26
SPRING , 005,007,008,015,017 203606 011 014721
30
REPAIR KIT MAKE"TEVES"
30
REPAIR KIT BENDIX, 005,007,008,015,017 203606 011 014721
34
TS BRAKE PAD , Replaced By: A0014207720
34
BRAKE PAD. TS BRAKE PAD PARTS KIT
37
SCREW
41
LOCK
45
PROTECTIVE PLATE LEFT, 016 UP TO CHASSIS 075175, 018,019 UP TO CHASSIS 081818
49
SCREW OIL PIPE TO SLEEVE VALVE
53
LOCK WASHER
57
LINE LEFT
61
LINE RIGHT FROM WHEEL CYLINDER TO CONNECTOR
65
SCREW CONTROL SHAFT TO ENGINE
65
SCREW , Replaced By: N000912006170
69
LOCK WASHER
999
BRAKE ANCHOR PLATE , 012 UP TO CHASSIS 040645, 014 UP TO CHASSIS 032395, Replaced By: A1084200117, +006A1083570071, +002A1084230092, +006N006797008120
999
CALIPER , 002838, Replaced By: A0004204683, +001A0004207120
999
CALIPER , 012 UP TO CHASSIS 054902, 014 UP TO CHASSIS 043167, Replaced By: A0004204683, +001A0004207120
999
CALIPER , 043 FROM CHASSIS 002839, Replaced By: A0004204683, +001A0004207120
999
CALIPER ,043,044 002839, Replaced By: A0004204783, +001A0005862242
999
BLEEDER VALVEBENDIX
999
CALIPER RIGHT
999
LOCK , Replaced By: A0004210573
999
LOCK , Replaced By: A0004210573
999
PROTECTIVE PLATE
999
LOCKBENDIX
999
SPRING
999
PISTON , 005,007,008,015,017 203606 011 014721
999
PISTON
999
SPRING , 088167
999
SPRING , 012 UP TO CHASSIS 040645, 014 UP TO CHASSIS 032395
999
RETAINING SPRING BRAKE HOSE TO BRACKET
999
STRAINER
999
FILLER CAP BUTTRESS THREAD
999
HOLLOW SCREW
999
SEAL RING
999
SEAL RINGBENDIX
999
REPAIR KIT COMPRESSED AIR CYLINDER TO 001 431 72 14,BOSCH,4 600879-4 628861
999
LOCKING CAP
999
PLUG
999
DOWEL PIN , Replaced By: A0009912660, +001A0004210573
999
DOWEL PINBENDIX
999
CLAMP
999
CALIPER , Replaced By: A0014210298, +001A0004206720
999
CALIPER , Replaced By: A0014210398, +001A0004206720
999
CALIPER , 000,001,004,010,016 FROM CHASSIS 189499,002,003,005,011,017 FROM CHASSIS 033000,100,101,104,110,116 FROM CHASSIS 355414, Replaced By: A0014218198, +001A0004206720
999
CALIPER , 000,001,004,010,016 FROM CHASSIS 189499,002,003,005,011,017 FROM CHASSIS 033000,100,101,104,110,116 FROM CHASSIS 355414, Replaced By: A0014218298, +001A0004206720
999
CALIPER LEFT,BENDIX,LESS LINING, IN PAIRS OPTIONAL WITH
999
CALIPER RIGHT,BENDIX,LESS LINING, IN PAIRS OPTIONAL WITH
999
CALIPER RIGHT,TEVES,LESS LINING, IN PAIRS OPTIONAL WITH, 000,001,004,010,016 FROM CHASSIS 189499,002,003,005,011,017 FROM CHASSIS 033000,100,101,104,110,116 FROM CHASSIS 355414
999
BRAKE MASTER CYLINDER "TEVES", 012 UP TO CHASSIS 058443 EXCEPT FOR, SEE FOOTNOTE 46, 014 UP TO CHASSIS 045293 EXCEPT FOR, SEE FOOTNOTE 47
999
RESERVOIR TEVES, THREE-CHAMBER, FROM CHASSIS: 017 009972 117 017586 UP TO CHASSIS: 017 062832, FEDERAL, EXCEPT FOR: 059499,060650,061519,061527,062799. 017 062926, CALIFORNIA, EXCEPT FOR 048629,060112,062772 114 029141, EXCEPT FOR: 002250,003131,016950,026317,026334,026513,027268,027269,027272,027281,027513,027518,027822,027824, 028251,029032,029113,029121,029128. 117 10/50 102742, EXCEPT FOR: 098668,099672,100535,100850,100851,101663,102380,102507,102622,102708,102717. 117 12/52 102758, EXCEPT FOR: 088215,099223,099235,099370,099371,099673,100542,101165,101171,101246,102475,102643,102651,102724.
999
SENDER UNIT TEVES, REAR SUPPLY CHAMBER, UP TO CHASSIS: 005,017 009971 015 215193 105,107,108,117,119 017585 110 413856 115 218099
999
BRAKE MASTER CYLINDERBENDIX
999
LEVER , Replaced By: A1145860142, +001A1154202785
999
PROTECTIVE PLATE RIGHT
999
BRAKE CABLE , Replaced By: A1084200785, +001A1145860142
999
BRAKE CABLE , Replaced By: A1084200885, +001A1145860142
999
CYLINDER PIN. PIN
999
CONNECTOR , Replaced By: A1145860142, +001A1154202785
999
PIN , Replaced By: A1145860142, +001A1154202785
999
CUP LEFT BRAKE CABLE TO AXLE TUBE,043 002838
999
CUP RIGHT, MIND RANGE OF DELIVERY
999
CUP RIGHT BRAKE CABLE TO REAR AXLE TUBE BEARING FLANGE, 012 FROM CHASSIS 040646, 014 FROM CHASSIS 032396
999
NUT , UP TO CHASSIS 002863 EXCEPT FOR 002123,002193,002327,002402,002539,002546,002726,002739,002744,002748,002757,002760,002763,002 797,002862
999
CLAMP FORKED SUPPORT,TOP
999
SCREW , UP TO CHASSIS: 023 101126 072 103733 073 106943, Replaced By: A1152950172, +001N000137008202, +001N000933008131
999
GUIDE , 000,001,010 FROM CHASSIS,ALSO INSTALLED ON,SEE FOOTN.2,100,101,110 FROM CHASSIS 099642,ALSO INSTALLED ON,SEE FOOTN.3,EXCEPT FOR 099892
999
FLANGE , Replaced By: A1084300145, +001A1084310080
999
LINE , 000,001,010 FROM CHASSIS
999
SHIM
999
SHACKLE
999
SCREW LINES UNDER FUEL TANK
999
LINE FROM VALVE TO RIGHT REAR WHEEL 3450 MM
999
COTTER PIN
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
COTTER PIN BRAKE SHOE TO BRAKE ANCHOR,4 138316 FROM IDENT NO. 4 138317 SEE UNIT MICROFICHE,MODEL 730.702
999
COTTER PIN LEVER TO SUPPORT
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
LOCK WASHER ANGLE DRIVE TO BRACKET
999
SPRING WASHER , Replaced By: N000137008212
999
SCREW , Replaced By: N000912006064
999
SCREW
999
SCREW
999
SCREW COVER PLATE TO BRACKET
999
NUT BALL PIVOT TO LEVER
999
NUT
999
NUT
999
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
999
SHEET METAL SCREW BRACKET TO CAB FLOOR, EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 5 180559
999
SCREW PUMP TO BRACKET
999
LOOM TIE HAND PUMP
999
LOOM TIE ALTERNATOR BREATHING
999
STRAP165 MM, UP TO CHASSIS 772045 EXCEPT FOR:500000-599999 ORDER BY THE METER
999
STRAP AIR HOSE TO ELBOW AND TO INTAKE CASE 570 MM, ORDER BY THE METER
999
CLAMP LEAK LINE TO CONNECTOR AT ENGINE
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
