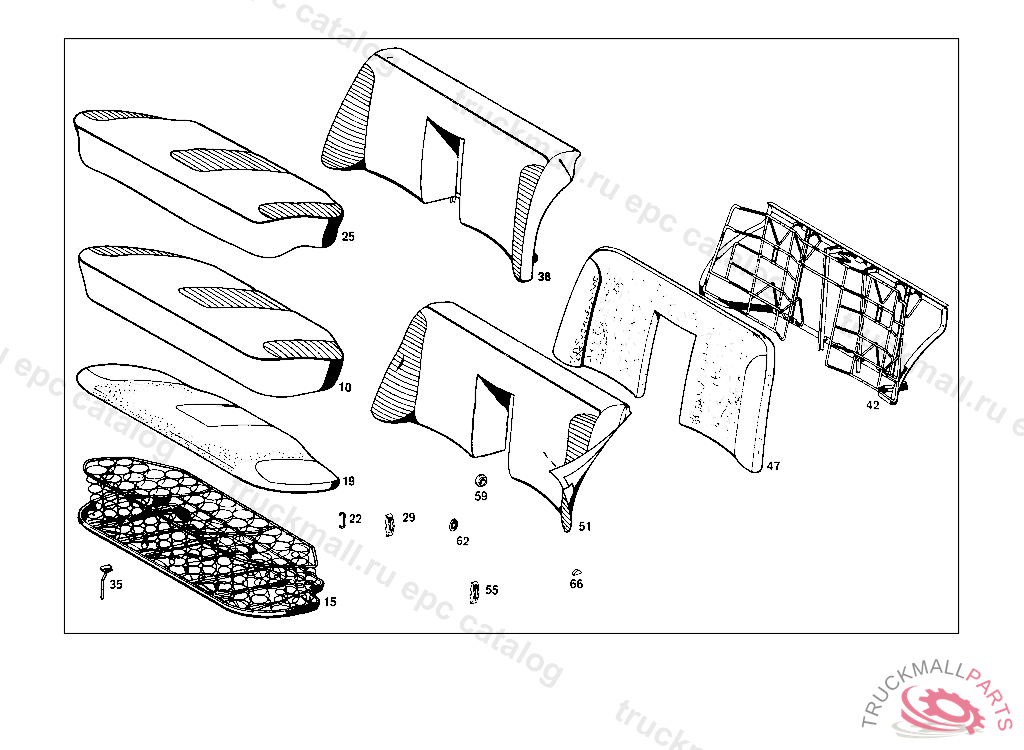

Поз.
Артикул
Описание
10
REAR SEAT CUSHION , STATE COLOR NUMBER WHEN ORDERING
15
CUSHION FRAME , FROM CHASSIS:108.012 057777 108.014 045121 108.015 002600
15
CUSHION FRAME , Replaced By: A1099200122
19
PAD
22
CLIP COVER TO PAD
25
COVER , STATE COLOR NUMBER WHEN ORDERING
29
CLIP
38
BACKREST , STATE COLOR NUMBER WHEN ORDERING
47
PAD
51
COVER , STATE COLOR NUMBER WHEN ORDERING
55
CLIP
59
SUPPORT
62
WASHER
66
BUFFER REAR SEAT BENCH BACKREST FRAME MOUNTING, 016 UP TO CHASSIS 043198,018 UP TO CHASSIS 044203,019 UP TO CHASSIS 044488
999
BRACKET REAR SEAT CUSHION TO FLOOR, 010 FROM CHASSIS 162209, 011 FROM CHASSIS 017209, 110 FROM CHASSIS 289680
999
CUSHION FRAME , 016 UP TO CHASSIS 087302, 057,058 UP TO CHASSIS 008102 018 UP TO CHASSIS 092962, EXCEPT FOR 092137,092612,092632,092640,092695,092907,092914,092922-924, Replaced By: A1089200322
999
CUSHION FRAME WITH SPRING CORE
999
BACKREST FRAME , 012 FROM CHASSIS 008417, 014 FROM CHASSIS 005864, 015 FROM CHASSIS 000722
999
BACKREST LESS COVER , 018 UP TO CHASSIS 004920 EXCEPT FOR 004913, 004914, 056 UP TO CHASSIS 002604 EXCEPT FOR, SEE FOOTNOTE 20
999
SEAT CUSHION LESS COVER
999
SEAT CUSHION LESS COVER , 018 FROM CHASSIS 004921 ALSO INSTALLED ON 004913, 004914, 056 FROM CHASSIS 002605 ALSO INSTALLED ON, SEE FOOTNOTE 20
999
BACKREST LESS COVER , 018 FROM CHASSIS 004921 ALSO INSTALLED ON 004913, 004914, 056 FROM CHASSIS 002605 ALSO INSTALLED ON, SEE FOOTNOTE 20
999
BACKREST FRAME
999
REAR SEAT CUSHION , Replaced By: A1099201420
999
BACKREST , STATE COLOR AND CHASSIS NO. WHEN ORDERING 018 FROM CHASSIS 004921 ALSO INSTALLED ON 004913, 004914, 056 FROM CHASSIS 002605 ALSO INSTALLED ON, SEE FOOTNOTE 20
999
REAR SEAT CUSHION , STATE COLOR NUMBER WHEN ORDERING
999
COVER , STATE COLOR AND CHASSIS NO. WHEN ORDERING 018 FROM CHASSIS 004921 ALSO INSTALLED ON 004913, 004914, 056 FROM CHASSIS 002605 ALSO INSTALLED ON, SEE FOOTNOTE 20
999
COVER , STATE COLOR AND CHASSIS NO. WHEN ORDERING 018 FROM CHASSIS 004921 ALSO INSTALLED ON 004913, 004914, 056 FROM CHASSIS 002605 ALSO INSTALLED ON, SEE FOOTNOTE 20
999
PAD , Replaced By: A1099240414
999
PAD
999
PAD , Replaced By: A1099240114
999
NUT BALL PIVOT TO LEVER
999
LOCK PLATE
