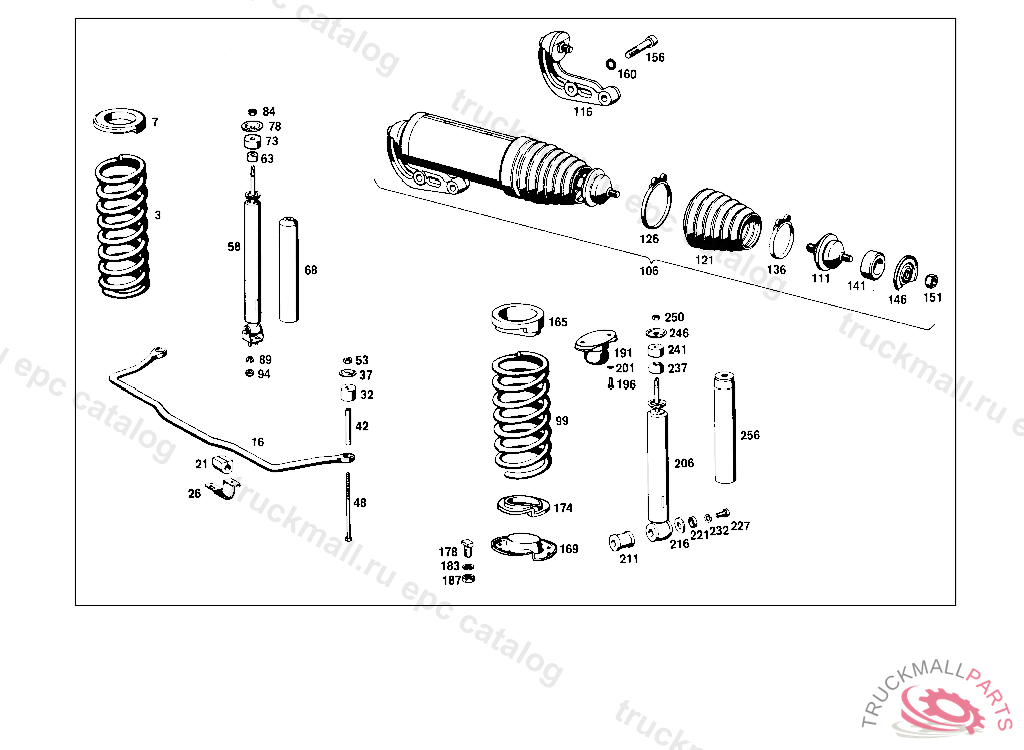

Поз.
Артикул
Описание
3
FRONT SPRING
7
RUBBER MOUNTING 20.0 MM
16
TORSION BAR21.5 MM, 010 FROM CHASSIS 023661 ALSO INSTALLED ON,SEE FOOTNOTE 18,012 FROM CHASSIS 049856 ALSO INSTALLED ON,SEE FOOTNOTE 19
21
RUBBER MOUNTING TORSION BAR TO FRAME FLOOR UNIT, 010 FROM CHASSIS 023661 ALSO INSTALLED ON,SEE FOOTNOTE 18,012 FROM CHASSIS 049856 ALSO INSTALLED ON,SEE FOOTNOTE 19
26
BRACKET
32
RUBBER BUFFER
37
RETAINER
42
SPACER TUBE
48
SCREW
53
NUT BRACKET TO SIDE MEMBER,303382
58
SHOCK ABSORBER
58
SHOCK ABSORBER
63
RUBBER MOUNTING
68
DUST CAP
73
RUBBER BUFFER
78
RETAINER , Replaced By: A1233230367
78
HOUSING , Replaced By: A1233230367
84
NUT , Replaced By: N308673010000
84
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
89
LOCK WASHER SHOCK ABSORBER TO LOWER CONTROL ARM
94
NUT
94
NUT , Replaced By: N304032008006
99
REAR SPRING DIA.,15.90 MM, ON SPECIAL REQUEST, HYDROPNEUMATIC COMPENSATING SPRING
106
HYD.PNEUM.SPRING LEG ASSY , ON SPECIAL REQUEST, HYDROPNEUMATIC COMPENSATING SPRING
106
HYD.PNEUM.SPRING LEG ASSY , Replaced By: A1113200399
111
BALL JOINT LEFT, ON SPECIAL REQUEST, HYDROPNEUMATIC COMPENSATING SPRING
116
BALL JOINT
121
BOOT , 000,001,004,010,016 UP TO CHASSIS 134951, 100,101,104,110,116 UP TO CHASSIS 233248, 002,003,005,011,017 UP TO CHASSIS 001795, Replaced By: A1103290392, +001N900288062000
121
BOOT , 000,001,004,010,016 FROM CHASSIS 134952, 100,101,104,110,116 FROM CHASSIS 233249, 002,003,005,011,017 FROM CHASSIS 001796
126
LOCK WASHER
136
LOOM TIE , 000,001,004,010,016 UP TO CHASSIS 134951, 100,101,104,110,116 UP TO CHASSIS 233248, 002,003,005,011,017 UP TO CHASSIS 001795, Replaced By: N900288062014, +001A1103290392
141
BEARING RING
146
WASHER
151
NUT
156
SCREW , 010,011,016,017,110,116 ON SPECIAL REQUEST, HYDROPNEUMATIC COMPENSARING SPRING, ON SPECIAL REQUEST, H.D. SPRINGS AND HYDROPNEU MATIC COMPENSATING SPRING
160
LOCK WASHER FITTING TO BRACKET
165
BUSHING
169
SPRING CASE
174
BUSHING
178
SCREW
183
LOCK WASHER TAIL LAMP TO BRACKET
187
NUT
187
NUT , Replaced By: N304032008006
191
RUBBER BUFFER , 000,001 UP TO CHASSIS 018992, 100,101 UP TO CHASSIS 026467
196
SCREW
201
SPRING WASHER RUBBER BUFFERS TO BODY FLOOR
206
SHOCK ABSORBER REAR
211
RUBBER MOUNTING
216
WASHER
221
RETAINER
227
SCREW , Replaced By: N304017010028
227
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
232
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
237
RUBBER MOUNTING BOTTOM
241
RUBBER BUFFER
246
RETAINER , Replaced By: A1233230367
250
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
250
NUT , Replaced By: N308673010000
256
DUST CAP
999
CLAMP , Replaced By: N000000000671
999
CLAMP AT SHIFTING TUBE
999
NUT , Replaced By: N308673010000
999
SCREW , 000,001,004,010,016 UP TO CHASSIS 134951, 100,101,104,110,116 UP TO CHASSIS 233248, 002,003,005,011,017 UP TO CHASSIS 001795
999
CLAMP
999
RUBBER MOUNTING 32.5 MM
999
RUBBER MOUNTING 30.0 MM
999
RUBBER MOUNTING 27.5 MM
999
RUBBER MOUNTING 25.0 MM
999
RUBBER MOUNTING 22.5 MM
999
HYD.PNEUM.SPRING LEG ASSY
999
SHOCK ABSORBER , 001 SPECIAL BODIES 000 AMBULANCE
999
REAR SPRING
999
REAR SPRING
999
REAR SPRING
999
FRONT SPRING
999
REPAIR KIT
999
REPAIR KIT , 010 ON SPECIAL REQUEST, HARDER SPRINGS 001 SPECIAL BODIES 000 AMBULANCE
999
REPAIR KIT
999
BUSHING
999
FRONT SPRING
999
BALL JOINT LEFT, 010,011,016,017,110,116 ON SPECIAL REQUEST, H.D. SPRINGS AND HYDROPNEUMATIC COMPENSATING SPRING
