Поз.
Артикул
Описание

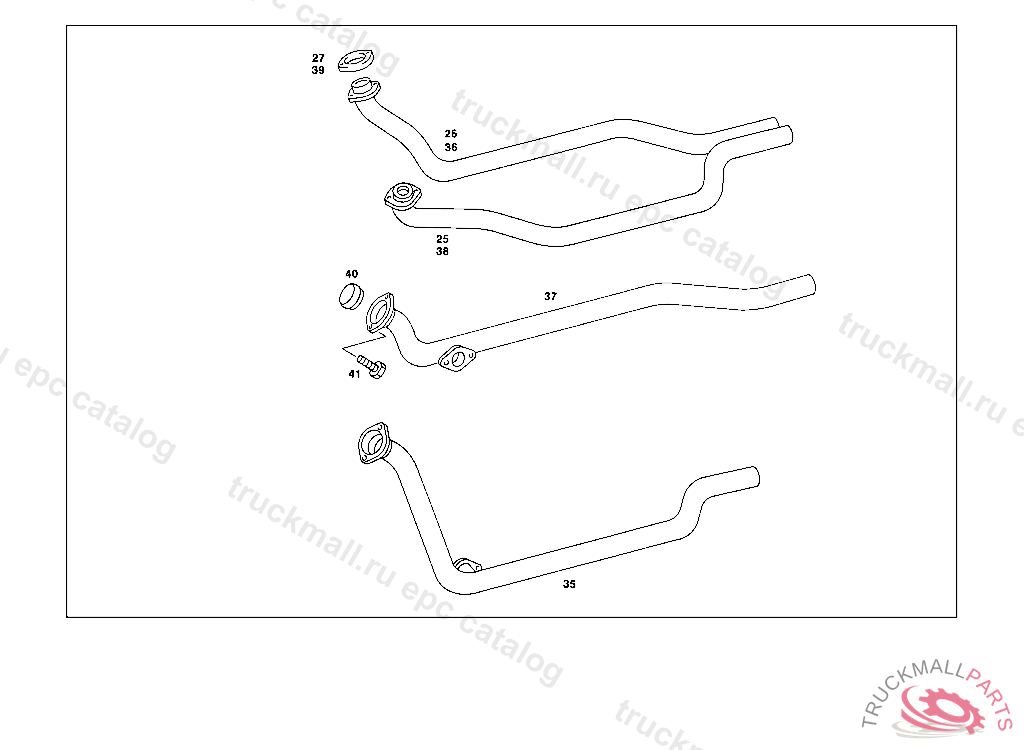

25
EXHAUST PIPE LEFT,107.024 22 024311,107.044 22 051520,116.032,033 12 086452,22 086904 FOR THE NEW PART NO.,SEE STANDARD VERSION
26
EXHAUST PIPE RIGHT
27
FLANGE , FROM IDENT NO. 003 038515 ALSO INSTALLED ON 038269,038362,038363.
27
FLANGE , 003 114540 007 106557 102,103 362783 105 291289, Replaced By: A1264920745, +001N000931008327
35
EXHAUST PIPE FRONT LEFT,107.024 22 024311,107.044 22 051520,116.032,033 12 086452,22 086904 FOR THE NEW PART NO.,SEE STANDARD VERSION
35
EXHAUST PIPE LEFT,107.024 22 024311,107.044 22 051520,116.032,033 12 086452,22 086904 FOR THE NEW PART NO.,SEE STANDARD VERSION
36
EXHAUST PIPE FRONT LEFT,107.024 22 024311,107.044 22 051520,116.032,033 12 086452,22 086904 FOR THE NEW PART NO.,SEE STANDARD VERSION
37
EXHAUST PIPE RIGHT,107.024 22 024311,107.044 22 051520,116.032,033 12 086452,22 086904 FOR THE NEW PART NO.,SEE STANDARD VERSION
37
EXHAUST PIPE FRONT RIGHT,107.024 22 024311,107.044 22 051520,116.032,033 12 086452,22 086904 FOR THE NEW PART NO.,SEE STANDARD VERSION
38
EXHAUST PIPE FRONT RIGHT,107.024 22 024311,107.044 22 051520,116.032,033 12 086452,22 086904 FOR THE NEW PART NO.,SEE STANDARD VERSION
39
FLANGE , FROM IDENT NO. 003 038515 ALSO INSTALLED ON 038269,038362,038363.
39
FLANGE , 003 114540 007 106557 102,103 362783 105 291289, Replaced By: A1264920745, +001N000931008327
40
CONNECTOR , 102,103 111281 105 134919 183 003838 190 004655 102,103 010751 105 017638
41
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
41
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
999
SCREW DISTRIBUTOR TO FRAME
999
RUBBER BUFFER IN FRONT OF,AND BEHIND,POSTERIOR MUFFLER
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE CYLINDERS NOS.4-6
999
EXHAUST PIPE CYLINDERS NOS.1-3, 003 078976 086 003333 EXCEPT FOR 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332. FROM IDENT NO. 003 038515 ALSO INSTALLED ON 038269,038362,038363.
999
EXHAUST PIPE
999
EXHAUST MUFFLER WITH PIPE , UP TO IDENT NO. 003 038514 EXCEPT FOR 038269,038362,038363.
999
EXHAUST MUFFLER WITH PIPE , Replaced By: A1234907815
999
EXHAUST MUFFLER WITH PIPE
999
EXHAUST MUFFLER WITH PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST MUFFLER WITH PIPE , Replaced By: A1234902915
999
EXHAUST PIPE
999
FITTING
999
EXHAUST MUFFLER WITH PIPE , Replaced By: A1234903215
999
EXHAUST MUFFLER WITH PIPE
999
SPRING , 120 023429 123 010750 126 011171 130 017637
999
SPACER TUBE , 120 023429 123 010750 126 011171 130 017637
999
CLAMP
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
CLAMP , Replaced By: A1124900341
999
SPACER TUBE , Replaced By: A0004920153
999
FLANGE GASKET
999
DAMPING PAD , Replaced By: A1164920182
999
BRACKET
999
FLANGE , 003 114540 007 106557 102,103 362783 105 291289, Replaced By: A1264920745, +001N000931008327
999
SEAL RING
999
INSULATION
999
SPACER TUBE MAIN MUFFLER REAR SUSPENSION, FROM CHASSIS 116.024,025 113919 ALSO INSTALLED ON 113701,113704,113706,113711,113713,113714,113717,113718,113721,113728-113732,113734,113737-113740, 113742,113745,113747,113748,113751,113752,113754-113783,113785-113791,113793-113835,113838-113842, 113845,113846,113848,113849,113853,113854,113857,113859,113860,113862-113864,113868-113870,113874, 113876-113883,113886,113889-113891,113893-113904,113906-113915,113917.
999
SPACER TUBE
