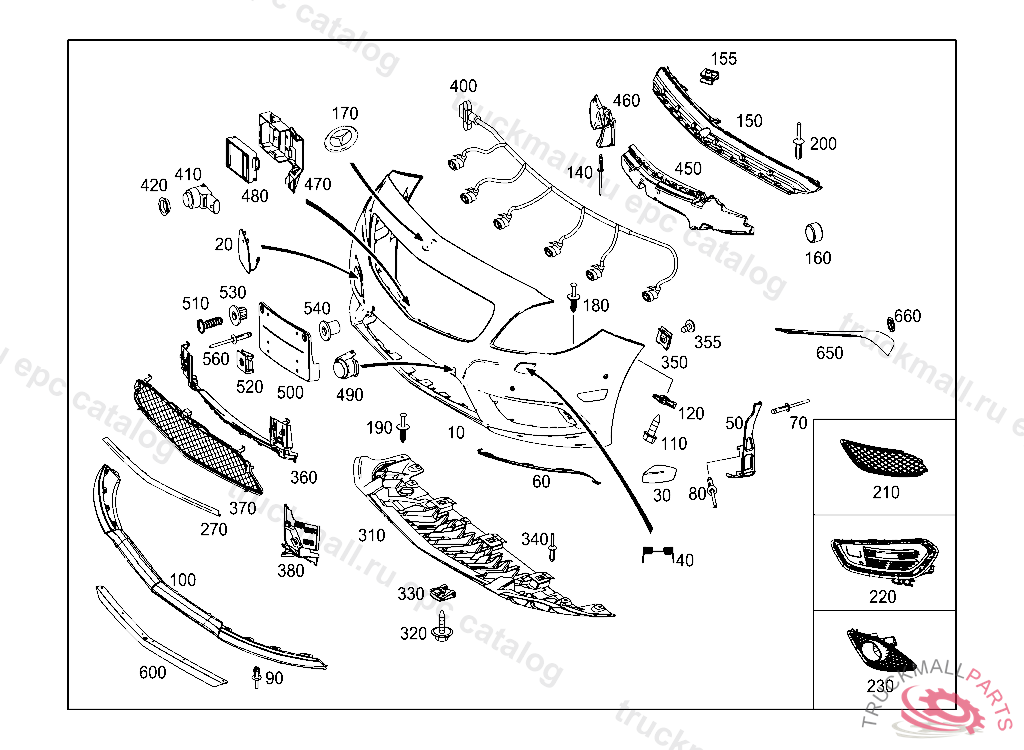

Поз.
Артикул
Описание
10
TRIM BUMPER , TO BE PAINTED PRIOR TO INSTALLATION 9999QFT117L9000 COLORLESS
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT117L9000 COLORLESS
10
TRIM BUMPER , TO BE PAINTED PRIOR TO INSTALLATION 9999QFT117L9000 COLORLESS
10
TRIM BUMPER , TO BE PAINTED PRIOR TO INSTALLATION 9999QFT117L9000 COLORLESS
10
TRIM BUMPER , TO BE PAINTED PRIOR TO INSTALLATION 9999QFT117L9000 COLORLESS
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT117L9000 COLORLESS
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT117L9000 COLORLESS
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT117L9000 COLORLESS
20
COVER TOWING EYE TOWING EYE, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT117L9000 COLORLESS
30
COVER BUMPER AREA LEFT, HEADLAMP CLEANING DEVICE
30
COVER BUMPER AREA RIGHT,HEADLAMP CLEANING DEVICE, 9999QFT117L9000 COLORLESS
30
COVER BUMPER AREA RIGHT,HEADLAMP CLEANING DEVICE
30
COVER BUMPER AREA LEFT, HEADLAMP CLEANING DEVICE, 9999QFT117L9000 COLORLESS
40
SPRING ELEMENT
50
MOUNTING RAIL RIGHT
50
MOUNTING RAIL LEFT
60
COVER BUMPER AREA LEFT
60
COVER BUMPER AREA RIGHT
70
BLIND RIVET AT COVERING
80
BLIND RIVET AT COVERING
90
EXPANSION RIVET ORNAMENTAL COVER TO BUMPER
100
ORNAMENTAL MOLDING BOTTOM
100
ORNAMENTAL MOLDING BOTTOM
100
ORNAMENTAL MOLDING BOTTOM
110
TAPPING SCREW
120
LOCK NUT BUMPER, BOTTOM SECTION 0,5-2,5MM
140
BLIND RIVET AT COVERING
150
BASIC MOUNTING FOR BUMPER
155
LOCK NUT. SPRING NUT MOUNTING PARTS
160
ABSORBER
170
COMPANY SIGN AT BUMPER
190
RIVET COVERING TO SIDE MEMBER
200
RIVET
210
COVER BUMPER AREA LEFT
210
COVER BUMPER AREA RIGHT
210
COVER BUMPER AREA LEFT
210
COVER BUMPER AREA RIGHT
220
COVER BUMPER AREA BRACKET, LEFT TO COVER
220
AIR DUCT RIGHT
230
COVER BUMPER AREA LEFT
230
COVER BUMPER AREA RIGHT
230
COVER BUMPER AREA RIGHT
230
COVER BUMPER AREA LEFT
270
COVER BUMPER AREA
310
SUPPORT BUMPER COVER AT BOTTOM
320
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
330
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
340
RIVET
350
SPRING NUT FRONT BUMPER TO CROSS MEMBER, N 20130723
355
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
370
COVER BUMPER AREA GRILLE CENTER
370
COVER BUMPER AREA CENTRAL
370
COVER BUMPER AREA CENTRAL
370
COVER BUMPER AREA CENTRAL
380
COVER BUMPER AREA RIGHT
380
COVER BUMPER AREA LEFT
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
410
DISTANCE SENSOR OUTSIDE LEFT AND RIGHT, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
410
DISTANCE SENSOR INSIDE LEFT AND RIGHT, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
420
DECOUPLING RING PARKTRONIC SYSTEM
450
IMPACT ABSORBER BUMPER FRONT CENTER
450
IMPACT ABSORBER BUMPER FRONT CENTER
450
IMPACT ABSORBER BUMPER FRONT CENTER
450
IMPACT ABSORBER BUMPER FRONT CENTER
460
IMPACT ABSORBER BUMPER FRONT CENTER
470
FIXTURE FRONT
480
RADAR SENSOR , PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
480
RADAR SENSOR , PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
480
RADAR SENSOR , PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE, Replaced By: A0009055103
490
COVER MOLDING PARKING ASSIST SENSOR
500
LICENSE PLATE MOLDING
500
LICENSE PLATE MOLDING
500
LICENSE PLATE MOLDING
500
LICENSE PLATE MOLDING
500
LICENSE PLATE MOLDING
500
LICENSE PLATE MOLDING
500
LICENSE PLATE MOLDING
500
LICENSE PLATE MOLDING
500
LICENSE PLATE MOLDING
500
LICENSE PLATE MOLDING
500
LICENSE PLATE MOLDING
510
SCREW COVERING TO FRONT BUMPER
520
NUT RETAINER. LOCK LEFT AND RIGHT SPOILER AT CENTER PIECE
530
CLIP FASTENER. LOCK PROTECTIVE GRILLE ON CONDENSER BRACKET
540
NUT. RIVETED NUT PAN HEAD WITH CLAMPING RANGE: M6X2.4-4.5,V 207570
560
BLIND RIVET AT COVERING
600
FRONT SPOILER
650
SIDE SPOILER LEFT
650
SIDE SPOILER RIGHT
660
LOCK. CLIP LICENSE PLATE FLAP
