Поз.
Артикул
Описание

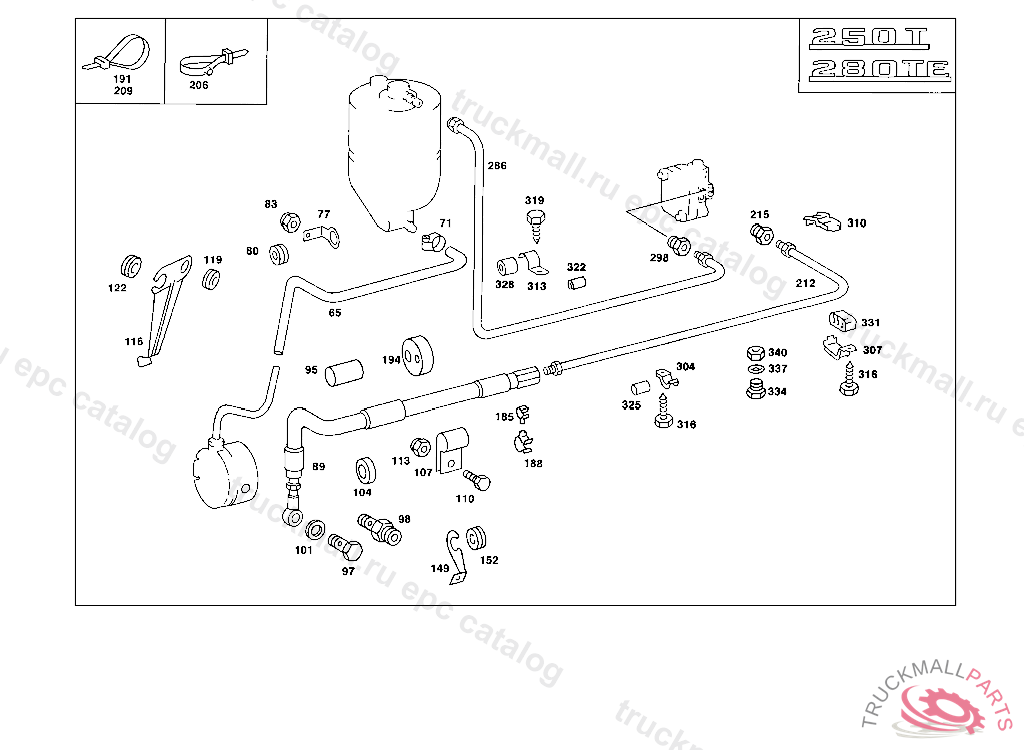

65
HOSE FROM OIL RESERVOIR TO OIL PIPE AT OIL PUMP 350 MM, ORDER BY THE METER
71
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
71
CLAMP , Replaced By: N000000000665
77
BRACKET OIL CONNECTION HOSE TO OIL RESERVOIR STRAP
80
GROMMET
83
NUT OIL TANK TO BRACKET
83
NUT , Replaced By: N913002006009
89
HOSE FROM PUMP TO SELF-LEVELLING UNIT, 123.043 011135 ALSO INSTALLED ON 011117,011121-011133 123.050 002917 ALSO INSTALLED ON 002915 123.053 013889 ALSO INSTALLED ON 013786,013789,013791,013793-013795,013797-013799,013801,013803-013807.
89
HOSE FROM PUMP TO SELF-LEVELLING UNIT, 123.026 065673 EXCEPT FOR 065200,065259,065299,065364,065380,065381,065383,065384,065386,065388,065391-065394,065396-065399, 065401-065411,065413-065415,065417,065418,065420-065426,065428-065493,065495-065569,065571-065672. 123.030 025778 EXCEPT FOR 025770,025775,025778 123.033 052425 EXCEPT FOR 052340,052362,052366,052367,052373-052375,052380,052382,052383,052386-052388,052393-052398,052400- 052404,052406-052423.
98
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
101
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
149
BRACKET HIGH PRESSURE EXPANSION HOSE TO WHEELHOUSE PANEL, 123.026 079273 ALSO INSTALLED ON 078726,078728,078730,078733,078735,078739,078741-078745,078749-078754,078756-078758,078760-078770, 078773,078774,078776,078777,078779,078784,078787-078797,078799-078801,078804,078806,078808-078811, 078813-078824,078825-078834,078836-078852,078854,078855,078857-078860,078969-078975,078978-079018, 079020-079069,079072,079074-079093,079095,079097,079098,079100-079105,079107-079115,079117-079119, 079121-079129,079131-079144,079147-079166,079168-079208,079210-079246,079249-079271.
152
GROMMET BATTERY CASE
191
LOOM TIE TO MOUNT PLASTIC PIPING
194
BUFFER , 123.030 023997 033 044831 050 002435 053 010961
212
LINE FROM PUMP TO SELF-LEVELLING UNIT
212
LINE , Replaced By: A1233204872
212
LINE FROM PUMP TO SELF-LEVELLING UNIT
215
FITTING OIL DELIVERY LINE TO SELF-LEVELLING DEVICE, 123.026 065674 ALSO INSTALLED ON 065200,065259,065299,065364,065380,065381,065383,065384,065386,065388,065391-065394,065396-065399, 065401-065411,065413-065415,065417,065418,065420-065426,065428-065493,065495-065569,065571-065672. 123.030 025779 ALSO INSTALLED ON 025770,025775,025777 123.033 052426 ALSO INSTALLED ON 052340,052362,052366,052367,052373-052375,052380,052382,052383,052386-052388,052393-052398,052400- 052404,052406-052423.
286
LINE RETURN LINE
298
FITTING RETURN LINE TO SELF-LEVELLING UNIT
304
CLAMP FORKED SUPPORT,TOP
307
CLAMP , 116.020 071390 ALSO INSTALLED ON 071392,071396,071400,071402,071416. 116.024,025 068051 ALSO INSTALLED ON 068099,068265 EXCEPT FOR 055714,055888,057629,058694,066624,066628,066632,066803,067088,067089,067410,067542,067578-067580, 067860-067862,067865,067924,067928-067943,067945,067948,067952,067953,067955-067969,067971-068001, 068005,068007-068019,068024,068026-068029,068031-068033,068035-068048,068050.
310
CLAMP , FROM CHASSIS: 010 115422 110 307703 017,117 000001
316
SHEET METAL SCREW BRACKET TO CAB FLOOR, EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 5 180559
319
SHEET METAL SCREW VALVE TO WINDOW SILL
322
BUFFER
322
RUBBER PAD , Replaced By: A1263280181
325
HOSE , ORDER BY THE METER 107.022 005201 ALSO INSTALLED ON 005190-005192,005194-005199. 107.023 012497 107.024 021804 ALSO INSTALLED ON 021794,021804
331
DAMPING STRIP , Replaced By: A2013280688
331
DAMPING STRIP
331
DAMPING STRIP , 123.026 065673 EXCEPT FOR 065200,065259,065299,065364,065380,065381,065383,065384,065386,065388,065391-065394,065396-065399, 065401-065411,065413-065415,065417,065418,065420-065426,065428-065493,065495-065569,065571-065672. 123.030 025778 EXCEPT FOR 025770,025775,025778 123.033 052425 EXCEPT FOR 052340,052362,052366,052367,052373-052375,052380,052382,052383,052386-052388,052393-052398,052400- 052404,052406-052423.
