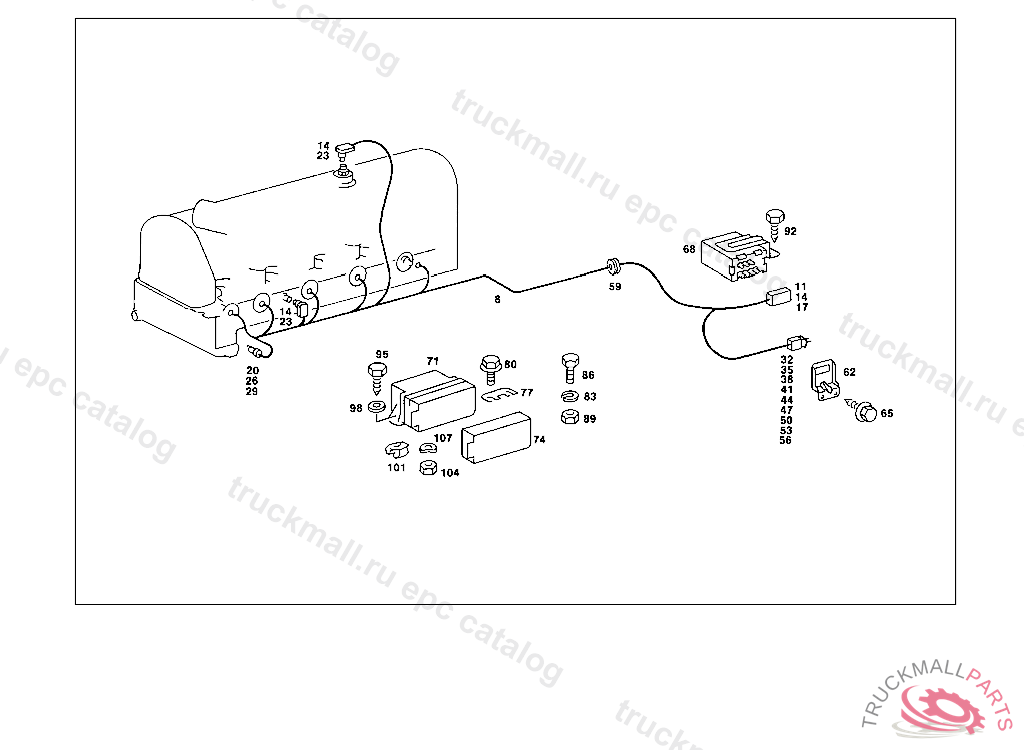

Поз.
Артикул
Описание
8
CABLE HARNESS PRE-GLOW SYSTEM
8
CABLE HARNESS PRE-GLOW SYSTEM
11
PIN BUSHING HOUSING PRE-GLOW TIME RELAY, 5-POLE
11
PIN BUSHING HOUSING SEAT HEATER RELAY, 8-POLE
14
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
17
COVERTO 006 545 81 28
23
PIN BUSHING HOUSING UNIPOLAR, HEAT SENSOR CONNECTION
29
ROUND PIN BUSHING4 MM2
32
PLUG HOUSING MAIN CABLE HARNESS
35
COVERTO 011 545 10 28
38
PLUG PIN
59
GROMMET PLUG SOCKET
68
SWITCH PRE-GLOW TIME RELAY
68
CONTROL UNIT PRE-GLOW TIME RELAY
68
CONTROL UNIT PRE-GLOW TIME RELAY
71
PRE-GLOW TIME RELAY ,F 102454
71
PRE-GLOW TIME RELAY ,F 102454
74
BOOT
74
BOOTTO 002 545 05 32,002 545 06 32
74
BOOTTO 001 545 97 32,001 545 98 32
77
FUSE
80
COMBINATION BOLT BRACKET TO STEERING COLUMN END
83
LOCK WASHER T-FITTING TO BRACKET
86
SCREW MOUNTING PARTS M 5X12, Replaced By: N000000002035
86
SCREW BRACKET TO TAIL LAMP BRACKET
89
NUT TACHOGRAPH TO BRACKET
92
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
95
SHEET METAL SCREW PRE-GLOW TIME RELAY TO COWL
98
WASHER COMPRESSED AIR LINE TO BRACKET
98
WASHER , Replaced By: N009021006208
101
CLIP PRE-GLOW TIME RELAY TO COWL
104
NUT BALL PIVOT TO LEVER
107
SPRING WASHER LICENSE PLATE TO BRACKET
