Поз.
Артикул
Описание

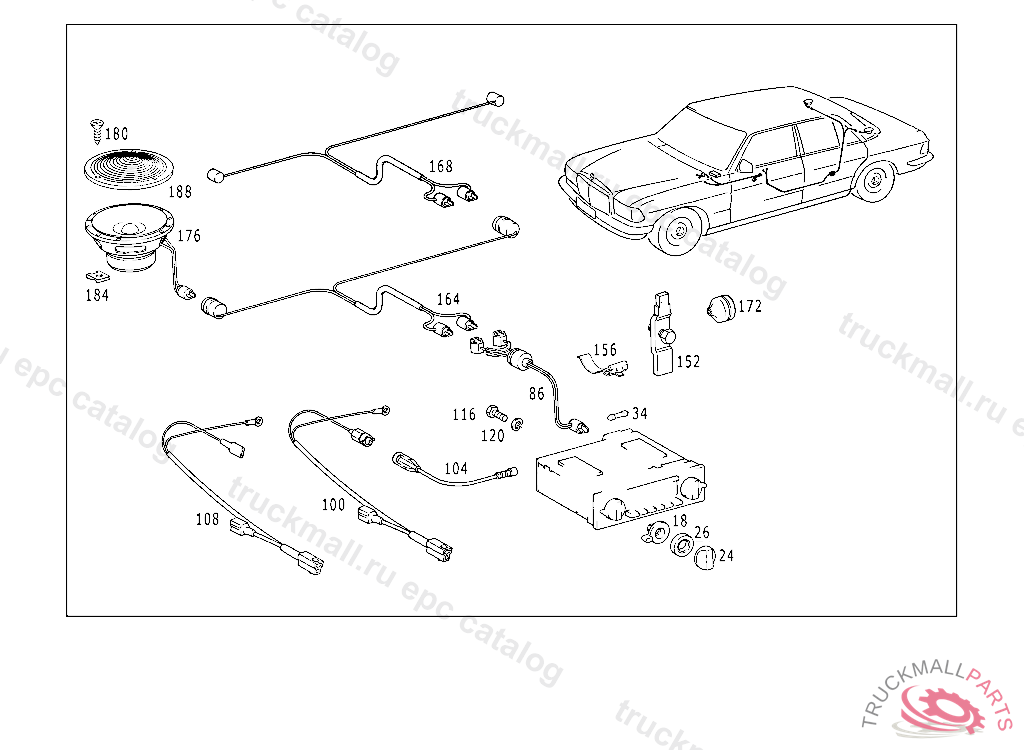

18
LEVER
24
KNOBTO 001 820 42 86
26
WASHER
34
FUSE2 A
34
FUSE GREEN 2 A
86
ELECTRIC CABLE LOUDSPEAKER CONNECTION CABLE, FROM CHASSIS 116.020 037452 116.024,025 039538 116.028,029 025862 116.032,033 034710
104
ELECTRIC CABLE FROM FUSE TO RADIO SET
108
ELECTRIC CABLE RADIO CURRENT SUPPLY TO 001 820 42 86
108
ELECTRIC CABLE RADIO CURRENT SUPPLY TO 001 820 43 86
116
SCREW COVER PLATE TO COVER PLATE M 6 X 10
120
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
152
CLAMP RADIO SET FIXTURE IN HOUSING, UP TO CHASSIS107.022 009533 107.025 001704 107.026 002280 107.042 009859 107.045 003232 107.046 000488
156
SPRING RADIO SET FIXTURE IN HOUSING
164
ELECTRIC CABLE REAR END LOUDSPEAKER CONNECTION
168
ELECTRIC CABLE REAR END LOUDSPEAKER CONNECTION
172
GROMMET FOR PASSAGE OF LINE, UP TO IDENT NO. 5 033766,ALSO INSTALLED ON 5 039977
176
LOUDSPEAKER
180
SHEET METAL SCREW LOUDSPEAKER WITH COVERING TO HAT TRAY
184
LOCK LOUDSPEAKER WITH COVERING TO HAT TRAY
188
COVERING , AVAILABLE ONLY IN BLACK,NO.9051
999
SHEET METAL SCREW PANELLING TO LEFT FRONT PANEL PILLAR
