Поз.
Артикул
Описание

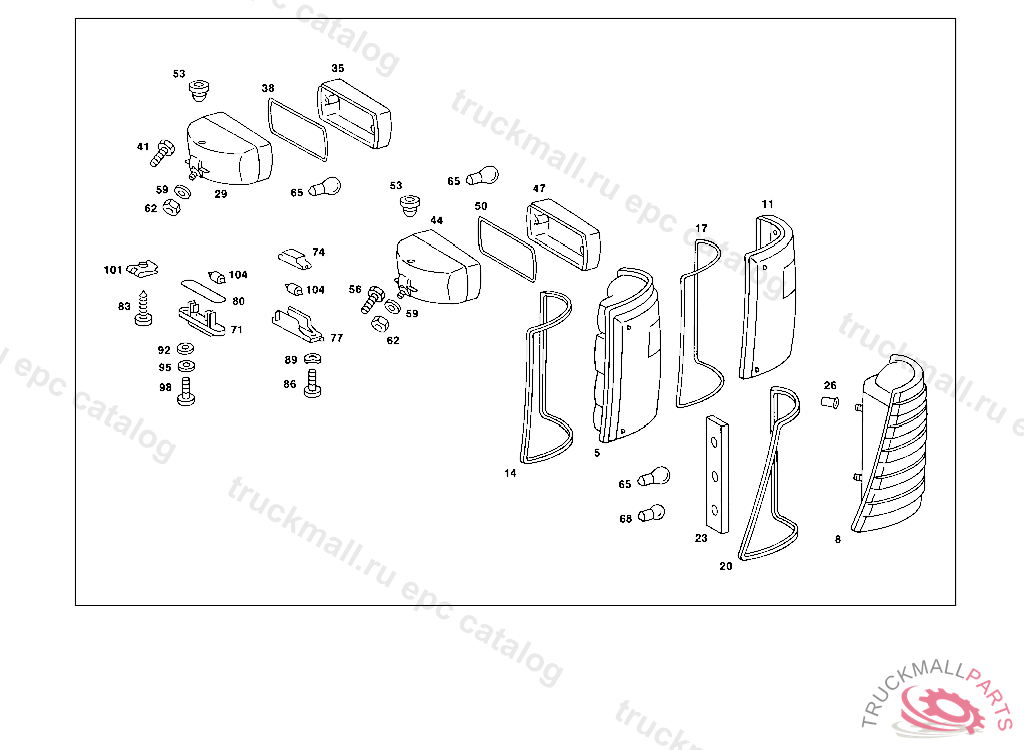

8
LENS LEFT, 000 101974 003 051217 007 042709 102,103 081877 105 103089
8
LENS RIGHT, 000 101974 003 051217 007 042709 102,103 081877 105 103089
20
SEAL , 000 101974 003 051217 007 042709 102,103 081877 105 103089
23
LAMP SUPPORT , 000 101974 003 051217 007 042709 102,103 081877 105 103089
26
NUT RIGHT TAIL LAMP, 000 101974 003 051217 007 042709 102,103 081877 105 103089
26
NUT WINDOW REGULATOR TO REAR DOOR
29
EXTERIOR LAMP BACK-UP LIGHT, 086 007438 093 010494 183 019004 190 024347 193 006857 280 003123 283 008195 003 108865 007 097719 102,103 291084 105 261215 200 072216
29
EXTERIOR LAMP , Replaced By: A1238202056, +001A1238851014
29
EXTERIOR LAMP , Replaced By: A1238201956, +001A1238850914
29
EXTERIOR LAMP RIGHT
35
LENS LEFT
35
LENS BACK-UP LIGHT
38
SEAL , 000 101974 003 051217 007 042709 102,103 081877 105 103089
41
SCREW PUMP TO BRACKET
41
SCREW COVER PLATE TO BRACKET
44
EXTERIOR LAMP , 086 007440 093 010495 183 019014 190 024356 193 006884 280 003133 283 008227 000 101974 003 051217 007 042709 102,103 081877 105 103089 000 UNTIL PRODUCTION STOP 003 108864 007 097718 102,103 291083 105 261214 200 072215, Replaced By: A1238201756, +001A1238850914
44
EXTERIOR LAMP REAR FOGLAMP, 086 007441 093 010496 183 019015 190 024357 193 006885 280 003134 283 008228 003 108865 007 097719 102,103 291084 105 261215 200 072216
44
EXTERIOR LAMP , 086 007440 093 010495 183 019014 190 024356 193 006884 280 003133 283 008227 000 101974 003 051217 007 042709 102,103 081877 105 103089 000 UNTIL PRODUCTION STOP 003 108864 007 097718 102,103 291083 105 261214 200 072215, Replaced By: A1238201856, +001A1238851014
44
EXTERIOR LAMP REAR FOGLAMP, 086 007441 093 010496 183 019015 190 024357 193 006885 280 003134 283 008228 003 108865 007 097719 102,103 291084 105 261215 200 072216
47
LENS REAR FOGLAMP, 086 007441 093 010496 183 019015 190 024357 193 006885 280 003134 283 008228 003 108865 007 097719 102,103 291084 105 261215 200 072216
47
LENS REAR FOGLAMP, 086 007440 093 010495 183 019014 190 024356 193 006884 280 003133 283 008227 000 101974 003 051217 007 042709 102,103 081877 105 103089 000 UNTIL PRODUCTION STOP 003 108864 007 097718 102,103 291083 105 261214 200 072215
47
LENS , Replaced By: A1238263290
47
LENS , Replaced By: A1238263190
50
SEAL , 000 101974 003 051217 007 042709 102,103 081877 105 103089
53
GROMMET CENTRIFUGAL PUMP CONNECTION
56
SCREW PUMP TO BRACKET
56
SCREW COVER PLATE TO BRACKET
59
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
59
WASHER COMPRESSED AIR LINE TO BRACKET
62
NUT BALL PIVOT TO LEVER
65
BULB12 V
68
BULB12 V/10 W
71
LICENSE PLATE LAMP , 023 143355 033 058517 123 130756 130 149559
71
LICENSE PLATE LAMP
80
SEAL , Replaced By: A1238200062
80
LICENSE PLATE LAMP
83
SHEET METAL SCREW WINDOW SILL GIRDER LOWER PART,4 273689
92
RUBBER RING LICENSE PLATE LAMP TO REAR LID
95
WASHER BRACKET TO SUPPORT
95
WASHER , Replaced By: N000125004319
98
SCREW ELECTRIC CABLE TO FUSE BOX
101
LOCK , 023 143356 033 058518 123 130757 130 149560
104
BULB12V/5W
