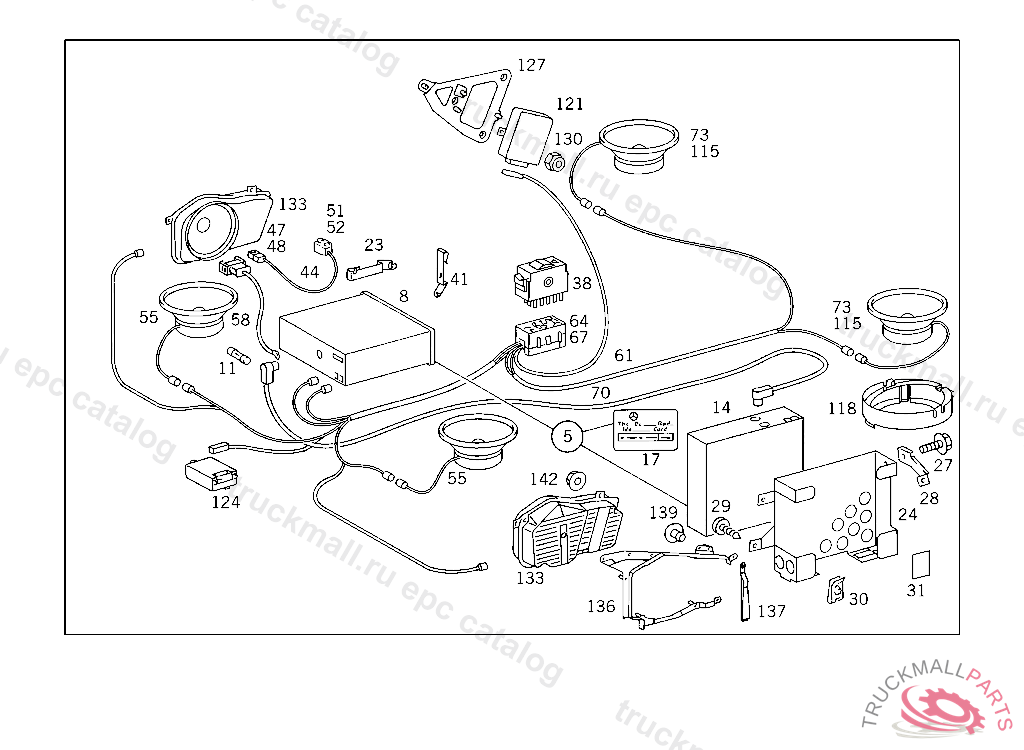

Поз.
Артикул
Описание
5
RADIO SET , FROM MODEL YEAR '94 UP TO MODEL YEAR '95
5
RADIO SET ASSEMBLYBECKER EXQUISIT, FROM MODEL YEAR '95
8
RADIO SET ASSEMBLY
11
FUSE IN CASE OF SUBSEQUENT INSTALLATION, Replaced By: N000000004202
14
AMPLIFIERTO 002 820 86 86, FROM MODEL YEAR '91 UP TO END MJ 93
17
APPLIANCE IDENT CARD
23
LOCK RADIO SET FIXTURE IN HOUSING, FROM CHASSIS 107.022 009534 107.025 001705 107.026 002281 107.042 009860 107.045 003233 107.046 000489
24
BRACKET AMPLIFIER
27
SCREW COVER PLATE TO COVER PLATE M 6 X 12
27
COMBINATION BOLT , Replaced By: N304017006018, +001N006902006102
28
BRACKET BRACKET TO PILLAR
29
SHEET METAL SCREW MUFFLER TO AIR INTAKE PIPE,INSIDE
30
LOCK INSTRUMENT PANEL TO PANELLING
31
STRIP LEFT REAR ROOF RAIL, ORDER BY THE METER
38
FADER CONTROL SOUND SYSTEM
38
FADER CONTROL (FADER CONTROL)
41
SPRING RADIO MOUNTING,LEFT
41
SPRING RADIO MOUNTING,RIGHT
44
ELECTRIC CABLE VELOCITY-MODULATED VOLUME CONTROL, UP TO END OF MODELLYEAR '89
47
PIN BUSHING HOUSING RADIO PLUG-CONNECTION
48
ROUND PIN BUSHING2.5 MM2
51
PIN BUSHING HOUSING UNIPOLAR, HEAT SENSOR CONNECTION
52
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
55
LOUDSPEAKER FRONT LOUDSPEAKER
55
LOUDSPEAKER WITH HEX.HEAD
58
ELECTRIC CABLE FROM FUSE BOX TO CABLE CONNECTOR, ONLY USED WITH BI-COMPONENT SYSTEM
61
ELECTRIC CABLE LOUDSPEAKER,FRONT, FRONT DOOR,REAR, AMPLIFIER AND FADER CONTROL,(9/90) CODE 757B 348148 CODE 752B 360883 CODE 756B 389437
61
ELECTRIC CABLE CD CONNECTING CABLE
61
ELECTRIC CABLE FROM RADIO SET TO AMPLIFIER AND TO CD CHANGER, ONLY USED WITH SOUND SYSTEM FROM MODEL YEAR '91 UP TO END MJ 93
64
PLUG FADER CONTROL, 201 A 531257 F 664540
67
PLUG SOCKET FADER CONTROL, 201 A 531257 F 664540
70
ELECTRIC CABLE CONNECTING CABLE, ONLY USED WITH BI-COMPONENT SYSTEM
115
LOUDSPEAKER RIGHT REAR LOUDSPEAKER
115
LOUDSPEAKER
118
BRACKET LOUDSPEAKER TO HAT TRAY,B 165070
121
AMPLIFIER
121
AMPLIFIER
124
AMPLIFIER
127
BRACKET AMPLIFIER
130
NUT BRACKET TO ANTENNA, ONLY USED WITH REAR END MOUNTINGA 001878
130
NUT VOLTAGE TRANSFORMER TO MOUNTING PLATE
133
LOUDSPEAKER
133
LOUDSPEAKER LEFT FRONT DOOR LOUDSPEAKER
133
LOUDSPEAKER
133
LOUDSPEAKER
136
BRACKET RIGHT FRONT DOOR LOUDSPEAKER
136
BRACKET LEFT FRONT DOOR LOUDSPEAKER
137
REINFORCEMENT BRACKET
139
RIVET ,190 000697105 108727
142
NUT VOLTAGE TRANSFORMER TO MOUNTING PLATE,9/87
