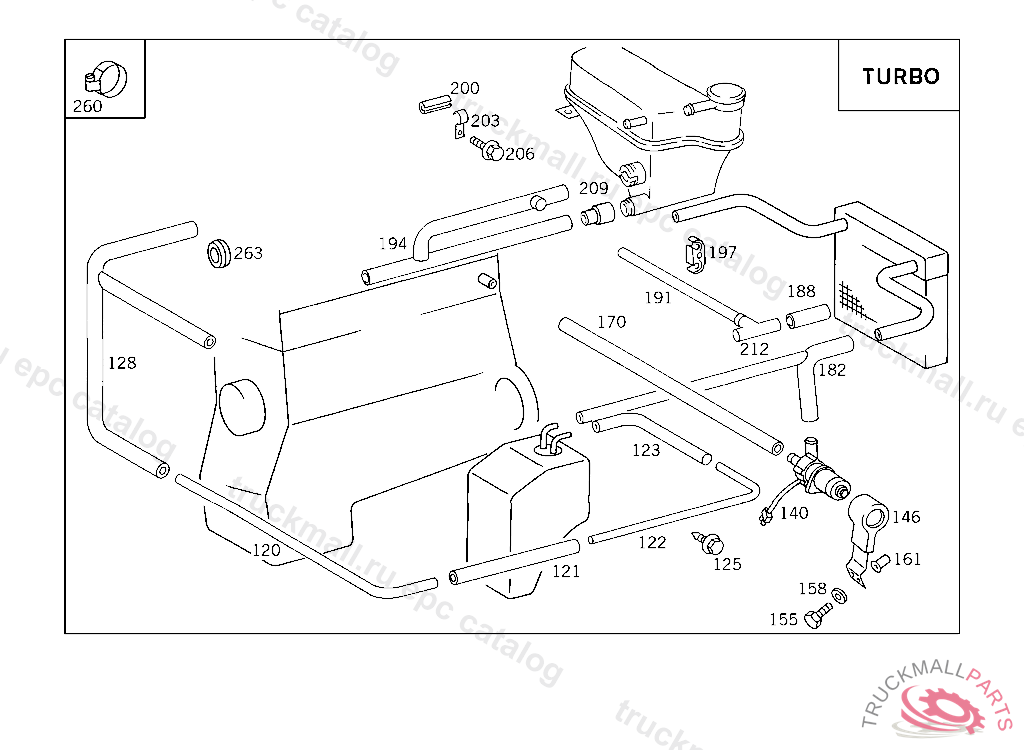

Поз.
Артикул
Описание
120
PIPE LINE RETURN, TO HEATED PANE WASHER SYSTEM,B 926098 B 923966 ALSO INSTALLED IN B 923986,B 924032,B 924042,B 924044,B 924051,B 924057,B 924112,B 924146,B 924194,B 924226,B 924227,B 924238,B 924253,B 924301, B 924332,B 924373,B 924403,B 924417,B 924477,B 924508,B 924509,B 924627,B 924703,B 924724,B 924775,B 924850,B 924899,B 925008, B 925080,B 925244,B 925333,B 925362,B 925601,B 925613,B 925938,B 926053,B 926564,B 926646,B 926727,B 927173,B 927179,B 929230, B 929231,B 930408,B 930432,B 934585,B 935125,B 937040,B 939220.
121
HOSE RETURN, TO HEATED PANE WASHER SYSTEM,B 926098 B 923966 ALSO INSTALLED IN B 923986,B 924032,B 924042,B 924044,B 924051,B 924057,B 924112,B 924146,B 924194,B 924226,B 924227,B 924238,B 924253,B 924301, B 924332,B 924373,B 924403,B 924417,B 924477,B 924508,B 924509,B 924627,B 924703,B 924724,B 924775,B 924850,B 924899,B 925008, B 925080,B 925244,B 925333,B 925362,B 925601,B 925613,B 925938,B 926053,B 926564,B 926646,B 926727,B 927173,B 927179,B 929230, B 929231,B 930408,B 930432,B 934585,B 935125,B 937040,B 939220.
122
PIPE LINE RETURN, TO HEATED PANE WASHER SYSTEM,B 926098 B 923966 ALSO INSTALLED IN B 923986,B 924032,B 924042,B 924044,B 924051,B 924057,B 924112,B 924146,B 924194,B 924226,B 924227,B 924238,B 924253,B 924301, B 924332,B 924373,B 924403,B 924417,B 924477,B 924508,B 924509,B 924627,B 924703,B 924724,B 924775,B 924850,B 924899,B 925008, B 925080,B 925244,B 925333,B 925362,B 925601,B 925613,B 925938,B 926053,B 926564,B 926646,B 926727,B 927173,B 927179,B 929230, B 929231,B 930408,B 930432,B 934585,B 935125,B 937040,B 939220.
123
HOSE RETURN, TO HEATED PANE WASHER SYSTEM
125
SHEET METAL SCREW
128
HOSE FROM RETURN LINE TO ENGINE,B 926098 B 923966 ALSO INSTALLED IN B 923986,B 924032,B 924042,B 924044,B 924051,B 924057,B 924112,B 924146,B 924194,B 924226,B 924227,B 924238,B 924253,B 924301, B 924332,B 924373,B 924403,B 924417,B 924477,B 924508,B 924509,B 924627,B 924703,B 924724,B 924775,B 924850,B 924899,B 925008, B 925080,B 925244,B 925333,B 925362,B 925601,B 925613,B 925938,B 926053,B 926564,B 926646,B 926727,B 927173,B 927179,B 929230, B 929231,B 930408,B 930432,B 934585,B 935125,B 937040,B 939220.
140
RECIRCULATING PUMP. PUMP , NOT FOR AUSTRALIA
146
BRACKET CIRCULATION PUMP,B 926098 B 923966 ALSO INSTALLED IN B 923986,B 924032,B 924042,B 924044,B 924051,B 924057,B 924112,B 924146,B 924194,B 924226,B 924227,B 924238,B 924253,B 924301, B 924332,B 924373,B 924403,B 924417,B 924477,B 924508,B 924509,B 924627,B 924703,B 924724,B 924775,B 924850,B 924899,B 925008, B 925080,B 925244,B 925333,B 925362,B 925601,B 925613,B 925938,B 926053,B 926564,B 926646,B 926727,B 927173,B 927179,B 929230, B 929231,B 930408,B 930432,B 934585,B 935125,B 937040,B 939220.
155
SCREW. HEXALOBULAR BOLT COVER TO MOUNTING FRAME M5X12
155
SCREW BRACKET TO TAIL LAMP BRACKET
155
SCREW MOUNTING PARTS M 5X12, Replaced By: N000000002035
158
WASHER BOOT TO CAB FLOOR
161
NUT BRACKET WITH RECIRCULATING PUMP TO PARTITION PANEL,LEFT,B 926098 B 923966 ALSO INSTALLED IN B 923986,B 924032,B 924042,B 924044,B 924051,B 924057,B 924112,B 924146,B 924194,B 924226,B 924227,B 924238,B 924253,B 924301, B 924332,B 924373,B 924403,B 924417,B 924477,B 924508,B 924509,B 924627,B 924703,B 924724,B 924775,B 924850,B 924899,B 925008, B 925080,B 925244,B 925333,B 925362,B 925601,B 925613,B 925938,B 926053,B 926564,B 926646,B 926727,B 927173,B 927179,B 929230, B 929231,B 930408,B 930432,B 934585,B 935125,B 937040,B 939220.
170
HOSE FROM RECIRCULATING PUMP TO ENGINE,B 926098 B 923966 ALSO INSTALLED IN B 923986,B 924032,B 924042,B 924044,B 924051,B 924057,B 924112,B 924146,B 924194,B 924226,B 924227,B 924238,B 924253,B 924301, B 924332,B 924373,B 924403,B 924417,B 924477,B 924508,B 924509,B 924627,B 924703,B 924724,B 924775,B 924850,B 924899,B 925008, B 925080,B 925244,B 925333,B 925362,B 925601,B 925613,B 925938,B 926053,B 926564,B 926646,B 926727,B 927173,B 927179,B 929230, B 929231,B 930408,B 930432,B 934585,B 935125,B 937040,B 939220.
182
HOSE FROM RECIRCULATING PUMP TO ENGINE
188
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR, ORDER BY THE METER
191
PIPE LINE BREATHER, B 109432 EXCEPT FOR B 109493,B 109573,B 109675,B 109742,B 109895,B 110798,B 111016,B 111111,B 111114,B 111157,B 111317,B 111972,B 112252,B 112281, B 112344,B 112501,B 112540,B 113129,B 113347,B 113392,B 113587,B 117342,B 119941. ALSO INSTALLED ON B 108677,B 108723,B 108768,B 108795,B 108834,B 108888,B 108924,B 108971,B 108988,B 109000,B 109054,B 109239.B 926098 B 923966 ALSO INSTALLED IN B 923986,B 924032,B 924042,B 924044,B 924051,B 924057,B 924112,B 924146,B 924194,B 924226,B 924227,B 924238,B 924253,B 924301, B 924332,B 924373,B 924403,B 924417,B 924477,B 924508,B 924509,B 924627,B 924703,B 924724,B 924775,B 924850,B 924899,B 925008, B 925080,B 925244,B 925333,B 925362,B 925601,B 925613,B 925938,B 926053,B 926564,B 926646,B 926727,B 927173,B 927179,B 929230, B 929231,B 930408,B 930432,B 934585,B 935125,B 937040,B 939220.
194
PIPE LINE RETURN, B 109432 EXCEPT FOR B 109493,B 109573,B 109675,B 109742,B 109895,B 110798,B 111016,B 111111,B 111114,B 111157,B 111317,B 111972,B 112252,B 112281, B 112344,B 112501,B 112540,B 113129,B 113347,B 113392,B 113587,B 117342,B 119941. ALSO INSTALLED ON B 108677,B 108723,B 108768,B 108795,B 108834,B 108888,B 108924,B 108971,B 108988,B 109000,B 109054,B 109239.B 926098 B 923966 ALSO INSTALLED IN B 923986,B 924032,B 924042,B 924044,B 924051,B 924057,B 924112,B 924146,B 924194,B 924226,B 924227,B 924238,B 924253,B 924301, B 924332,B 924373,B 924403,B 924417,B 924477,B 924508,B 924509,B 924627,B 924703,B 924724,B 924775,B 924850,B 924899,B 925008, B 925080,B 925244,B 925333,B 925362,B 925601,B 925613,B 925938,B 926053,B 926564,B 926646,B 926727,B 927173,B 927179,B 929230, B 929231,B 930408,B 930432,B 934585,B 935125,B 937040,B 939220.
197
BRACKET BRAKE LINE TO FIRE WALL
200
BUFFER
203
CLAMP FORKED SUPPORT,TOP
206
SCREW , Replaced By: A2039900036
209
HOSE BOTTOM,B 108794
212
PIPE LINE FEED, B 109432 EXCEPT FOR B 109493,B 109573,B 109675,B 109742,B 109895,B 110798,B 111016,B 111111,B 111114,B 111157,B 111317,B 111972,B 112252,B 112281, B 112344,B 112501,B 112540,B 113129,B 113347,B 113392,B 113587,B 117342,B 119941. ALSO INSTALLED ON B 108677,B 108723,B 108768,B 108795,B 108834,B 108888,B 108924,B 108971,B 108988,B 109000,B 109054,B 109239.B 926098 B 923966 ALSO INSTALLED IN B 923986,B 924032,B 924042,B 924044,B 924051,B 924057,B 924112,B 924146,B 924194,B 924226,B 924227,B 924238,B 924253,B 924301, B 924332,B 924373,B 924403,B 924417,B 924477,B 924508,B 924509,B 924627,B 924703,B 924724,B 924775,B 924850,B 924899,B 925008, B 925080,B 925244,B 925333,B 925362,B 925601,B 925613,B 925938,B 926053,B 926564,B 926646,B 926727,B 927173,B 927179,B 929230, B 929231,B 930408,B 930432,B 934585,B 935125,B 937040,B 939220.
260
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
260
CLAMP , Replaced By: N000000000667
260
CLAMP PRESSURE REGULATOR
260
CLAMP HOSE FASTENING 28-35 MM,V 207570
260
HOSE CLAMP LINE MOUNTING
263
GROMMET FEED LINE TO FIRE WALL,F 016102
