Поз.
Артикул
Описание
5

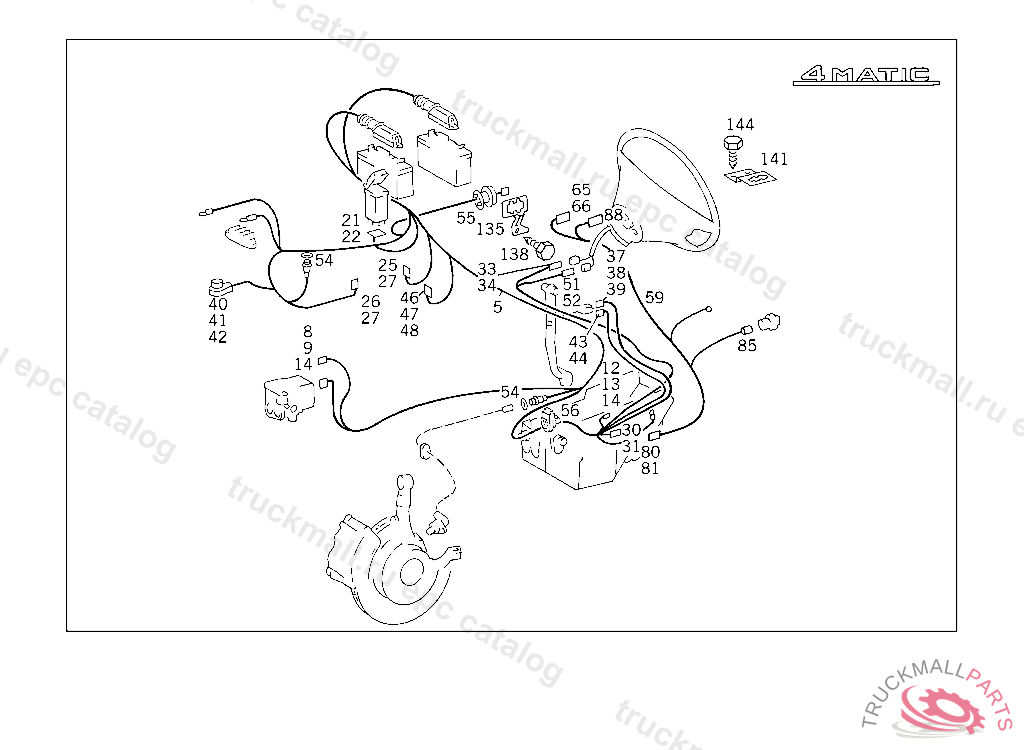

CABLE HARNESS 4-MATIC, C 009355 J 016999 B 891779 - C 009354 WITH CODE 859
5
CABLE HARNESS 4-MATIC, B 532665 ALSO INSTALLED ON B 536605,B 536706,B 537187,B 537329,B 544820. EXCEPT FOR B 526583,B 526711,B 526756,B 528168,B 528388,B 528751,B 528956,B 529255,B 529277,B 529573,B 529662,B 529840,B 529901,B 530418, B 530432,B 530736,B 530917,B 530984,B 531198,B 531320,B 531344,B 531393,B 531436,B 531464,B 531499,B 531533,B 531680,B 531798, B 532053,B 532268,B 532366,B 532408.
8
PIN BUSHING HOUSING 12-POLE
9
COVERTO 009 545 26 28
12
PIN BUSHING HOUSING SEAT HEATER RELAY, 8-POLE
13
COVERTO 006 545 81 28
14
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
21
PIN BUSHING HOUSING OVERLOAD PROTECTOR,F 017704
22
ROUND PIN BUSHING4.0 MM
25
PIN BUSHING HOUSING DIAGNOSIS BOX
26
PIN BUSHING HOUSING FUSE BOX "N", FOR SWEDEN ONLY
27
ROUND PIN BUSHING LIGHT SWITCH
30
PIN BUSHING HOUSING SOLENOID VALVE,F 051968
31
ROUND PIN BUSHING2.5 MM2
33
PIN BUSHING HOUSING TELL-TALE LAMP ASD
34
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
37
PLUG ADAPTERTO 014 545 04 28
38
PLUG ADAPTER. PLUG HEATING WATER VALVE, 4-POLE
39
PIN BUSHINGTO 000 821 19 26
40
PIN BUSHING HOUSING DIAGNOSIS, B 532666 EXCEPT FOR B 536605,B 536706,B 537187,B 537329,B 544820. ALSO INSTALLED ON B 526583,B 526711,B 526756,B 528168,B 528388,B 528751,B 528956,B 529255,B 529277,B 529573,B 529662,B 529840,B 529901,B 530418, B 530432,B 530736,B 530917,B 530984,B 531198,B 531320,B 531344,B 531393,B 531436,B 531464,B 531499,B 531533,B 531680,B 531798, B 532053,B 532268,B 532366,B 532408.
41
COVER (TRIMMER PLUG)
42
PLUGTO 021 545 21 28, B 532666 EXCEPT FOR B 536605,B 536706,B 537187,B 537329,B 544820. ALSO INSTALLED ON B 526583,B 526711,B 526756,B 528168,B 528388,B 528751,B 528956,B 529255,B 529277,B 529573,B 529662,B 529840,B 529901,B 530418, B 530432,B 530736,B 530917,B 530984,B 531198,B 531320,B 531344,B 531393,B 531436,B 531464,B 531499,B 531533,B 531680,B 531798, B 532053,B 532268,B 532366,B 532408.
43
PIN BUSHING HOUSING STOP LIGHT SWITCH
44
ROUND PIN BUSHING2.5 MM2
46
PIN BUSHING HOUSING UNIPOLAR, FROM CHASSIS:107.023 000429 107.043 006834 107.044 004104
47
COVERTO 008 545 08 28
48
ROUND PIN BUSHING4 MM2
51
PLUG HOUSING
52
PLUG PIN
54
SEAL RING COAXIAL PLUG
55
GROMMET ELECTRIC CABLE THRU FIRE WALL
56
GROMMET , ONLY WITH AIR CONDITIONING AUTOMATICS
59
CABLE HARNESS TELL-TALE LAMP
59
CABLE HARNESS TELL-TALE LAMP ABS/ASD, ONLY FOR CANADA
65
CASE 4-POLE
66
ROUND PIN BUSHING2.5 MM2
80
PLUG HOUSINGADS-ASD
81
PLUG PIN
85
ROUND PIN BUSHING LIGHT SWITCH
88
SOCKET
135
BRACKET PLUG CONNECTION ASD
138
SHEET METAL SCREW BRACKET TO CAB FLOOR
141
BRACKET COUPLER
144
SHEET METAL SCREW SEAT HEATER CONTROL TO CROSS MEMBER AND TO FRONT SEAT
