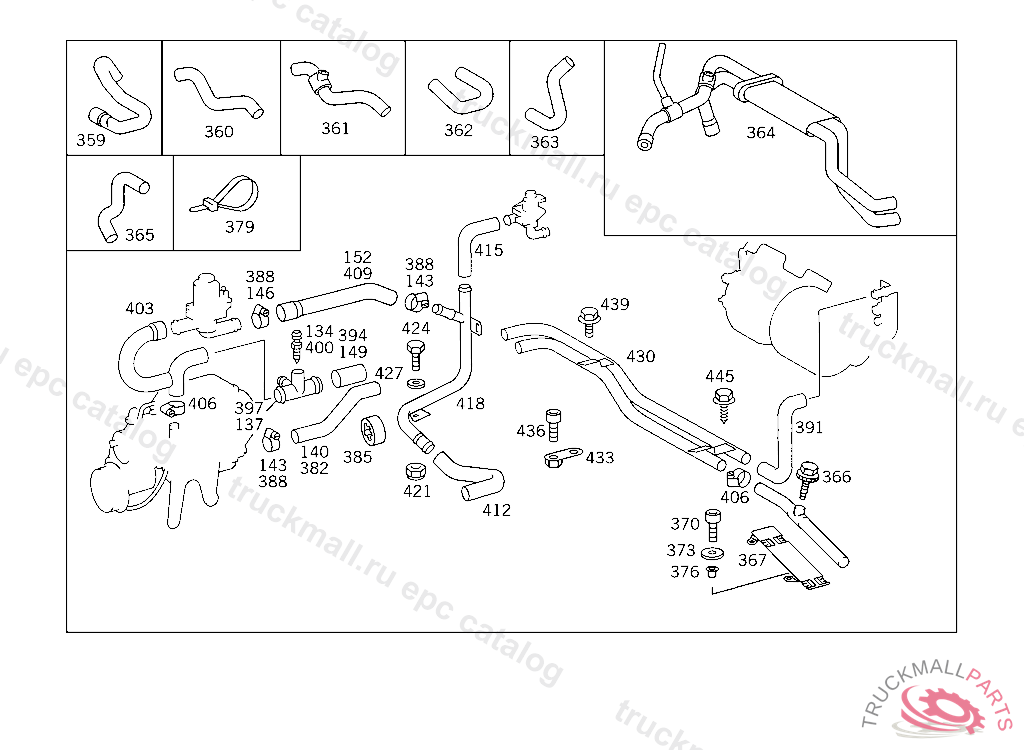

Поз.
Артикул
Описание
134
BLEEDER VALVE OIL DRAIN
137
BLEEDER VALVE DE-AERATION VALVE,F 084208 USED WITH HEATED WINDSHIELD WASHER
140
HOSE FROM HEATER UNIT TO PIPE LINE
143
HOSE CLAMP LINE MOUNTING
143
CLAMP , Replaced By: A0059970190
146
CLAMP , Replaced By: N000000000667
146
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
149
HOSE FROM DE-AERATION VALVE TO PIPE LINE
152
HOSE FROM VALVE TO ADDITIONAL HEATER RETURN LINE
365
HOSE FROM ENGINE FEED TO PIPING
388
HOSE CLAMP LINE MOUNTING
388
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
388
CLAMP , Replaced By: N000000000667
388
CLAMP , Replaced By: A0059970190
397
INTERMEDIATE PIECE
400
BLEEDER VALVE DE-AERATION VALVE,F 084208 USED WITH HEATED WINDSHIELD WASHER
403
HOSE HEATER UNIT OUTLET TO DE-AERATION AND TIMING VALVES, USED WITH HEATED WINDSHIELD WASHERB 527023
406
HOSE CLAMP LINE MOUNTING
406
CLAMP , Replaced By: A0059970190
409
HOSE FROM PIPING TO HEAT EXCHANGER, FEED
409
HOSE FROM PIPING TO HEAT EXCHANGER, FEED, ONLY FOR USE WITH REAR SPACE HEATING
412
HOSE FROM PIPE LINE TO ENGINE,RETURN, USED WITHOUT SECOND ALTERNATOR
412
HOSE FROM PIPE LINE TO ENGINE,RETURN, ONLY USED WITH SECOND ALTERNATOR
415
HOSE FROM VALVE TO ADDITIONAL HEATER RETURN LINE, USED WITHOUT HEATED WINDSHIELD WASHER
415
HOSE FROM VALVE TO ADDITIONAL HEATER RETURN LINE, USED WITH HEATED WINDSHIELD WASHERF 185093
418
LINE ON HEATER UNIT BRACKET
421
NUT , Replaced By: N910112006001
421
NUT , Replaced By: N913023006001
421
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
424
SCREW , Replaced By: N304017006034
424
SCREW COVER PLATE TO COVER PLATE M 6 X 10
427
WASHER COMPRESSED AIR LINE TO BRACKET
427
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
430
LINE FROM ENGINE TO HEATER UNIT
