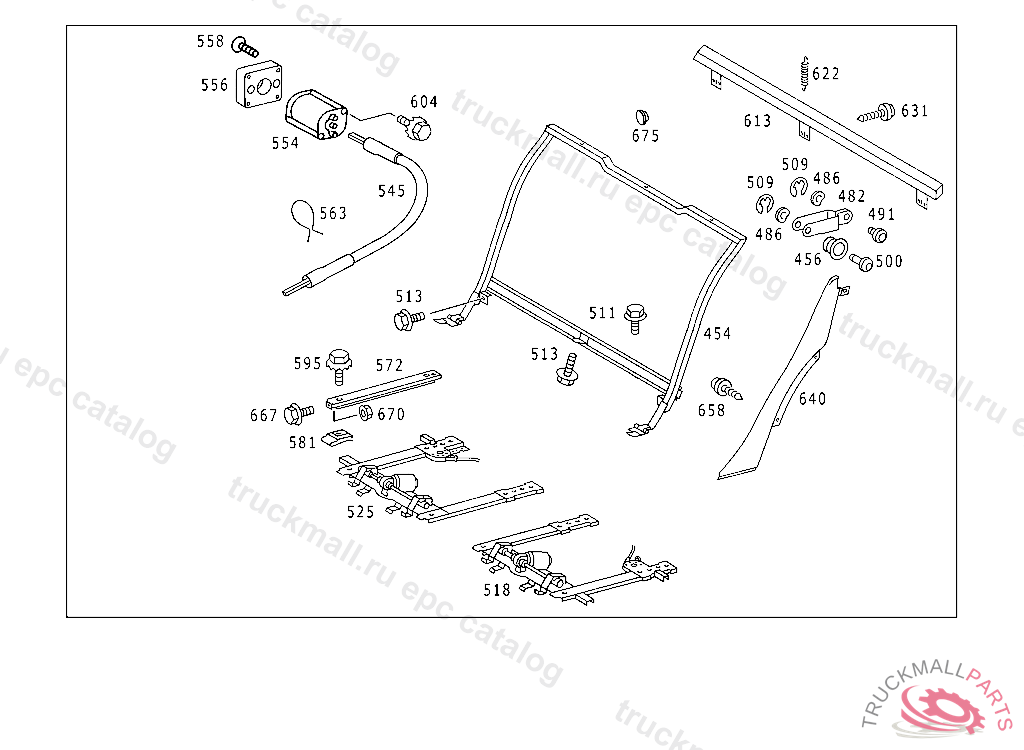

Поз.
Артикул
Описание
454
BACKREST ADJUSTER , 126.023 048464 126.033 023360 126.037 015415
454
BACKREST ADJUSTER , UP TO CHASSISS,SEE FOOTN.803 I
456
BUSHING
482
LEVER
486
SPRING WASHER , Replaced By: N000137008212
486
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
491
PIN PULL TO FASTENER
500
PIN BACKREST ADJUSTER TO REAR PANEL
509
LOCK HOSE FASTENING
511
SCREW OIL COOLER
513
SCREW HINGE TO BEARING BRACKET AND TO PAD
518
SEAT ADJUSTER LEFT
525
SEAT ADJUSTER RIGHT
545
SHAFT REAR SEAT ADJUSTMENT
554
ELECTRIC MOTOR ELECTRIC REAR SEAT ADJUSTMENT
554
ELECTRIC MOTOR , 126.023 080339 126.033 041014 126.037 029190, Replaced By: A0018209942, +002A1269290019, +002A0009290198, +004N000965005014
556
SPACER , FOR REPAIR PURPOSES ONLY 126.023 080339 126.033 041014 126.037 029190
558
SCREW GUIDE TO STEERING COLUMN END,5 227753
563
BRACKET
572
GUIDE RAIL
581
SOCKET NUT. NUT RETAINER EXHAUST MUFFLER TO SUPPORT
595
SCREW
604
SCREW MOTOR TO BRACKET
613
COVERING REAR BACKREST
613
COVERING REAR BACKREST
613
COVERING REAR BACKREST
613
COVERING REAR BACKREST
622
SPRING ON REAR PANEL,TOP
622
SPRING ON REAR PANEL,TOP
631
SHEET METAL SCREW BRACKET TO FIRE WALL
640
COVERING RIGHT REAR WHEEL ARCH
640
COVERING LEFT REAR WHEEL ARCH
640
COVERING RIGHT REAR WHEEL ARCH, NO.9007I NO.5073I NO.8313I......I NO.8414I......I NO.3114I NO.7098I
640
COVERING LEFT REAR WHEEL ARCH
658
COMBINATION BOLT , Replaced By: N000000000548
667
SCREW HINGE TO BEARING BRACKET AND TO PAD
670
NUT CLAMP TO BRACKET
675
PLUG INSULATION TO REAR PANEL
