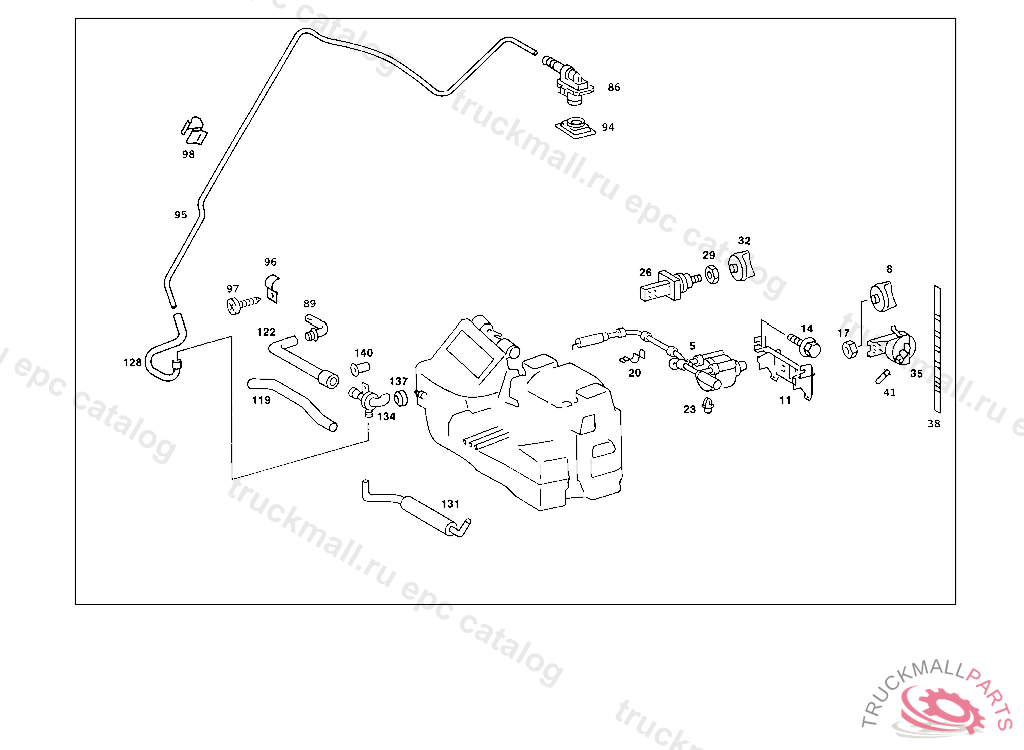

Поз.
Артикул
Описание
5
OPERATING UNIT HEATER CASE, USED WITHOUT AUTOMATIC AIR CONDITIONER
8
KNOB 3/2-WAY VALVE
11
BRACKET OPERATING UNIT TO HEATER CASE
14
SCREW AT CROSS MEMBER BELOW INSTRUMENT PANEL
17
NUT WIRE CABLE TO INSTRUMENT PANEL
20
CLAMP OPERATING UNIT TO COVERING,TOP
23
RIVET OPERATING UNIT TO FRESH AIR FLAP
26
SWITCH BLOWER
29
NUT WIRE CABLE TO INSTRUMENT PANEL
32
KNOB BLOWER SWITCH
35
SELECTOR AT OPERATING UNIT BRACKET, USED FOR AUTOMATIC HEATING,RIGHT
35
SELECTOR AT OPERATING UNIT BRACKET, USED FOR AUTOMATIC HEATING,LEFT
38
SYMBOL
41
BULB , Replaced By: N000000001061
41
BULB LIGHTING OF LEFT AND RIGHT OPERATING UNITS AND BLOWER SWITCH
86
TEMPERATURE SENSOR INBOARD, ON ROOF RAIL
86
TEMPERATURE SENSOR INBOARD, ON ROOF RAIL
89
PIPE SOCKET BREATHING,TO TEMPERATURE SENSOR &THERMOSTAT,THRU RIGHT FRONT PANEL PILLAR
89
PIPE SOCKET BREATHING,TO TEMPERATURE SENSOR &THERMOSTAT,THRU RIGHT FRONT PANEL PILLAR
94
COVERING PANELLING TO ROOF RAIL
95
HOSE , Replaced By: A1248320988
95
PIPE LINE ,A 089364, Replaced By: A1268321588, +001A1268300996, +002A1269885278
95
PIPE LINE ,A 089364, Replaced By: A1268321588, +001A1268301096, +002A1269885278
95
HOSE , TO BE ADAPTED DURING ASSEMBLY
96
CLAMP BREATHER LINE
97
SHEET METAL SCREW. TAPPING SCREW , Replaced By: N007981003203
97
SHEET METAL SCREW BRACKET TO CAB
98
CLIP BREATHER LINE, 033 FROM CHASSIS 017567 EXCEPT FOR 017616 ALSO INSTALLED ON 017438,017501,017511,017513,017517,017535,017538-017540,017542-017544,017546-017549,017551-017556, 017559-017565. 120 FROM CHASSIS 012602 EXCEPT FOR 012702, ALSO INSTALLED ON 012457,012459,012461-012464,012466,012468-012470,012473,012476,012477,012483-012489,012491-012501, 012503-012509,012511-012516,012518-012532,012534-012543,012545-012557,012559,012560,012562-012564, 012566-012600. 033 032386 120 030358
98
CLIP TEMPERATURE-SENSOR AIR-GUIDE HOSE TO FRONT ROOF RAIL
119
HOSE BETWEEN AIR-BLAST NOZZLE AND BREATHER FITTING
122
HOSE BETWEEN AIR-BLAST NOZZLE AND BREATHER FITTING
122
HOSE BETWEEN TEMPERATURE SENSOR AND AIR NOZZLE
128
HOSE BETWEEN TEMPERATURE SENSOR AND AIR NOZZLE, 033 FROM CHASSIS 017567 EXCEPT FOR 017616 ALSO INSTALLED ON 017438,017501,017511,017513,017517,017535,017538-017540,017542-017544,017546-017549,017551-017556, 017559-017565. 120 FROM CHASSIS 012602 EXCEPT FOR 012702, ALSO INSTALLED ON 012457,012459,012461-012464,012466,012468-012470,012473,012476,012477,012483-012489,012491-012501, 012503-012509,012511-012516,012518-012532,012534-012543,012545-012557,012559,012560,012562-012564, 012566-012600. 033 032386 120 030358
131
HOSE AIR GUIDE HOSE TO ROOF RAIL AND TO AIRBLAST NOZZLE
131
HOSE , Replaced By: A1268322288
131
HOSE , L.H.D. 021 017593 022,023 064574 032,033 032385 036,037 022243 R.H.D. 021 017769 022,023 064574 032,033 032385 036,037 022243, Replaced By: A1268300996, +001A1268321688, +002A1269885278
131
HOSE AIR GUIDE HOSE TO ROOF RAIL AND TO AIRBLAST NOZZLE
134
NOZZLE (AIR-BLAST NOZZLE)
134
NOZZLE (AIR-BLAST NOZZLE)
137
GROMMET BRAKE CABLE TO REAR AXLE
140
RIVET AIR-BLAST NOZZLE TO HEATER CASE
