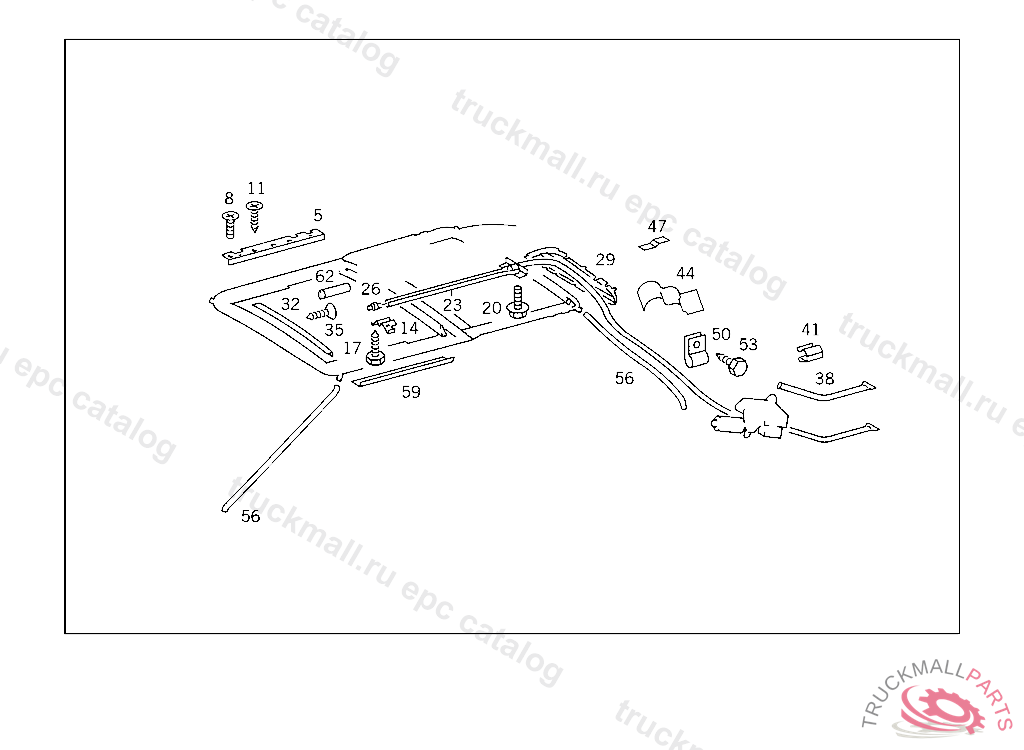

Поз.
Артикул
Описание
5
SLIDING RAIL FRONT RIGHT
5
SLIDING RAIL FRONT LEFT
5
SLIDING RAIL , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 354333, Replaced By: A1247822026
8
SCREW
11
SCREW
11
SCREW , Replaced By: A1409900436
14
SHACKLE AT TRANSPORT BRIDGE
17
SCREW SHACKLE TO BRIDGE
20
SCREW
23
TUBE FROM MOTOR TO SLIDING ROOF PLATE
26
CABLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 538224, Replaced By: A1267801789
26
CABLE FROM MOTOR TO SLIDING ROOF PLATE
29
COVERING ON SLIDING ROOF DRIVE CABLE CONDUIT UNDER ROOF PANELLING
32
COVER RAIL
35
SHEET METAL SCREW
38
TUBE OUTLET PIPE TO MOTOR
41
CLIP CABLE HARNESS TO ROOF RAIL
44
CLAMP TUBE TO REAR PILLAR
47
CLAMP TUBE TO REAR PILLAR
50
CLAMP TUBE TO REAR PILLAR
53
SHEET METAL SCREW BRACKET TO CAB FLOOR
56
HOSEWASSERABLAUF HINTEN 250 MM
59
SLIDING RAIL BETWEEN HEADLINER AND SLIDING ROOF, RIGHT
59
SLIDING RAIL BETWEEN HEADLINER AND SLIDING ROOF, LEFT
62
INSULATION150 MM, TO BE ADAPTED DURING ASSEMBLY
