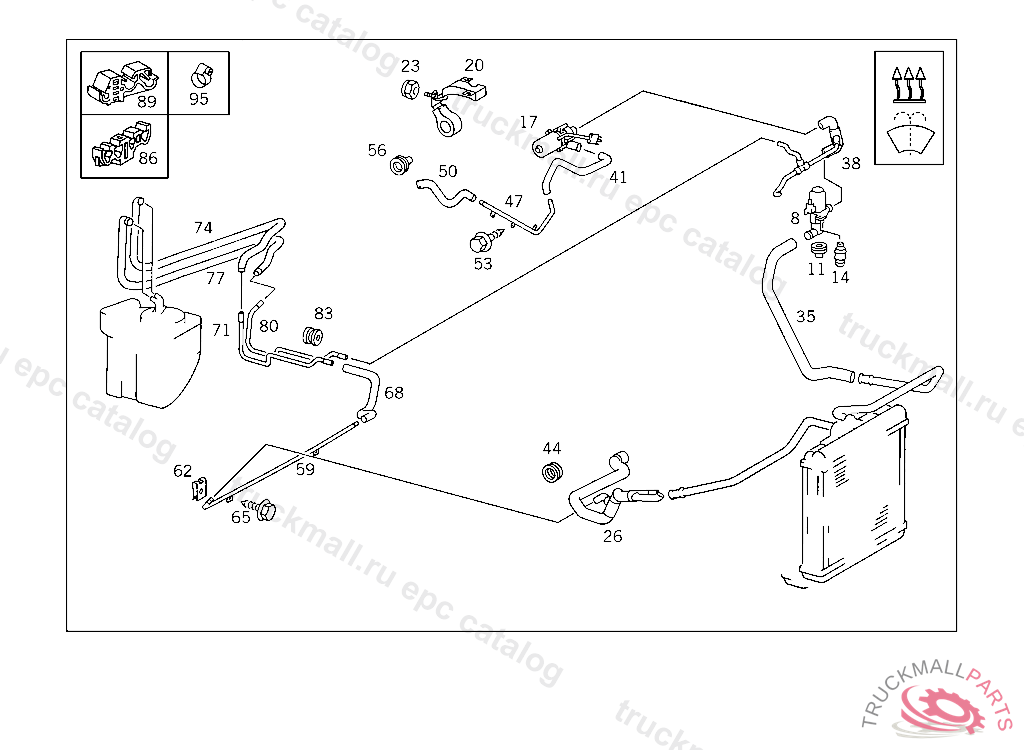

Поз.
Артикул
Описание
8
VALVE (WATER VALVE),ELECTROMAGNETIC, WITH HEATING WATER FEED IN TOP OF HEAT EXCHANGER, UP TO 4/90 ONLY USED WITH AIR CONDITIONING AUTOMATICS
11
RUBBER BUFFER WATER VALVE TO BRACKET
14
RUBBER BUFFER BETWEEN BRACKET AND DOUBLE WATER VALVE
17
PUMP
17
PUMP
20
BRACKET CIRCULATION PUMP
23
NUT
26
HOSE FROM ENGINE TO HEAT EXCHANGER, F 148144 ALSO INSTALLED ON VEHICLES WITH CODE 057
26
HOSE FROM ENGINE TO HEAT EXCHANGER, F 148143 EXCEPT FOR VEHICLES WITH CODE 057
35
HOSE FROM HEAT EXCHANGER TO SINGLE WATER VALVE, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
38
HOSE FROM WATER VALVE TO RECIRCULATING PUMP
41
HOSE FROM RECIRCULATING PUMP TO RETURN LINE
44
GROMMET FEED LINE TO FIRE WALL,F 016102
47
PIPE LINE FROM RECIRCULATING PUMP TO ENGINE
50
HOSE FROM RETURN LINE TO ENGINE,F 113842
50
HOSE FROM RETURN LINE TO ENGINE,F 113843
53
SHEET METAL SCREW
56
GROMMET FEED LINE TO FIRE WALL,F 016102
59
PIPE LINE FEED LINE LEADING TO WATER TANK
62
LOCK , Replaced By: A1409941045
62
LOCK FUEL LINE
65
SHEET METAL SCREW , Replaced By: N007981004243, +001N000125004319
65
SHEET METAL SCREW , Replaced By: N000000002062
65
SCREW
68
HOSE FEED LINE LEADING TO WATER TANK
71
PIPE LINE FEED LINE LEADING TO WATER TANK,F 083423
74
HOSE FEED LINE LEADING TO WATER TANK,F 026938
77
HOSE RETURN, TO HEATED PANE WASHER SYSTEM,F 026938
80
PIPE LINE RETURN, TO HEATED PANE WASHER SYSTEM,F 083423
83
GROMMET CAB ROOF
86
CLAMP PIPE LINE TO RIGHT WHEEL ARCH,F 083423
95
CLAMP PRESSURE REGULATOR
95
CLAMP , Replaced By: A0059970190
95
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
95
CLAMP , Replaced By: N000000000667
95
HOSE CLAMP LINE MOUNTING
