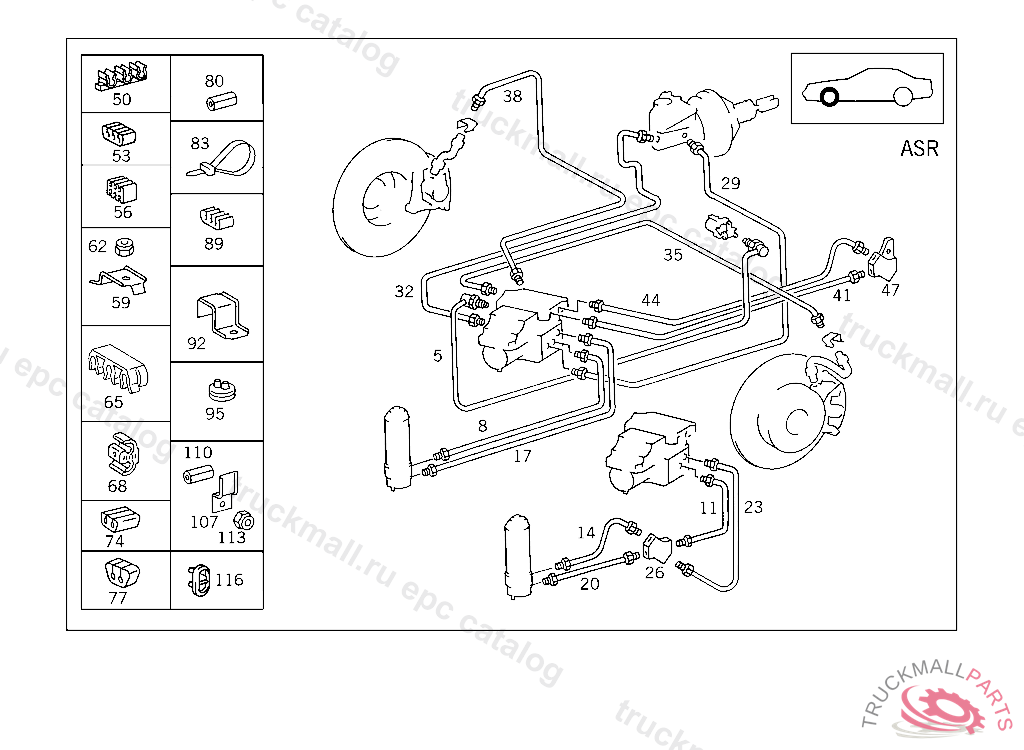

Поз.
Артикул
Описание
5
BRAKE HOSE FROM ASR CHARGING PUMP TO HYDRAULIC UNIT, F 102744
5
BRAKE HOSE FROM ASR CHARGING PUMP TO HYDRAULIC UNIT
8
LINE FROM HYDRAULIC UNIT,CONNECTION "P",TO ACCUMULATOR,CONNECTION: "P"
17
LINE FROM DISTRIBUTOR TO REAR HEIGHT CONTROL VALVE
17
LINE , Replaced By: A1234209328
17
LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A1294202728
29
LINE , Replaced By: A1234207228
29
LINE FROM MASTER CYLINDER TO ADAPTER FITTING, 000 193701 003 097469 086 006508 093 007717 102,103 209243 183 013349 190 020074 193 000014 200 006559 283 001514 INAPPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)
29
LINE FROM REAR MASTER CYLINDER TO HYDRAULIC UNIT,CONNECTION: "V"
32
LINE FROM FRONT MASTER CYLINDER TO HYDRAULIC UNIT,CONNECTION: "H"
32
LINE FROM BRAKE POWER REGULATOR TO LEFT FRONT WHEEL
32
LINE , Replaced By: A1234209428
35
LINE , Replaced By: A1234206228
35
LINE FROM HEIGHT CONTROL VALVE TO LEFT SPRING-LOAD ACCUMULATOR
38
LINE FROM HYDRAULIC UNIT TO RIGHT FRONT WHEEL
38
LINE FROM BRAKE POWER REGULATOR TO RIGHT FRONT WHEEL
38
LINE , Replaced By: A1234209928
41
LINE FROM HYDRAULIC UNIT TO ADAPTER FITTING,REAR RIGHT
41
LINE FROM HYDRAULIC UNIT TO ADAPTER FITTING,REAR RIGHT, F 102744 ALSO INSTALLED IN F 104063
44
LINE FROM HYDRAULIC UNIT TO ADAPTER FITTING,REAR LEFT
44
LINE FROM HYDRAULIC UNIT TO ADAPTER FITTING,REAR LEFT
47
CONNECTOR , F 102744 ALSO INSTALLED IN F 104063
