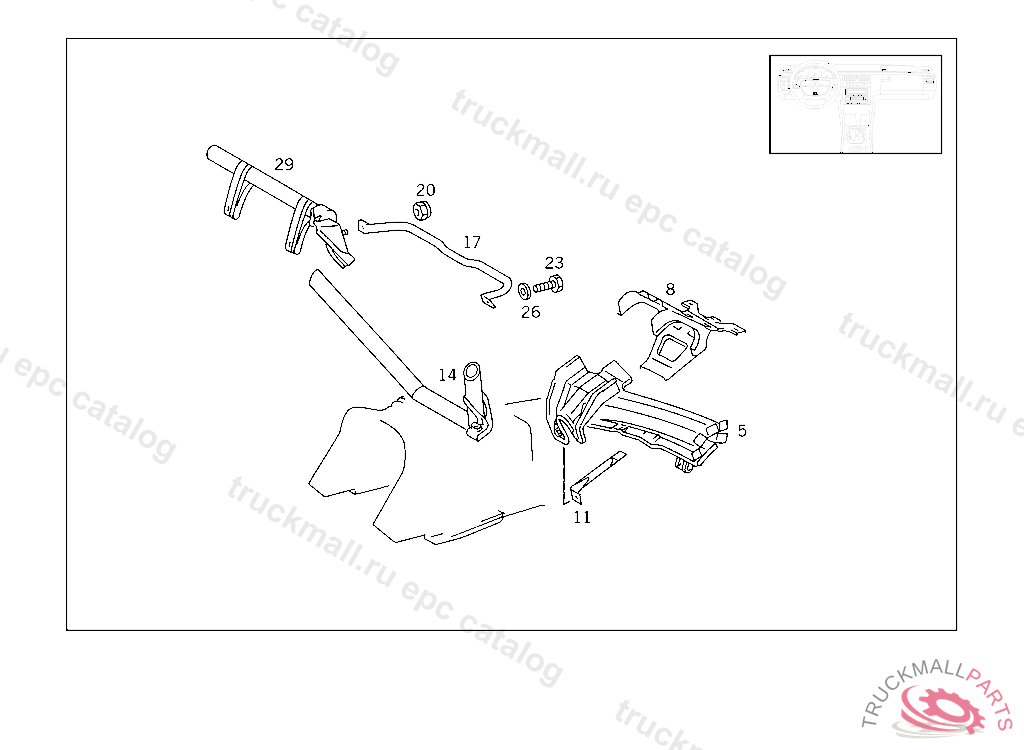

Поз.
Артикул
Описание
5
SUPPORT INSTRUMENT PANEL,RIGHT
5
SUPPORT INSTRUMENT PANEL,LEFT
8
CONSOLE STEERING COLUMN JACKET TUBE MOUNTING
8
CONSOLE STEERING COLUMN JACKET TUBE MOUNTING
11
STRUT BETWEEN DIAGONAL STRUT AND STEERING COLUMN JACKET TUBE MOUNTING CONSOLE
14
STRUT BELOW INSTRUMENT PANEL,CENTRAL
14
STRUT BELOW INSTRUMENT PANEL,CENTRAL
17
SUPPORT ON STRUT BELOW INSTRUMENT PANEL CENTER
17
SUPPORT ON STRUT BELOW INSTRUMENT PANEL CENTER
20
NUT HORN TO BRACKET M8
20
NUT , Replaced By: N913023008003
23
SCREW BRACKET TO THROTTLE HOUSING
23
SCREW , Replaced By: A1249902101
26
WASHER EXHAUST MUFFLER TO STRAP
26
WASHER , Replaced By: N000125008443
29
SUPPORT INSTRUMENT PANEL,LEFT, TO BE ADAPTED DURING ASSEMBLY
29
SUPPORT INSTRUMENT PANEL,RIGHT, TO BE ADAPTED DURING ASSEMBLY
