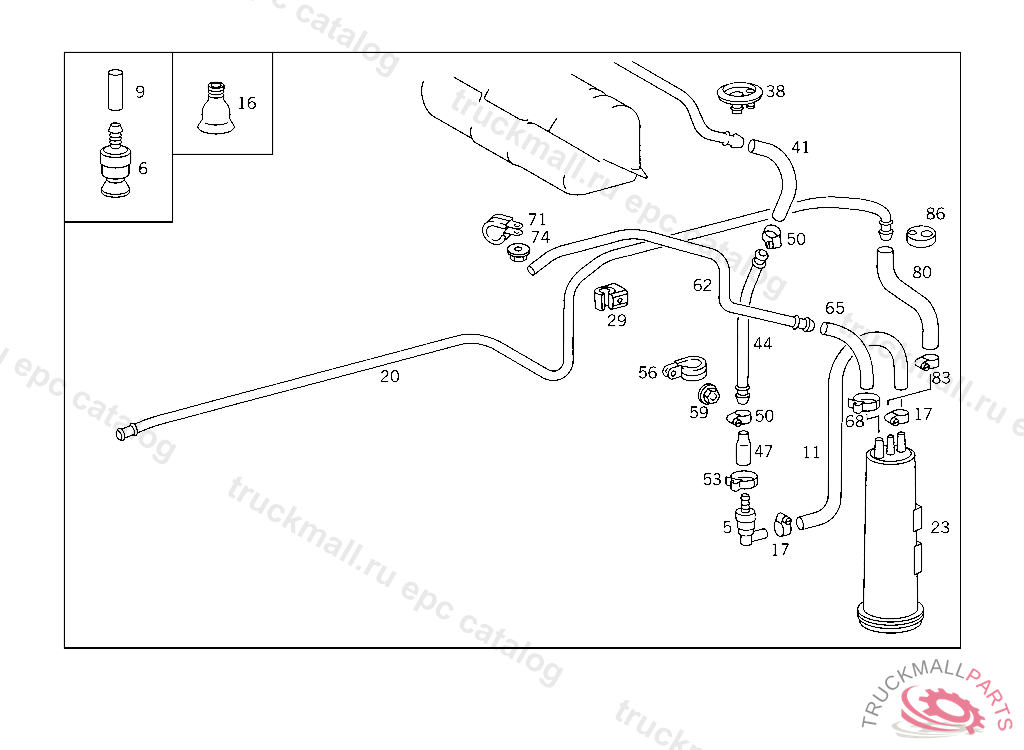

Поз.
Артикул
Описание
5
VALVE BREATHER LINE,K 169122
5
VALVE BREATHER LINE,K 169122
11
HOSE VENT VALVE TO ACTIVATED CHARCOAL FILTER
17
CLAMP CHECK VALVE,K 169122
20
BREATHER PIPE
23
ACTIVATED CHARCOAL FILTER
23
ACTIVATED CHARCOAL FILTER , Replaced By: A1294701259
23
ACTIVATED CHARCOAL FILTER , A 363212
23
ACTIVATED CHARCOAL FILTER , A 363212
29
CLAMP , Replaced By: A0009950577
29
CLAMP , Replaced By: A0009957465
29
HOSE BRACKET FRONT CROSS MEMBER
38
GASKET BREATHER LINE TO BREATHER VALVE
41
HOSE FROM FEED LINE TO FILTER 240 MM
41
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
41
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
44
BREATHER PIPE BREATHER LINE TO BREATHER VALVE, A 290166 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE FROM A 290167 WITH CODE 805
44
BREATHER PIPE BREATHER LINE TO BREATHER VALVE, A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
47
HOSE , Replaced By: A2024769026
47
HOSE BREATHER LINE TO BREATHER VALVE 45 MM
50
CLAMP CHECK VALVE,K 169122
53
LOOM TIE , Replaced By: A1249972090
53
LOOM TIE , Replaced By: A0039979090
56
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
59
NUT COVERING TO CAB FIRE WALL
62
BREATHER PIPE VENT HOSE TO ACTIVATED CHARCOAL FILTER
65
HOSE VENT HOSE TO ACTIVATED CHARCOAL FILTER
68
LOOM TIE , Replaced By: A1249972090
68
LOOM TIE , Replaced By: A0039979090
71
CLAMP CABLE HARNESS MOUNTING
74
NUT COVERING TO CAB FIRE WALL
80
HOSE , Replaced By: A1020782481
80
HOSE FROM GAS SEPARATOR TO CARBURETOR
80
HOSE , ORDER BY THE METER
83
CLAMP CHECK VALVE,K 169122
86
BRACKET
