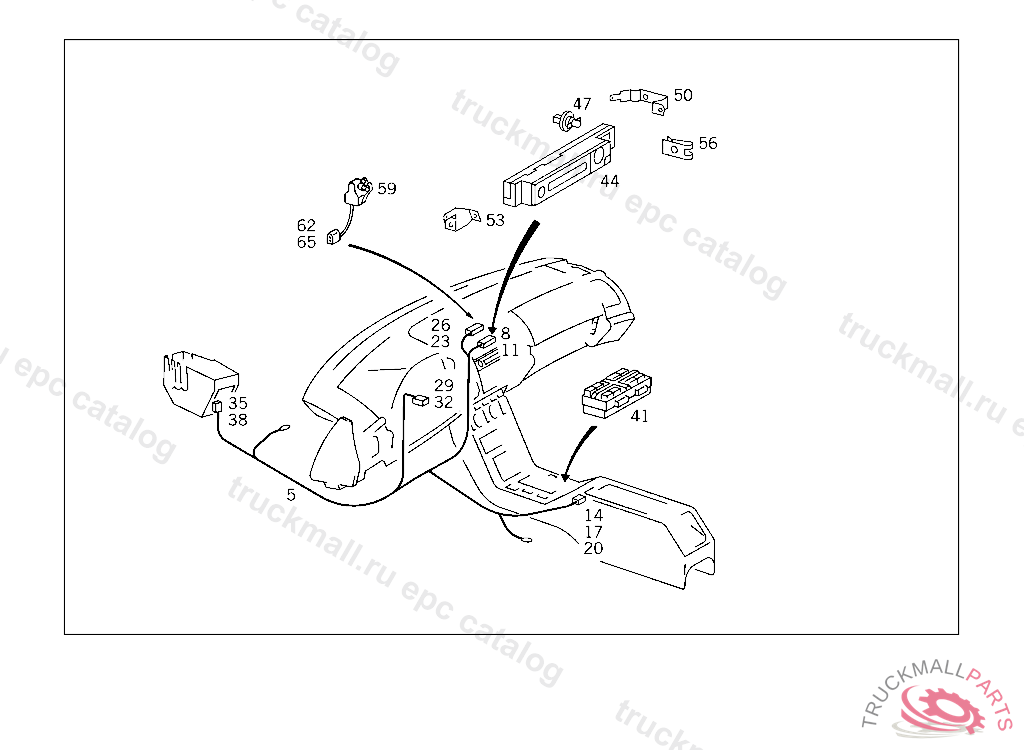

Поз.
Артикул
Описание
5
CABLE HARNESS ON-BOARD COMPUTER, A 328810 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM A 328811 WITH CODE 806
5
CABLE HARNESS ON-BOARD COMPUTER, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
8
PLUG SOCKET CONTROL UNIT
11
ROUND PIN BUSHING VANITY MIRROR ELECTRIC CABLE TO INTERIOR LAMP
14
PIN BUSHING HOUSING SENSOR
17
COVERTO 009 545 16 28
20
ROUND PIN BUSHING2.5 MM2
23
PIN BUSHING HOUSING TELL-TALE LAMP ASD
26
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
29
PLUG INSTRUMENT CLUSTER
32
ROUND PIN BUSHING1 MM
35
PLUG FUSE BOX IN LUGGAGE COMPARTMENT A
38
CONTACT SPRING0.5-1.5 MM2
38
CONTACT SPRING1-2.5 MM2
38
CONTACT SPRING2,5 MM2
38
CONTACT SPRING
38
CONTACT SPRING , Replaced By: A0045455226
38
CONTACT SPRING , Replaced By: A0115458326
41
SWITCH BOX OPERATING UNIT
44
INSTRUMENT CLUSTER (ON-BOARD COMPUTER)
47
SCREW ON-BOARD COMPUTER LIGHTING
47
BULB ON-BOARD COMPUTER LIGHTING, Replaced By: N000000003635
50
BRACKET ON-BOARD COMPUTER
53
BRACKET ON-BOARD COMPUTER
56
LOCK FUEL LINE
59
SWITCH SPECTACLE SHELF
62
PLUG HOUSING
65
PLUG PIN
