Поз.
Артикул
Описание

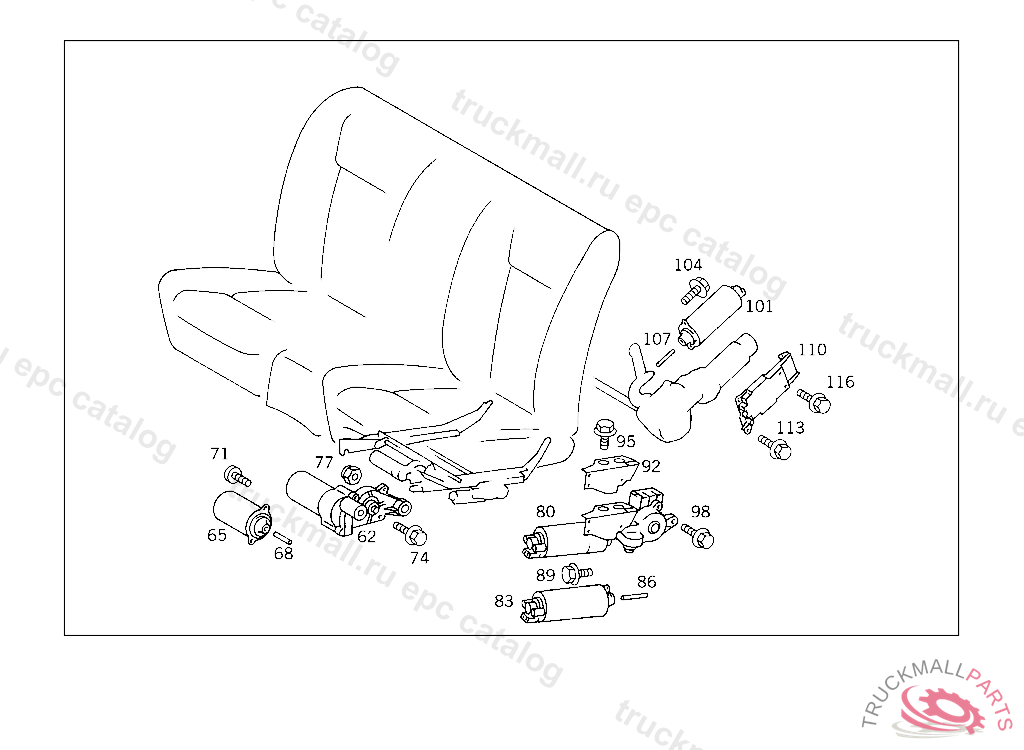

62
ELECTRIC MOTOR HEIGHT ADJUSTMENT
65
ELECTRIC MOTOR HEIGHT ADJUSTMENT
68
SHAFT
71
SCREW MOTOR TO GEARING
74
SCREW
74
SCREW , Replaced By: A1409901122
77
NUT BATTERY NEG. POLE
80
ELECTRIC MOTOR FORE-AND-AFT ADJUSTMENT
83
ELECTRIC MOTOR FORE-AND-AFT ADJUSTMENT
86
SHAFT
89
SCREW SWITCH TO BACKREST ADJUSTER
92
SWITCH
95
SCREW SWITCH TO BACKREST ADJUSTER
98
SCREW GEARING TO SEAT GUIDE
101
ELECTRIC MOTOR BACKREST ADJUSTER
104
SCREW SWITCH TO BACKREST ADJUSTER
107
SHAFT
110
SWITCH LEFT
110
SWITCH RIGHT
113
SCREW SWITCH TO BACKREST ADJUSTER
116
SCREW GLOVE COMPARTMENT LID WITH DAMPER
999
ELECTRIC MOTOR ELECTRICALLY ADJUSTABLE HEADREST WITH PROGRAMMING
