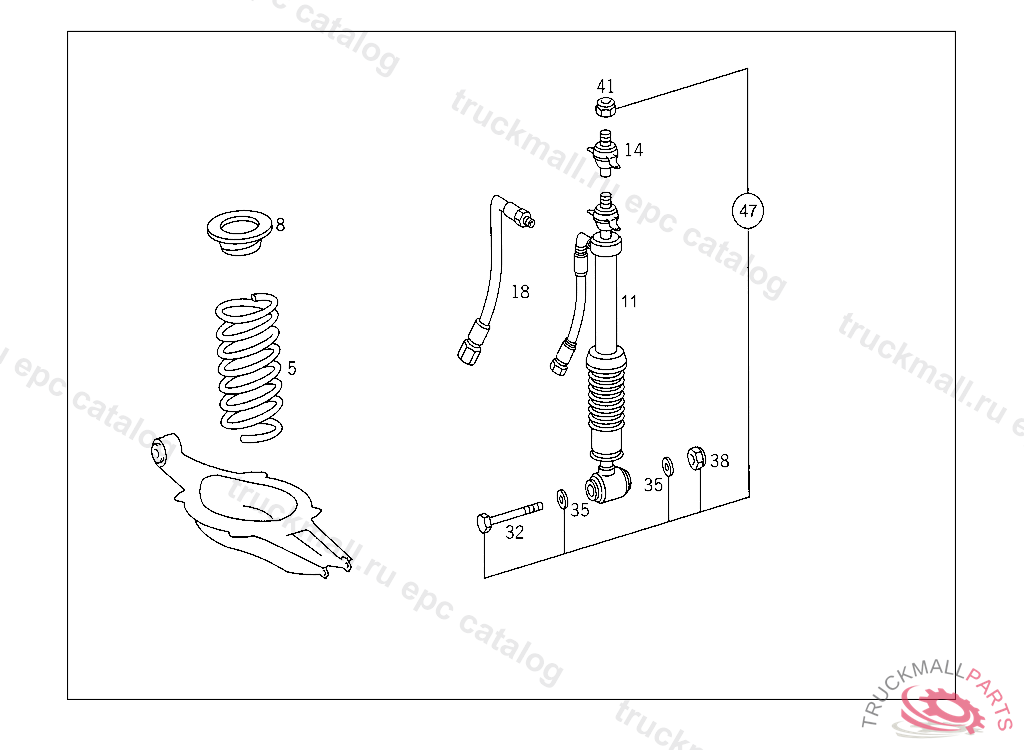

Поз.
Артикул
Описание
5
REAR SPRING AS REQUIRED
5
REAR SPRING AS REQUIRED
5
REAR SPRING AS REQUIRED
5
REAR SPRING AS REQUIRED
8
SHIM AS REQUIRED, NUMBER OF BURLS: 3 (18 MM)
8
SHIM AS REQUIRED, NUMBER OF BURLS: 2 (13 MM)
8
SHIM AS REQUIRED, NUMBER OF BURLS: 1 (8MM)
8
SHIM AS REQUIRED, NUMBER OF BURLS: 4 (23 MM)
8
SHIM AS REQUIRED, NUMBER OF BURLS: 2 (13 MM)
8
SHIM AS REQUIRED, NUMBER OF BURLS: 4 (23 MM)
8
SHIM AS REQUIRED, NUMBER OF BURLS: 3 (18 MM)
8
SHIM AS REQUIRED, NUMBER OF BURLS: 1 (8 MM)
11
HYDROPN. SPRING LEG RANGE OF DELIVERY, ONLY REPLACEABLE BY PAIRS, Replaced By: A1403209613, +001A1409900299
11
HYDROPN. SPRING LEG RANGE OF DELIVERY, ONLY REPLACEABLE BY PAIRS, Replaced By: A1403208713
11
HYDROPN. SPRING LEG RANGE OF DELIVERY
11
HYDROPN. SPRING LEG RANGE OF DELIVERY, ONLY REPLACEABLE BY PAIRS
14
RUBBER BUFFER
18
HOSE ,A 038791
32
SCREW BRACKET TO CONSOLE
35
WASHER
38
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
38
NUT , Replaced By: N910113012003
41
NUT , Replaced By: N910113010000
41
NUT STRAP TO BRACKET
47
TS FASTENER PARTS HYDROPNEUMATIC SPRING LEG MOUNTING
