Поз.
Артикул
Описание
5

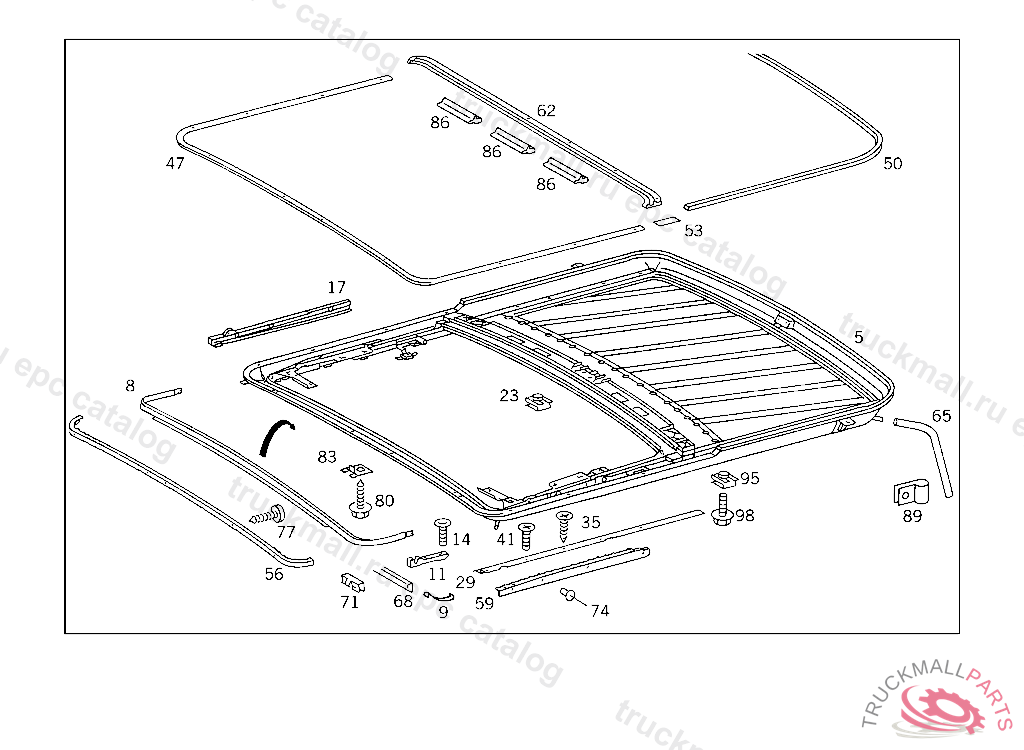

FRAME NON-MAGNETIC SLIDING ROOF WITH AUTO PILOT SYSTEM
5
FRAME WITH DRAFT DEFLECTOR
5
FRAME WITH DRAFT DEFLECTOR
8
BAFFLE DRAFT DEFLECTOR
9
SPRING AT BOTTOM FRAME, FOR DEFLECTOR
11
MOUNTING AT FRAME, FOR DRAFT DEFLECTOR,A 141900
14
SCREW , Replaced By: A0009900729
14
SCREW MOUNTING TO DEFLECTOR,A 141900, Replaced By: N000000003307
14
SCREWTO 000 820 07 51
17
GUIDE ON FRAME,LEFT
17
GUIDE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. A 151320, Replaced By: A1407820931
17
GUIDE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. A 151320, Replaced By: A1407821031
17
GUIDE ON FRAME,RIGHT
23
NUT RETAINER BOTTOM FRAME
29
SLIDING RAIL ,A 219230, Replaced By: A1407821326, +001A1407820413, +001A1407821426
29
SLIDING RAIL , Replaced By: A1407821426, +001A1407820413, +001A1407821326
29
SLIDING RAIL FRONT RIGHT,A 219231
29
SLIDING RAIL FRONT LEFT,A 219231
35
SCREW
41
SCREW
47
SEAL BETWEEN TOP AND BOTTOM FRAMES
50
PAD
53
PAD BOTTOM FRAME
56
RAIL FRONT
59
RAIL LEFT
59
RAIL RIGHT
62
RAIL REAR
65
HOSEWASSERABLAUF HINTEN 250 MM
65
HOSE WATER DRAIN,FRONT 1420 MM
68
COVER RAIL ,A 219230, Replaced By: A1407820413, +001A1407821326, +001A1407821426
68
COVER RAIL , Replaced By: A1407800913
68
RAIL COVER RAIL TO BOTTOM FRAME,FRONT
71
CLIP COVER RAIL TO BOTTOM FRAME,FRONT
74
RIVET MOUNTING RAIL TO REINFORCEMENT FRAME
77
SCREW MOUNTING RAIL TO REINFORCEMENT FRAME
80
SCREW FRAME TO REINFORCEMENT FRAME
83
LOCK FRAME TO REINFORCEMENT FRAME
86
PAD
89
CLAMP
95
NUT RETAINER , Replaced By: A3229900091
98
SCREW , 183 003776 190 004444
