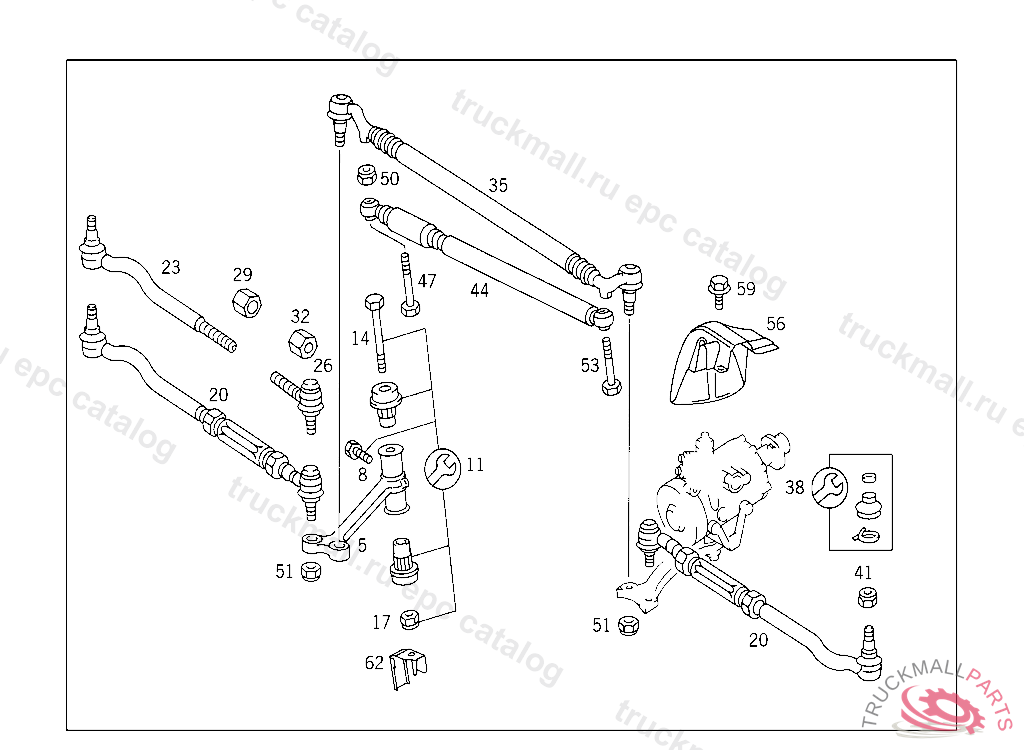

Поз.
Артикул
Описание
5
INTERMEDIATE LEVER
5
INTERMEDIATE LEVER , Replaced By: A2404600119
5
INTERMEDIATE LEVER
8
SCREW ,12/96
8
SCREW CLAMP ON BRACKET
11
REPAIR KIT INTERMEDIATE LEVER
14
SCREW INTERMEDIATE LEVER TO PIVOT BEARING M14X1.5X130
14
SCREW INTERMEDIATE LEVER TO PIVOT BEARING,01/97
17
NUT , Replaced By: N910113014001
17
NUT BRACKET TO SIDE MEMBER
17
NUT FOR TAPPING SCREW SPRING CONTROL ARM TO WHEEL BEARING
20
TIE ROD
23
JOINT R.H. THREAD
26
JOINT L.H. THREAD
29
CLAMPING PIECE R.H. THREAD
32
CLAMPING PIECE L.H. THREAD
35
DRAG LINK
38
REPAIR KIT TIE ROD BOOT AND DRAG LINK BOOT,RESP.
41
NUT SUPPORT TO SIDE MEMBER
41
NUT PLATFORM MOUNTING
44
SHOCK ABSORBER (STEERING SHOCK ABSORBER)
47
SCREW , Replaced By: N000961010031
47
HEXAGON HEAD BOLTM10X40, TO BE ADAPTED DURING ASSEMBLY, Replaced By: N304017010036
47
SCREW BRACKET TO FRAME SIDE MEMBER
47
SCREW , Replaced By: N308676010023
50
NUT STRAP TO BRACKET
50
NUT , Replaced By: N910113010002
51
NUT , Replaced By: N910113012002
51
NUT SUPPORT TO SIDE MEMBER
53
SCREW STEERING SHOCK ABSORBER TO DRAG LINK
56
COVER PLATE STEERING GEAR
56
COVER PLATE STEERING GEAR
59
SCREW PROTECTIVE PLATE, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
62
PROTECTIVE PLATE INTERMEDIATE LEVER
62
PROTECTIVE PLATE , Replaced By: A1404630290
62
PROTECTIVE PLATE INTERMEDIATE LEVER
