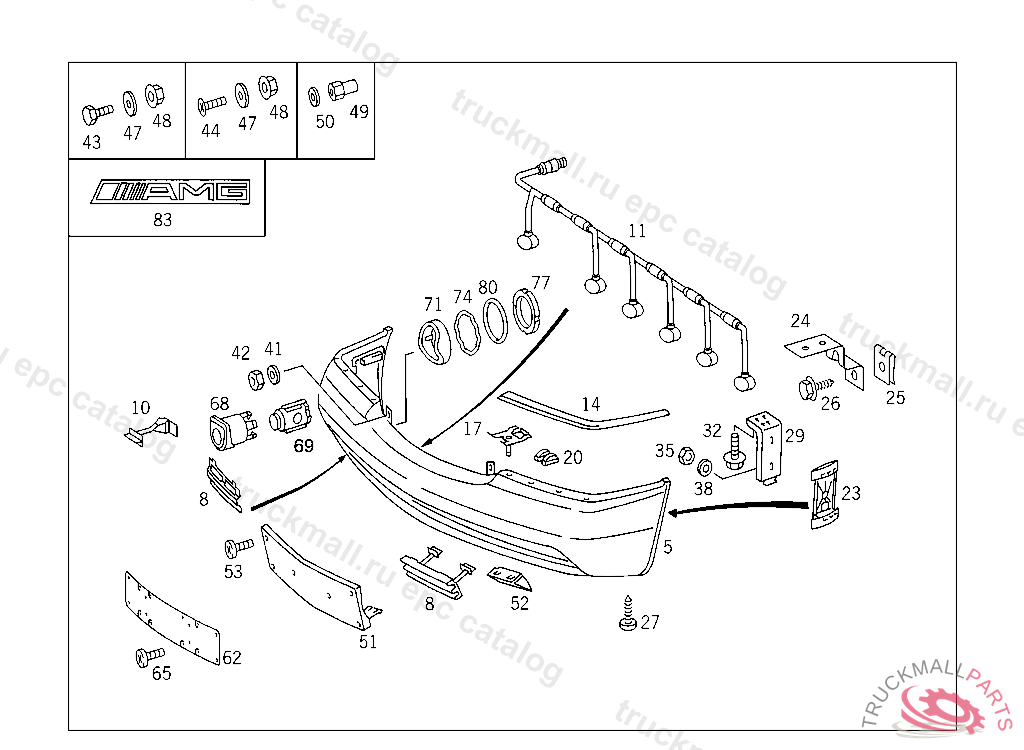

Поз.
Артикул
Описание
5
PANELLING PARKTRONIC SYSTEM (PTS) GEPRIMERT, TO BE ADAPTED TO VEHICLE PRIOR TO PAINTING FOR COLOR NUMBERS AND PAINT CODES USED FOR OUTSIDE PARTS,SEE FOOTNOTE 901 TO BE PAINTED PRIOR TO INSTALLATION A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
5
FRONT BUMPER FACE BAR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 107503, Replaced By: A1408801970
5
FRONT BUMPER FACE BARGEPRIMERT, FOR COLOR NUMBERS AND PAINT CODES USED FOR OUTSIDE PARTS,SEE FOOTNOTE 920 TO BE PAINTED PRIOR TO INSTALLATION ( 06/96) ALSO INSTALLED ON VEHICLES WITH CODE 807
5
FRONT BUMPER FACE BAR PARKTRONIC SYSTEM (PTS) GEPRIMERT, FOR COLOR NUMBERS AND PAINT CODES USED FOR OUTSIDE PARTS,SEE FOOTNOTE 920 TO BE PAINTED PRIOR TO INSTALLATION A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
5
PANELLINGGEPRIMERT, TO BE ADAPTED TO VEHICLE PRIOR TO PAINTING FOR COLOR NUMBERS AND PAINT CODES USED FOR OUTSIDE PARTS,SEE FOOTNOTE 901 TO BE PAINTED PRIOR TO INSTALLATION A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
8
FLAP LEFT
8
FLAP LEFT, TO BE PAINTED PRIOR TO INSTALLATION A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95 FOR COLOR NUMBERS AND PAINT CODES USED FOR OUTSIDE PARTS,SEE FOOTNOTE 901
8
FLAP RIGHT,TOWING BRACKET
8
FLAP RIGHT, TO BE PAINTED PRIOR TO INSTALLATION A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95 FOR COLOR NUMBERS AND PAINT CODES USED FOR OUTSIDE PARTS,SEE FOOTNOTE 901
10
HANGING STRAP , FROM IDENT NO. C 020765 ALSO INSTALLED ON B 891779 - C 020763 WITH CODE 859
11
CABLE HARNESS PARKTRONIC SYSTEM (PTS)
14
BAFFLE PLATE BUMPER PANELLING,RIGHT, A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
14
BAFFLE PLATE BUMPER PANELLING,LEFT, A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
17
CLIP ORNAMENTAL COVER TO BUMPER
17
CLIP ORNAMENTAL COVER TO BUMPER
17
CLIP ORNAMENTAL COVER TO BUMPER
17
CLIP ORNAMENTAL COVER TO BUMPER
20
HOLDDOWN CLIP ORNAMENTAL COVER TO BUMPER
23
GUIDE LEFT
23
GUIDE RIGHT
24
ANGLE , FROM MODEL YEAR'95
25
LOCK , A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
26
TAPPING SCREW , A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
26
COMBINATION BOLT , FROM MODEL YEAR'95
27
SHEET METAL SCREW ELECTRIC CABLE TO CABLE DUCT
29
ANGLE ON RIGHT WHEELHOUSE BRACKET
29
ANGLE ON LEFT WHEELHOUSE BRACKET
32
SCREW BUMPER TO WHEELHOUSE ANGLE
35
NUT BALL PIVOT TO LEVER
38
WASHER
41
WASHER BUMPER TO CROSS MEMBER
42
NUT , Replaced By: N304032008006
42
NUT
44
SCREW GUIDE TO STEERING COLUMN END,5 227753
47
WASHER , Replaced By: N009021005205
47
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
48
NUT AMG VEHICLES, A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
49
THREADED CHUCK
50
WASHER BUMPER TO CROSS MEMBER
51
LICENSE PLATE MOULDING FOR SWITZERLAND, A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95 A 328810 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM A 328811 WITH CODE 806NO.9999 TO BE PAINTED PRIOR TO INSTALLATION
51
LICENSE PLATE MOULDING , A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807NO.9999 TO BE PAINTED PRIOR TO INSTALLATION
51
LICENSE PLATE MOULDING FOR ITALY, A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95 A 328810 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM A 328811 WITH CODE 806NO.9999 TO BE PAINTED PRIOR TO INSTALLATION
52
BRACKET OUTDOOR TEMPERATURE SENSOR, FROM MODEL YEAR'95
53
FILL.HD.SCR. W DECOUPLER FOR SWITZERLAND
53
SCREW MOUNTING RAIL TO BUMPER
53
SCREW , Replaced By: A2109900036
62
PLATE ON CUSTOMS LICENSE PLATE MOULDING
65
SCREW FOR LICENSE PLATE
68
CASE PARKTRONIC SYSTEM (PTS) LATERAL
68
CASE PARKTRONIC SYSTEM (PTS) CENTRAL
69
SENSOR PARKTRONIC SYSTEM (PTS)
71
SPACER RING
74
WASHER
77
NUT , A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
77
NUT PARKTRONIC SYSTEM (PTS), A 328810 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM A 328811 WITH CODE 806
80
DAMPING RING
83
NAME PLATE"AMG", FROM IDENT NO. C 020765 ALSO INSTALLED ON B 891779 - C 020763 WITH CODE 859
