Mercedes A2047400735 - Замок

GLA 250 4-MATIC 156.946

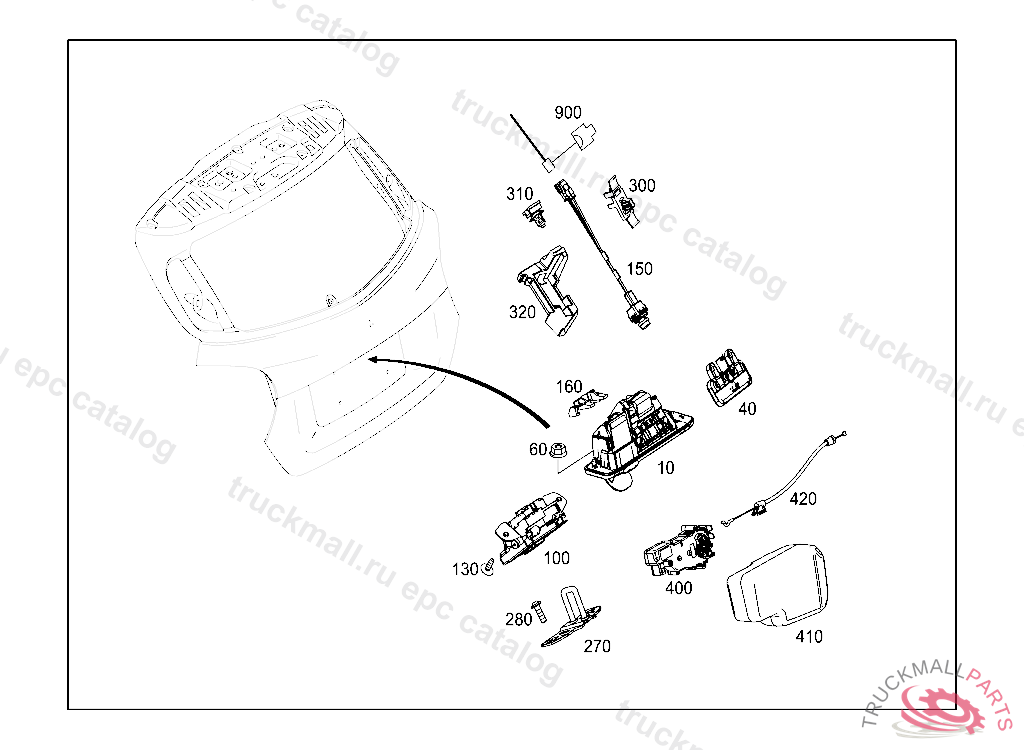

74 REAR PANEL DOOR - 030 CLOSING SYSTEM
  • Поз.
    Артикул
    Описание
  • 10
    RELEASE HANDLE REAR-END DOOR RELEASE, A 20150330
  • 10
    RELEASE HANDLE AT REAR PANEL DOOR
  • 40
    PUSH-BUTTON SWITCH MOULDING TYPE HANDLE, J 53092220070910808
  • 40
    PUSH-BUTTON SWITCH TRUNK LID RELEASE
  • 60
    NUT , Replaced By: N913023006001
  • 100
    LOCK AT REAR PANEL DOOR, F 18125720080502
  • 100
    LOCK AT REAR PANEL DOOR, F 73330720110717
  • 130
    BOLT LOCK TO REAR PANEL DOOR M6X17,2
  • 150
    CAMERA REVERSING CAMERA IN HANDLE STRIP, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
  • 160
    BRACKET CONNECTOR, BACKUP CAMERA
  • 270
    U-SHAPED STRIKER TO REAR END CENTER ASSEMBLY
  • 280
    BOLT LOCK TO REAR PANEL DOOR M6X17,2
  • 300
    BRACKET LINE ATTACHMENT, J 20130917 N 07658220131018
  • 310
    BRACKET PLUG MOUNTING 6.5 - 7 MM
  • 320
    BRACKET LINE ATTACHMENT
  • 400
    DRIVE POWER CLOSING SYSTEM
  • 410
    INSULATION DRIVE
  • 420
    CONTROL CABLE REAR PANEL DOOR
  • 900
    SOCKET HOUSING TRUNK LID RELEASE SWITCH 4-PIN MQS,S15/1
