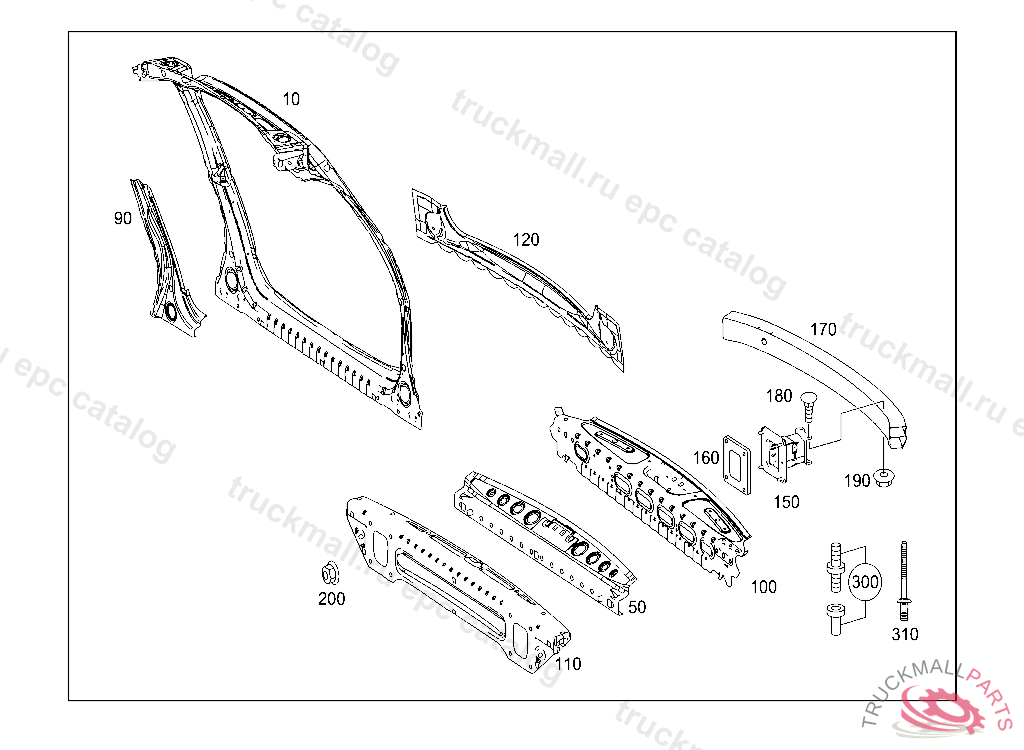

Поз.
Артикул
Описание
10
REINFORCEMENT , A 44851420080709809
10
REINFORCEMENT , A 32101520070928808
50
REINFORCEMENT LEFT
90
REINFORCEMENT RIGHT
90
REINFORCEMENT LEFT
100
REAR END CENTER ASSEMBLY. REAR END CENTER ASSEMBLY , A 32101520070928808
100
REAR APRON , A 44851420080709809
110
REAR END CENTER ASSEMBLY. REAR END CENTER ASSEMBLY , A 32101520070928808
110
REAR APRON , A 44851420080709809
120
PANELLING REAR BODY PANEL,BOTTOM
150
CONSOLE RIGHT
150
CONSOLE LEFT
160
SEAL REAR END
170
SUPPORT
180
SCREW FRONT MODULE M10X120
190
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
200
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
300
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
310
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
