Поз.
Артикул
Описание

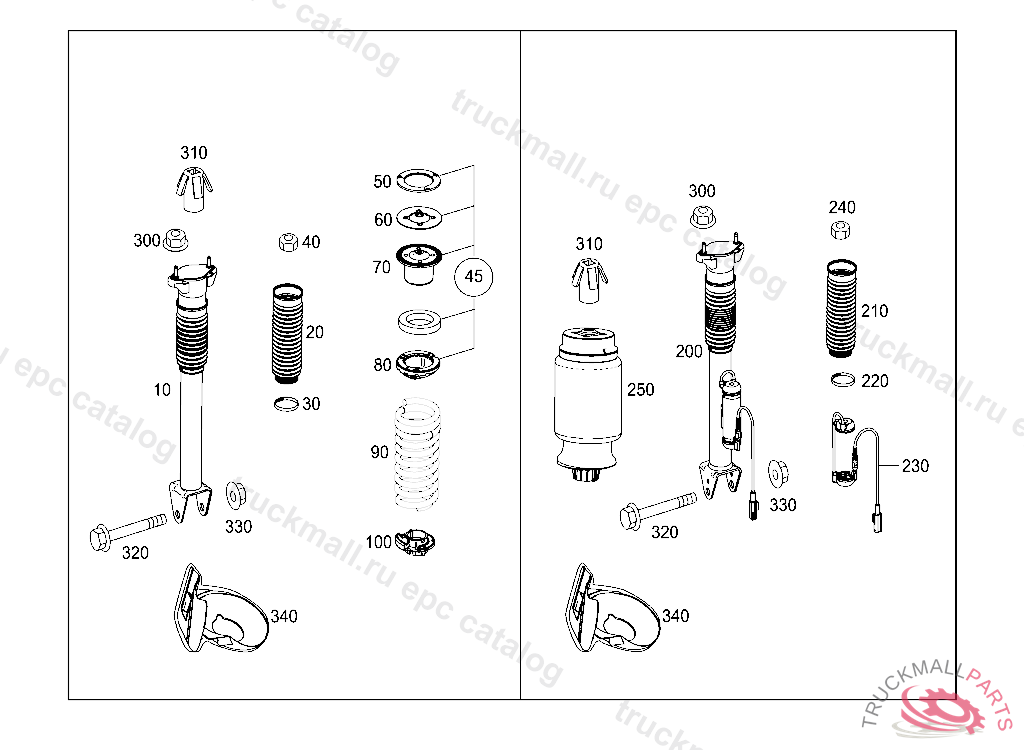

10
SHOCK ABSORBER REAR LEFT AND RIGHT
10
SHOCK ABSORBER REAR LEFT AND RIGHT, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A1663201730
10
SHOCK ABSORBER REAR LEFT AND RIGHT, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A1663201130
10
SHOCK ABSORBER REAR LEFT AND RIGHT
10
SHOCK ABSORBER REAR LEFT AND RIGHT
20
PROTECTIVE TUBE REAR SHOCK ABSORBERS
20
PROTECTIVE TUBE REAR SHOCK ABSORBERS
30
CLAMPING COLLAR REAR SHOCK ABSORBERS
40
HEXAGON NUT SHOCK ABSORBER TO BEARING M10X1
45
TS SPRING PLATE
50
SPRING SHIM LEFT AND RIGHT
60
SPRING SHIM LEFT AND RIGHT
70
SPRING PLATE LEFT AND RIGHT UPPER SECTION
80
SPRING PLATE TOP LEFT AND RIGHT I - E, A 04493220061002807
90
REAR SPRING COLOR MARKING: 1 X PINK
90
HELICAL SPRING WHITE
100
SPRING PLATE BOTTOM SECTION, LEFT AND RIGHT
200
SHOCK ABSORBER REAR LEFT AND RIGHT
200
SHOCK ABSORBER REAR LEFT AND RIGHT, L 00000120120601 M 00000120120601 A 13278520120918
210
PROTECTIVE TUBE REAR SHOCK ABSORBERS
210
PROTECTIVE TUBE REAR SHOCK ABSORBERS
220
CLAMPING COLLAR REAR SHOCK ABSORBERS
230
WIRING HARNESS HYDROPNEUMATIC SPRING LEG
240
HEXAGON NUT SHOCK ABSORBER TO BEARING M10X1
250
PNEUMATIC SPRING REAR LEFT AND RIGHT, ALSO USE OFF-ROAD COVER FOR SPRING
300
NUT DAMPER FASTENING LEFT AND RIGHT M8
310
SEAL HOLDER FASTENING ELEMENT BETWEEN BODY AND SPRING ELEMENT
320
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M16 X 1.5 X 100
330
NUT SPRING STRUT ON WISHBONE M16X1,5
340
COVER PLATE LEFT, TO BE ADAPTED DURING ASSEMBLY
340
COVER PLATE RIGHT, TO BE ADAPTED DURING ASSEMBLY
