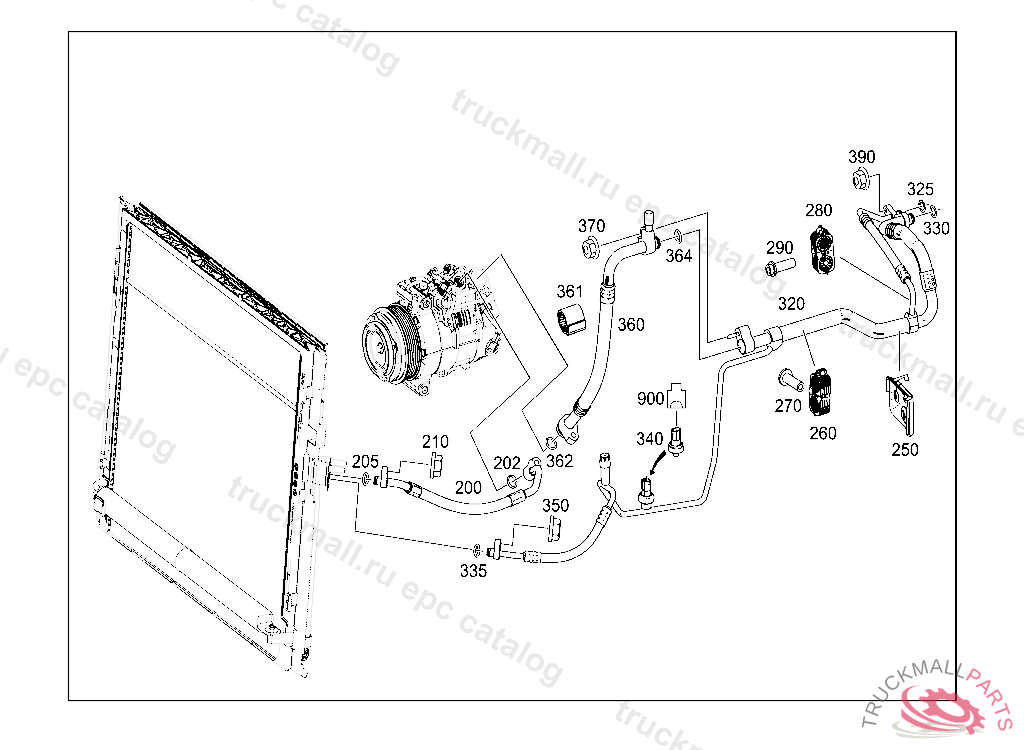

Поз.
Артикул
Описание
200
REFRIGERANT LINE
202
SEALING RING PIPE LINE TO REFRIGERANT COMPRESSOR 10.6X2 MM
205
O-RING PRESSURE LINE TO CONDENSER 9.5X2.6
210
NUT , Replaced By: N913023006001
250
SEALING FRAME
260
LINE FASTENER HIGH PRESSURE LINE TO BRACKET
260
LINE FASTENER
270
THREADED BUSHING CABLE HOLDER
320
REFRIGERANT LINE
325
O-RING PRESSURE LINE TO CONDENSER 9.5X2.6
330
SEALING RING SUCTION LINE 13.7X2.5 MM
335
O-RING PRESSURE LINE TO CONDENSER 9.5X2.6
340
PRESSURE SENSOR
350
NUT , Replaced By: N913023006001
360
REFRIGERANT LINE , L 00169920130630 M 00169920130630 A 13822220120928803
361
SPACER RING TO INDUCTION LINE
362
SEALING RING SUCTION LINE 23.8X2.4 MM
364
O-RING SEPARATION POINT 16.7X2.5
370
NUT , Replaced By: N913023006001
390
NUT , Replaced By: N913023006001
900
CONNECTOR HOUSING COOLANT PRESSURE/TEMPERATURE SENSOR 3-PIN MQS,B12
999
SPACER RING REFRIGERANT LINE, L 00088820121231 M 00088820121231 A 17053420121205
