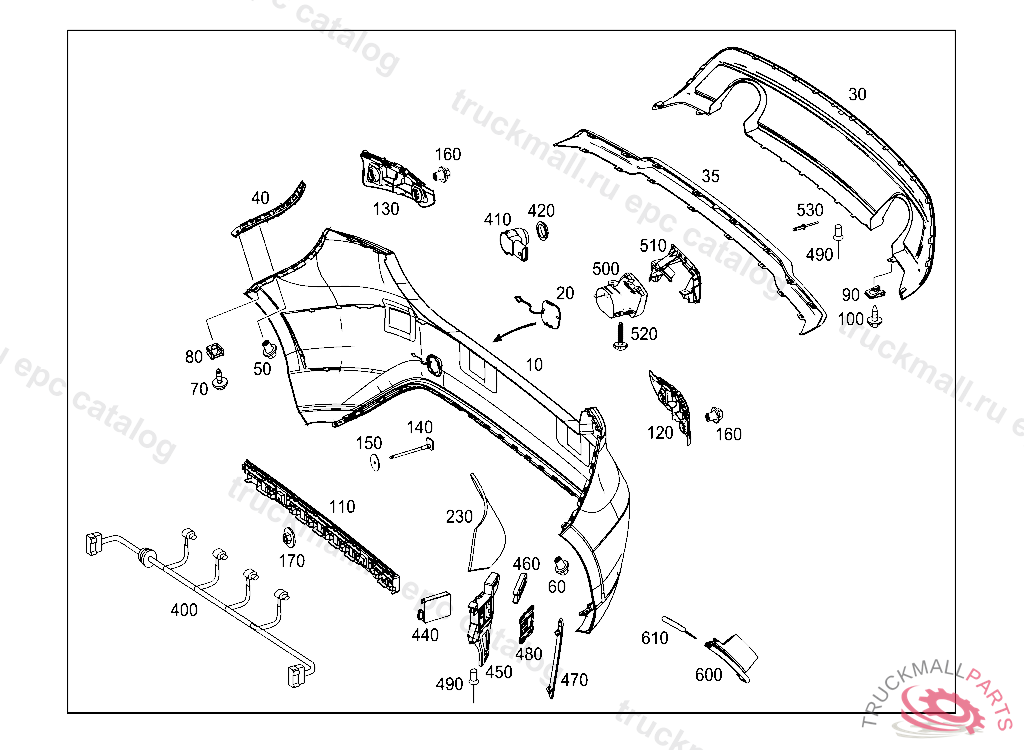

Поз.
Артикул
Описание
10
TRIM BUMPER REAR BUMPER, 9999QFT246L9000 COLORLESS
10
TRIM BUMPER REAR BUMPER, 9999QFT246L9000 COLORLESS
10
TRIM BUMPER REAR BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
10
TRIM BUMPER REAR BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
20
COVER TOWING EYE TOWING EYE, TO BE PAINTED PRIOR TO INSTALLATION
20
COVER TOWING EYE TOWING EYE
30
TRIM BUMPER REAR BUMPER, BOTTOM
30
TRIM BUMPER REAR BUMPER, BOTTOM
30
TRIM BUMPER REAR BUMPER, BOTTOM
40
MOUNTING RAIL LEFT
40
MOUNTING RAIL RIGHT
50
NUT GUIDE AT REAR FENDER, J 53092220070910808
50
NUT FROM PLASTIC OPEN FASTENING, RIGHT BASIC CARRIER, J 15031820130715 V 20131129
60
NUT FROM PLASTIC OPEN FASTENING, RIGHT BASIC CARRIER, J 15031820130715 V 20131129
60
NUT GUIDE AT REAR FENDER, J 53092220070910808
70
TAPPING SCREW BUMPER TO LEFT SIDE WALL
80
LOCK NUT BUMPER, BOTTOM SECTION 0,5-2,5MM
90
LOCK NUT BUMPER, BOTTOM SECTION 0,5-2,5MM
100
TAPPING SCREW BUMPER TO LEFT SIDE WALL
110
BASIC MOUNTING FOR BUMPER BUMPER, CENTER REAR
120
BASIC MOUNTING FOR BUMPER LEFT REAR BUMPER
130
BASIC MOUNTING FOR BUMPER RIGHT REAR BUMPER
140
MOUNTING PLATE BASIC CARRIER MOUNTING
150
WASHER REAR LATERAL GUIDE TO REAR END FLOOR,F 021177
160
NUT FROM PLASTIC OPEN FASTENING, RIGHT BASIC CARRIER, J 15031820130715 V 20131129
160
NUT GUIDE AT REAR FENDER, J 53092220070910808
170
NUT FENDER ON SIDE PANEL M6
230
FLAP INSULATION LATERAL LEFT AND RIGHT
230
FLAP INSULATION LATERAL RIGHT
230
FLAP INSULATION LATERAL LEFT
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM AND BLIND SPOT ASSIST
400
ELECTRICAL WIRING HARNESS BLIND SPOT ASSISTANT
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
400
ELECTRICAL WIRING HARNESS BLIND SPOT ASSISTANT
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
410
DISTANCE SENSOR PARKTRONIC SYSTEM, TO BE PAINTED PRIOR TO INSTALLATION
420
SPACER RING SENSOR
440
RADAR SENSOR LEFT AND RIGHT OUTSIDE, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
440
RADAR SENSOR LEFT AND RIGHT OUTSIDE, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
440
RADAR SENSOR LEFT AND RIGHT OUTSIDE, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
440
RADAR SENSOR LEFT AND RIGHT OUTSIDE, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE, Replaced By: A0009053303
440
RADAR SENSOR LEFT AND RIGHT OUTSIDE, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE, Replaced By: A0009052604
450
FIXTURE MOUNTING RAIL, RIGHT
450
MOUNTING RAIL LEFT
450
FIXTURE MOUNTING RAIL, LEFT
450
MOUNTING RAIL RIGHT
460
MOUNTING CLAMP BUMPER LOWER SECTION, J 53092220070910808
470
COVER GRILLE LEFT
470
COVER GRILLE RIGHT
480
CAP WHEEL ARCH
490
BLIND RIVET AT COVERING
600
WHEEL HOUSE COVERING LEFT
600
WHEEL HOUSE COVERING RIGHT
610
WHEEL HOUSE COVERING RIGHT
610
WHEEL HOUSE COVERING LEFT
