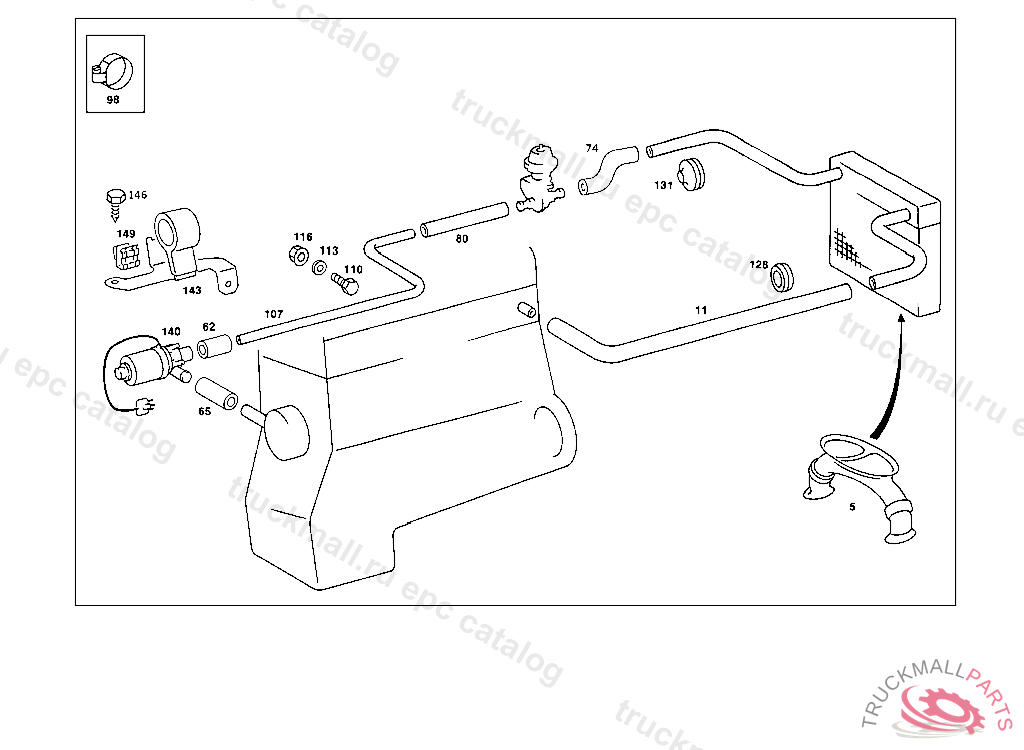

Поз.
Артикул
Описание
5
PIPE SOCKET WATER DRAIN,CENTER
11
HOSE FROM ENGINE TO HEAT EXCHANGER,F 146210
11
HOSE FROM ENGINE TO HEAT EXCHANGER
62
HOSE FROM RECIRCULATING PUMP TO RETURN LINE
65
HOSE FROM RECIRCULATING PUMP TO ENGINE,F 397993
74
HOSE FROM RIGHT HEAT EXCHANGER TO WATER VALVE
80
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR, ORDER BY THE METER
98
HOSE CLAMP LINE MOUNTING
98
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
98
CLAMP PRESSURE REGULATOR
98
CLAMP , Replaced By: N000000000667
98
CLAMP , Replaced By: A0059970190
107
PIPE LINE RETURN, A 350420 F 309850
107
PIPE LINE RETURN
110
SCREW COVER PLATE TO COVER PLATE M 6 X 10
110
SCREW , Replaced By: N304017006034
113
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
113
WASHER COMPRESSED AIR LINE TO BRACKET
116
NUT , Replaced By: N910112006001
116
NUT , Replaced By: N913023006001
116
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
128
GROMMET FEED LINE TO FIRE WALL,F 016102
131
GROMMET 34 MM
140
RECIRCULATING PUMP , FROM MODEL YEAR '81
140
RECIRCULATING PUMP
140
RECIRCULATING PUMP , FROM MODEL YEAR '81
143
BRACKET
146
SHEET METAL SCREW VALVE TO WINDOW SILL
149
CLIP PLUG TO REAR PILLAR
