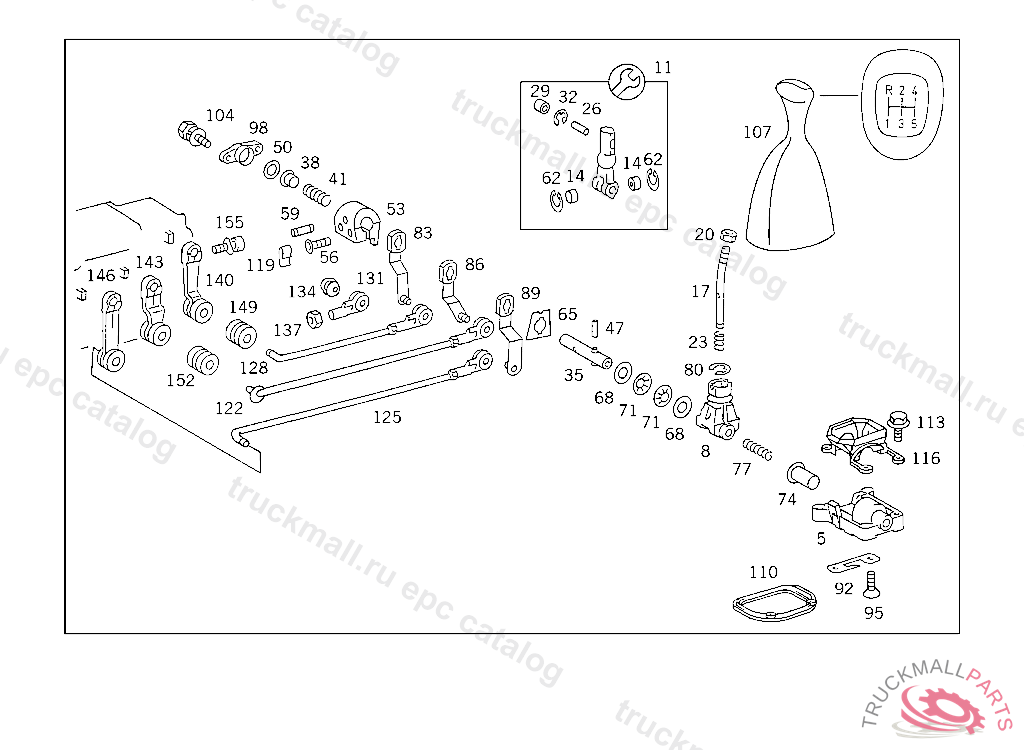

Поз.
Артикул
Описание
5
BEARING BRACKET
8
BRACKET
11
REPAIR KIT SHIFT LEVER
14
BUSHING , Replaced By: A1402670450
14
BUSHING
17
SHIFT LEVER
20
NUT
23
SPRING SHIFT LEVER
26
PIN
29
BUSHING
32
LOCK PLATE
35
SHIFTING TUBE
38
WASHER SHIFTING TUBE
41
SPRING
47
PIN
50
SPACER WASHER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6732670052
53
STOP
53
STOP , Replaced By: A1242670241
56
SCREW
59
PIN
62
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
62
CIRCLIP PIN TO CLUTCH SLAVE CYLINDER BOOT
65
WASHER , 124.0,124.1 : A 658915 124.2,124.3 : A 775522 ALSO INSTALLED ON : A 775938,A 776648,A 776991
68
SPACER WASHER , Replaced By: A1292670052
68
SPACER WASHER , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
71
DISC SPRING
71
DISC SPRING , Replaced By: A1299930126
74
BUSHING , Replaced By: A1292670050
74
BUSHING , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
77
SPRING
80
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
83
LEVER 1ST SPEED AND REVERSE
86
LEVER 2ND AND 3RD SPEED
89
LEVER 4TH AND 5TH SPEED
92
SLOTTED GATE
95
SCREW
98
BEARING , Replaced By: A2022670005
98
BEARING
104
SCREW , Replaced By: N910106006000, +001N000125006421
104
SCREW
107
GEARSHIFT LEVER GEARSHIFT LEVER WITH LEATHER COVER
107
HANDLE GEARSHIFT LEVER WITH LEATHER COVER,F 723282 TO BE ORDERED ONLY ON COMMISSION, PLEASE STATE ALSO GEARSHIFT LEVER PART NUMBER UNTIL DELIVERY OF GEARSHIFT LEVER, INSTALL REPAIR VERSION
110
GASKET BEARING BRACKET TO TUNNEL
113
SCREW
116
COVERING
119
LOCK
122
SHIFTING ROD 2ND AND 3RD SPEED
125
SHIFTING ROD 4TH AND 5TH SPEED
128
SHIFTING ROD 1ST SPEED AND REVERSE
131
END PIECE
134
BUSHING FROM LEVER TO VALVE BODY ASSEMBLY
134
BUSHING
137
NUT
140
SHIFT LEVER 1ST SPEED AND REVERSE
143
SHIFT LEVER 2ND AND 3RD SPEED
146
SHIFT LEVER 4TH AND 5TH SPEED
149
BUSHING
152
BUSHINGTO 201 260 12 39
155
COMBINATION BOLT
