Поз.
Артикул
Описание
5

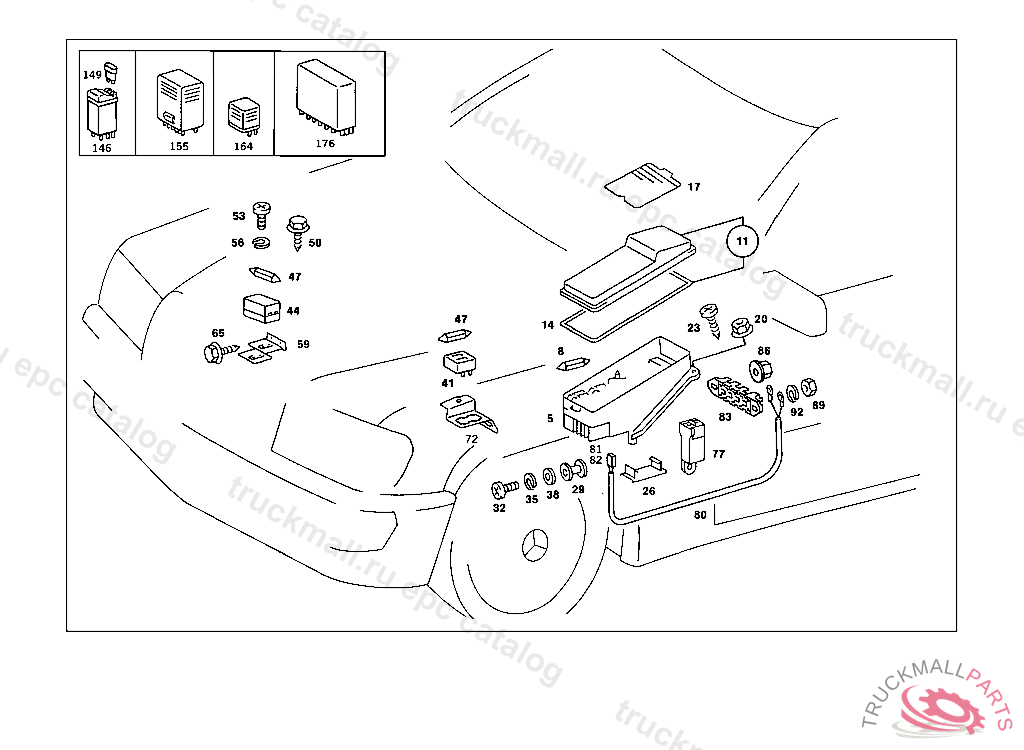

FUSE BOX (CENTRAL ELECTRICAL SYSTEM)
8
FUSEA16
8
FUSEA8
8
FUSE25 A
8
FUSE , Replaced By: N072581008101
11
COVER , 022 000376 024 000468
14
RUBBER PAD
17
MARKING STRIP , A 531256 F 664539 028 A 521683 028 F 655709 029 A 508035 029 F 646805 EXCEPT FOR A 506450,A 507076,A 507077,A 507078,A 507197,A 507198,A 507257,A 507634, F 640357, ALSO INSTALLED ON F 650026
20
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
20
NUT , Replaced By: N913023006001
20
NUT , Replaced By: N910112006001
23
SCREW CENTRAL ELECTRICAL SYSTEM TO FIRE WALL
26
COVERING
29
BUSHING ELECTRIC CABLE TO CENTRAL ELECTRIC SYSTEM,TERMINAL: 15
29
BUSHING ELECTRIC CABLE TO CENTRAL ELECTRIC SYSTEM,TERMINAL: 15 R
29
BUSHING ELECTRIC CABLE TO CENTRAL ELECTRIC SYSTEM TERMINAL 30
32
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
32
SCREW COVER PLATE TO COVER PLATE M 6 X 10
32
SCREW , Replaced By: N304017006034
32
SCREW , Replaced By: N007985004107
32
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
35
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
35
LOCK WASHER T-FITTING TO BRACKET
35
LOCK WASHER T-FITTING TO BRACKET
38
WASHER COMPRESSED AIR LINE TO BRACKET
38
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
41
FUSE BOX
44
FUSE BOX BIPOLAR,K 100807 MIT AUSNANME VON K 093739
44
FUSE BOX , Replaced By: A0005459901
47
FUSEA16
50
COMBINATION BOLT BRACKET TO PILLAR
53
SCREW , Replaced By: N007985004107
53
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
56
LOCK WASHER T-FITTING TO BRACKET
59
BRACKET FUSE BOX TO FIRE WALL, ONLY FOR ONE FUSE BOXES
59
BRACKET FUSE BOX TO FIRE WALL, ONLY FOR TWO FUSE BOXES
65
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
65
SHEET METAL SCREW , Replaced By: N007981004233
65
SHEET METAL SCREW BRACKET TO FLOOR PLATE
72
BRACKET ADDITIONAL FUSE BOX AND RELAY
77
PLUG SOCKET , Replaced By: A2015401181
77
PLUG SOCKET CONTACT BRIDGE WITH DIODE,BIPOLAR, USED WITH WINDOW REGULATOR
80
CABLE HARNESS FROM CENTRAL ELECTRICAL SYSTEM TO ANCHORING POINT
81
PIN BUSHING HOUSING FUSE BOX "L"
82
ROUND PIN BUSHING LIGHT SWITCH
83
SOCKET-TERMINAL STRIP 5-POLE
86
NUT BRAKE
89
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
92
LOCK WASHER T-FITTING TO BRACKET
146
RELAY OVERLOAD PROTECTOR
146
RELAY , Replaced By: A2015403745
149
FUSE , Replaced By: A0025450934
149
FUSE , Replaced By: N072581000304
155
RELAY FUEL PUMP CUT-OFF, UP TO IDENT NO.: EVOLUTION 1
155
RELAY FUEL PUMP CUT-OFF, FROM IDENT NO.: EVULOTION 2
155
CONTROL UNIT COMPRESSOR
164
RELAY
164
RELAY , 107.042 011568 EXCEPT FOR 010107,010328,010378,011305,011341,011348,011356,011418,011426,011434,011436,011444,011454,011455, 011464,011472,011473,011476,011480,011494,011496,011503,011504,011513,011514,011518,011519,011520, 011526,011528,011531,011533,011535,011537,011538,011539,011541-011567. 107.045 009131 EXCEPT FOR 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128. 107.046 000986 EXCEPT FOR 000518,000621,000841,000897,000899,000921,000933,000936,000938,000940,000942,000944,000956,000964, 000967,000970,000974-000985.
164
RELAY , Replaced By: A0015429619
164
RELAY , Replaced By: A0015429719
164
RELAY , 123.003,028 105805 123.026 106004 123.030 032306 123.033 090757 123.053 023337 123.086 007202 123.093 009553 123.120 262872 123.102,103,125 255626 123.123 254722 123.105,132 240923 123.130 240457 123.183 016222 123.190 022642 123.200 040194 123.220 031448 123.223 040309 123.243 006912 123.280 001558 123.283 005502
164
RELAY AUXILIARY FAN
164
RELAY INTAKE MANIFOLD HEATING
176
RELAY BLINKER/HAZARD-WARNG.-L.SENDER UNITS, HEATED REAR PANE,WIPER,TRAILER COUPL.
999
RELAY , FIRST EXHAUST STOCK OF OLD PARTS ON VEHICLES LESS TRAILER COUPLING, Replaced By: A2018210247
