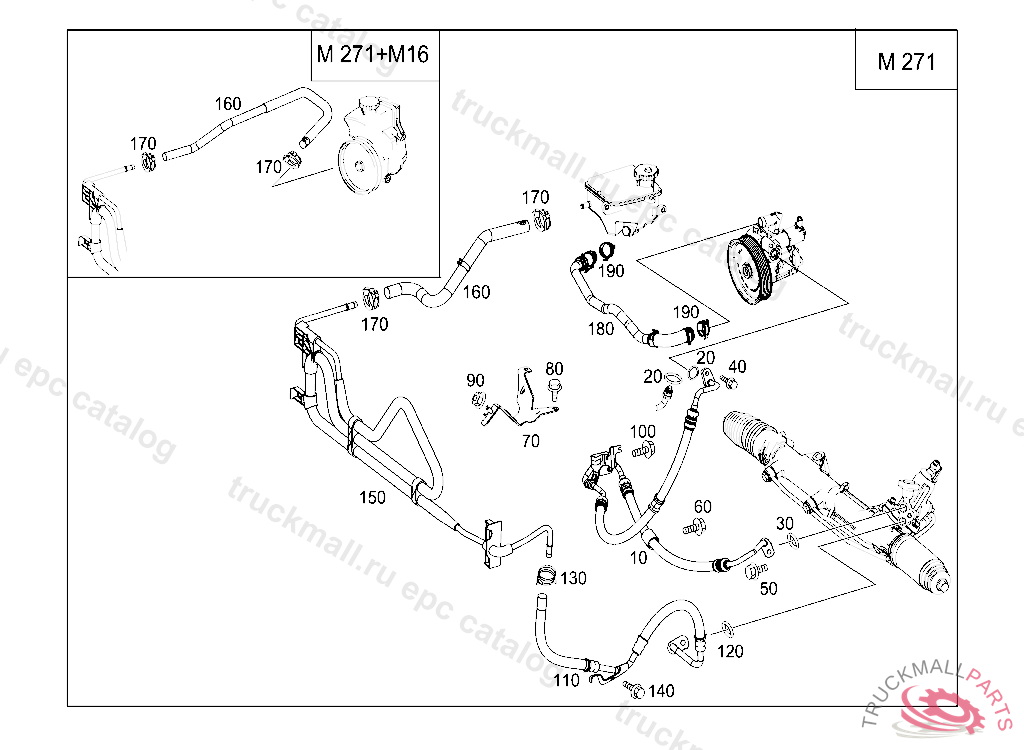

C 180 CGI BlueEFFICIENCY DOKU NICHT KOMPLETT! NUR Fu00dcR KFE FZG - 204.249 - 46 STEERING

  • Поз.
    Артикул
    Описание
  • 10
    PRESSURE HOSE FROM PUMP TO STEERING
  • 10
    EXPANSION HOSE FROM PUMP TO STEERING
  • 10
    PRESSURE HOSE FROM PUMP TO STEERING
  • 10
    EXPANSION HOSE FROM PUMP TO STEERING
  • 20
    O-RING TO HP HOSE 7.65MM, A 83219320050630 E 02000020070101
  • 30
    O-RING TO HP HOSE 7.65MM, A 83219320050630 E 02000020070101
  • 40
    SCREW BRACKET TO SIDE MEMBER M8X20
  • 50
    SCREW BRACKET TO SIDE MEMBER M8X20
  • 70
    BRACKET DELIVERY LINE TO OIL PAN
  • 70
    BRACKET DELIVERY LINE TO OIL PAN
  • 80
    HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
  • 90
    NUT , Replaced By: N913023006001
  • 100
    HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
  • 110
    EXPANSION HOSE STEERING TO COOLING PIPE, A 05916920070630 L 00159720070831 V 00000120070831 F 02858920070701 R 00977320070903
  • 110
    PRESSURE HOSE STEERING TO COOLING PIPE
  • 120
    O-RING TO HP HOSE 7.65MM, A 83219320050630 E 02000020070101
  • 130
    HOSE CLAMP LOW PRESSURE HOSE TO COOLER PIPE OR PUMP 15.5 MM, A 54101820030515 E 02000020070101
  • 140
    HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
  • 140
    BOLT HOSE TO FRAME-TYPE INTEGRAL SUPPORT M6X12
  • 150
    COOLING PIPE
  • 150
    COOLING PIPE
  • 160
    LOW-PRESSURE LINE FROM COOLING PIPE TO OIL TANK
  • 160
    PRESSURE HOSE FROM COOLING PIPE TO OIL TANK
  • 170
    HOSE CLAMP LOW PRESSURE HOSE TO COOLER PIPE OR PUMP 15.5 MM, A 54101820030515 E 02000020070101
  • 180
    SUCTION HOSE FROM RESERVOIR TO PUMP
  • 190
    CLAMP POWER STEERING PUMP TO OIL TANK, FROM MODEL YEAR 2000CODE 800
