Поз.
Артикул
Описание

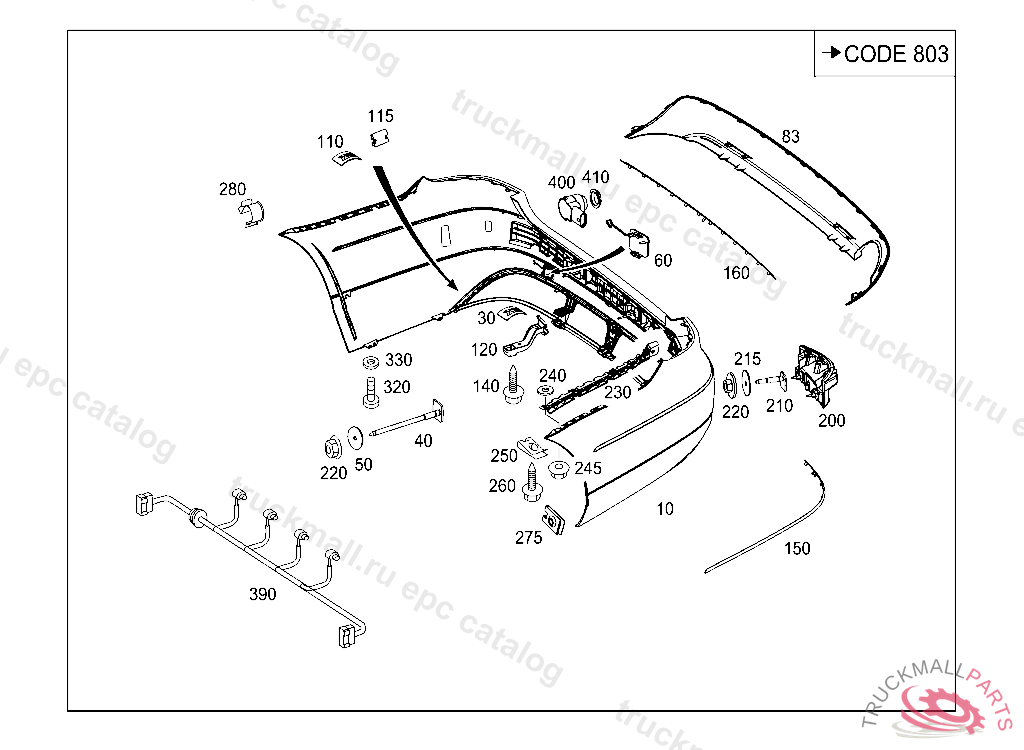

10
PANELING REAR BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT212L9000 COLORLESS
10
TRIM BUMPER REAR BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT212L9000 COLORLESS
10
TRIM BUMPER REAR BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT212L9000 COLORLESS
30
LOCK NUT BASIC CARRIER MOUNTING
40
MOUNTING PLATE BASIC CARRIER MOUNTING
50
WASHER REAR LATERAL GUIDE TO REAR END FLOOR,F 021177
60
CAP TOWING EYE
60
CAP TOWING EYE
60
FIXTURE TOWING EYE LOWER SECTION
60
CAP TOWING EYE UPPER PART
83
TRIM BUMPER REAR BUMPER, BOTTOM
83
TRIM BUMPER REAR BUMPER, BOTTOM, L 20131129
83
TRIM BUMPER REAR BUMPER, BOTTOM, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT212L9001 COLORLESS
110
HOLDDOWN CLIP BOTTOM PART TO TOP PART COVERING
110
LOCK NUT BASIC CARRIER MOUNTING
115
MOUNTING CLAMP PANELING LOWER SECTION TO UPPER SECTION AT SIDE
120
BRACKET BOTTOM RIGHT
120
BRACKET BOTTOM LEFT
120
BRACKET BOTTOM LEFT
120
BRACKET BOTTOM RIGHT
140
TAPPING SCREW BUMPER TO LEFT SIDE WALL
150
MOULDING REAR RIGHT
150
MOULDING (TRIM GRILLE), LEFT REAR
150
MOULDING (TRIM GRILLE), RIGHT REAR
150
MOULDING LATERAL LEFT
150
MOULDING LATERAL RIGHT
150
MOULDING REAR LEFT
160
MOULDING REAR CENTRAL
200
BASIC MOUNTING FOR BUMPER RIGHT
200
BASIC MOUNTING FOR BUMPER LEFT
200
BASIC MOUNTING FOR BUMPER RIGHT
200
BASIC MOUNTING FOR BUMPER LEFT
210
FASTENING PLATE FASTENING, LEFT BASIC CARRIER
215
WASHER REAR LATERAL GUIDE TO REAR END FLOOR,F 021177
220
NUT FENDER ON SIDE PANEL M6
230
SIDE STABILITY BETWEEN FENDER, LEFT ANDBUMPER
230
SIDE STABILITY BETWEEN FENDER, LEFT ANDBUMPER
230
SIDE STABILITY BETWEEN FENDER, RIGHT ANDBUMPER
230
SIDE STABILITY BETWEEN FENDER, RIGHT ANDBUMPER
240
SEAL WASHER BETWEEN FENDER AND BUMPER
245
NUT GUIDE AT REAR FENDER, J 53092220070910808
250
LOCK NUT BUMPER, BOTTOM SECTION 0,5-2,5MM
260
TAPPING SCREW SPLASH GUARD TO FENDER 6.3X22
275
SPRING SHEET METAL LOCK BRACKET MOUNTING LEFT & RIGHT 6.3 MM
280
BRACKET
320
TAPPING SCREW MOUNTING PARTS 4.8X16
330
WASHER
390
ELECTRICAL WIRING HARNESS
390
ELECTRICAL WIRING HARNESS
390
ELECTRICAL WIRING HARNESS
390
ELECTRICAL WIRING HARNESS
390
ELECTRICAL WIRING HARNESS
400
SENSOR CENTRAL, TO BE PAINTED PRIOR TO INSTALLATION
400
DISTANCE SENSOR INSIDE LEFT AND RIGHT, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
410
DECOUPLING RING PARKTRONIC SYSTEM
410
SPACER RING SENSOR
