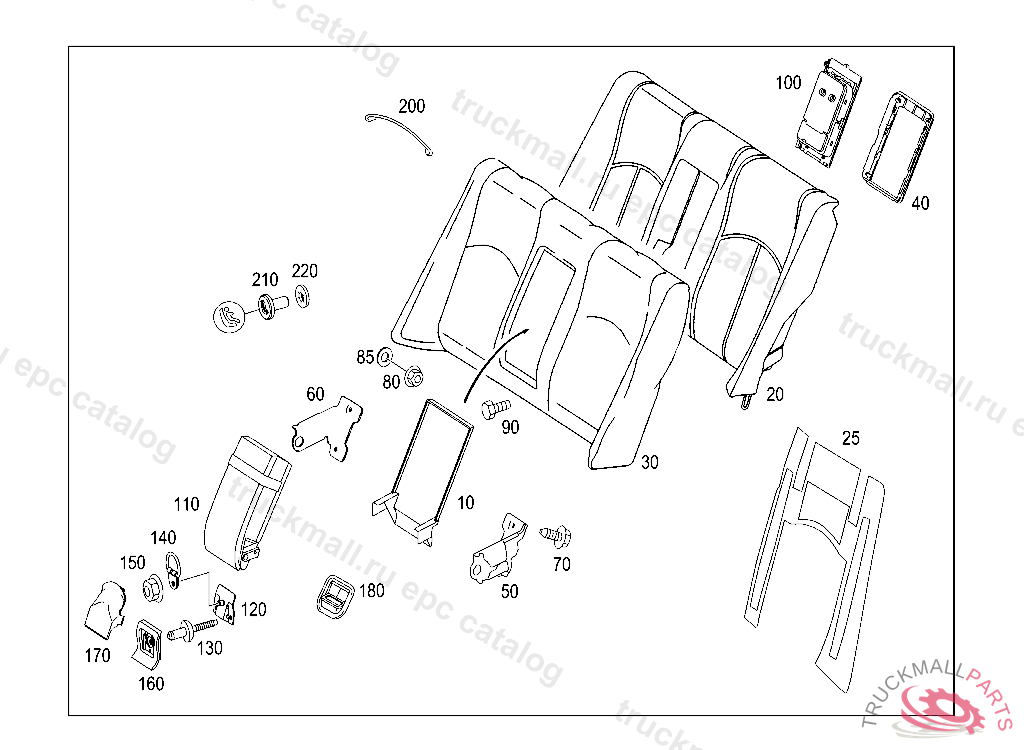

Поз.
Артикул
Описание
10
COVER FRONT, 9051QFT219A2022 BLACK
10
COVER FRONT
20
REST REAR BACKREST
20
REST REAR BACKREST
25
HEATING FOIL RIGHT REAR BACKREST
25
HEATING FOIL LEFT REAR BACKREST
30
BACKREST UPHOLSTERY IN THE REAR DESIGNO
30
COVER REAR BACKREST
30
BACKREST UPHOLSTERY IN THE REAR DESIGNO
30
COVER REAR BACKREST
30
COVER LEATHER AMG DESIGNO
30
BACKREST UPHOLSTERY IN THE REAR DESIGNO
30
COVER REAR BACKREST
30
COVER LEATHER AMG
30
COVER REAR BACKREST, 9D94 001A QFT219A2005 BLACK
30
COVER REAR BACKREST
30
COVER REAR BACKREST
30
COVER REAR BACKREST
30
BACKREST UPHOLSTERY IN THE REAR DESIGNO
30
COVER REAR BACKREST, 9D94 001A QFT219A2005 BLACK
30
COVER REAR BACKREST
30
COVER REAR BACKREST
30
COVER REAR BACKREST
40
COVER BEHIND ARMREST, 9051QFT219A2022 BLACK
50
BEARING ARMREST FASTENING, LEFT
60
BEARING ARMREST FASTENING, RIGHT
70
SCREW CHARGE PLUNGER UNIT
80
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
80
NUT-AND-WASHER ASSEMBLY HINGE, Replaced By: N910104006001
80
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
85
WASHER COMPRESSED AIR LINE TO BRACKET
90
SCREW LICENSE PLATE TO BRACKET
100
DASHPOT SKI-BAG, A 15324020080930 9051QFT219A2022 BLACK
100
DASHPOT SKI-BAG, A 15323920080930 9051QFT219A2022 BLACK
110
FOLDING ARMREST IN THE REAR
110
FOLDING ARMREST IN THE REAR, 9D88 001A QFT219A2003 BLACK
110
FOLDING ARMREST IN THE REAR
120
CLAMP MOUNTING STRIP
130
BLIND RIVET BRACKET MOUNTING
130
RIVET CHILD SEAT FASTENING ISOFIX INNER LEFT/RIGHT
140
BRACKET MAIN FLOOR FRONT
150
NUT
160
COVER AT CLAMP
170
COVER NUT
180
COVER CHILD SEAT RECOG. FOR THROUGH LOAD
200
BRACKET SEAT COVER MOUNTING,LONGITUDINAL, USED WITH LEATHER TRIM
210
SYMBOL
220
LOCK PLATE BRACKET MOUNTING
220
LOCK BRACKET MOUNTING, Replaced By: N912010006000
