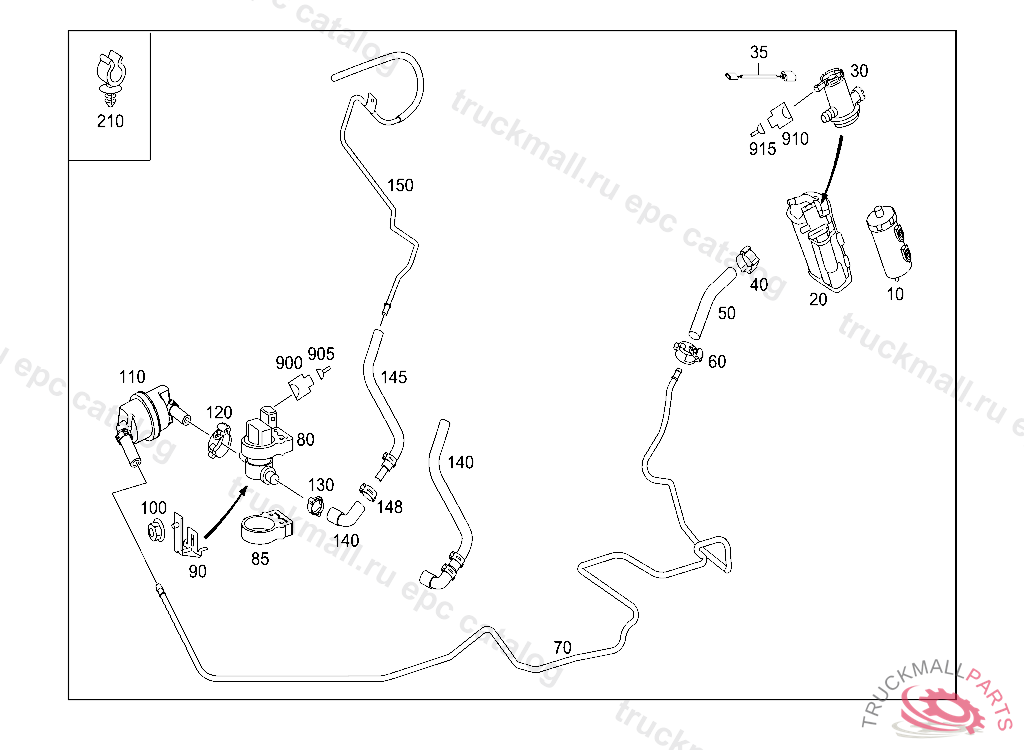

Поз.
Артикул
Описание
10
ACTIVATED CHARCOAL FILTER CLOSED FUEL-EVAPORATION-CONTROL SYSTEM, A 38231320020510 E 02000020070101
20
ACTIVATED CHARCOAL FILTER CLOSED FUEL-EVAPORATION-CONTROL SYSTEM, A 03833220050630806 A 14034120080328809
20
ACTIVATED CHARCOAL CLOSED FUEL-EVAPORATION-CONTROL SYSTEM, A 08002320060630807
20
ACTIVATED CHARCOAL FILTER CLOSED FUEL-EVAPORATION-CONTROL SYSTEM, A 12688920071011808
30
VALVE SHUT-OFF VALVE
30
VALVE SHUTOFF VALVE ACTIVATED-CARBON FILTER, A 12562420080115 F 14570720080115 R 01906320080115
30
SHUT-OFF VALVE
35
WIRING HARNESS SHUTOFF VALVE ADAPTER LINE TO A 000 470 71 93
40
HOSE CLAMP FUEL LINE TO FUEL FILTER
50
FUEL HOSE
50
HOSE FROM ACTIVATED CHARCOAL FILTER TO BREATHER LINE, FROM MODEL YEAR '98
60
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
70
BREATHER PIPE DAMPER VALVE TO ACTIVATED CHARCOAL CANISTER
80
PURGE VALVE
80
PURGE VALVE
80
PURGE VALVE , Replaced By: A0004708593
80
VALVE
85
BRACKET REGENERATION VALVE
90
BRACKET REGENERATION VALVE
100
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
110
DAMPER CAGE PURGE VALVE TO PURGE LINE
120
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
130
CLAMP FUEL LINE TO FUEL FILTER 13-14/8.2 MM
130
HOSE CLAMP HOSE ATTACHMENT
140
HOSE REGENERATION VALVE TO ENGINE
150
BREATHER PIPE REGENERATION VALVE TO INTAKE PIPE
900
PIN BUSHING HOUSING BIPOLAR TO 651 540 36 09
905
REP.SET CONTACT1.00 MM2 JPT, CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED. SEE WIS FOR REPAIR INSTRUCTIONS.SOLDER CONNECTOR SLEEVES:TOTAL WIRE CROSS-SECTION: A 001 546 99 41GREEN0.7 -2.4 MM2 A 002 546 00 41RED2.0 -4.0 MM2 A 002 546 01 41BLUE 3.5 -8.0 MM2 A 002 546 11 41YELLOW 7.5 - 12.0 MM2 BUTT JOINT: A 002 546 13 41 0.5 MM2 A 002 546 14 41 0.8 MM2 A 002 546 15 41 1.3 MM2 A 002 546 16 41 2.0 MM2
905
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0MM2,126372
905
WIRE SEAL
910
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
915
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
915
GASKET YELLOW 0.2-0.5MM2,126373
