Поз.
Артикул
Описание

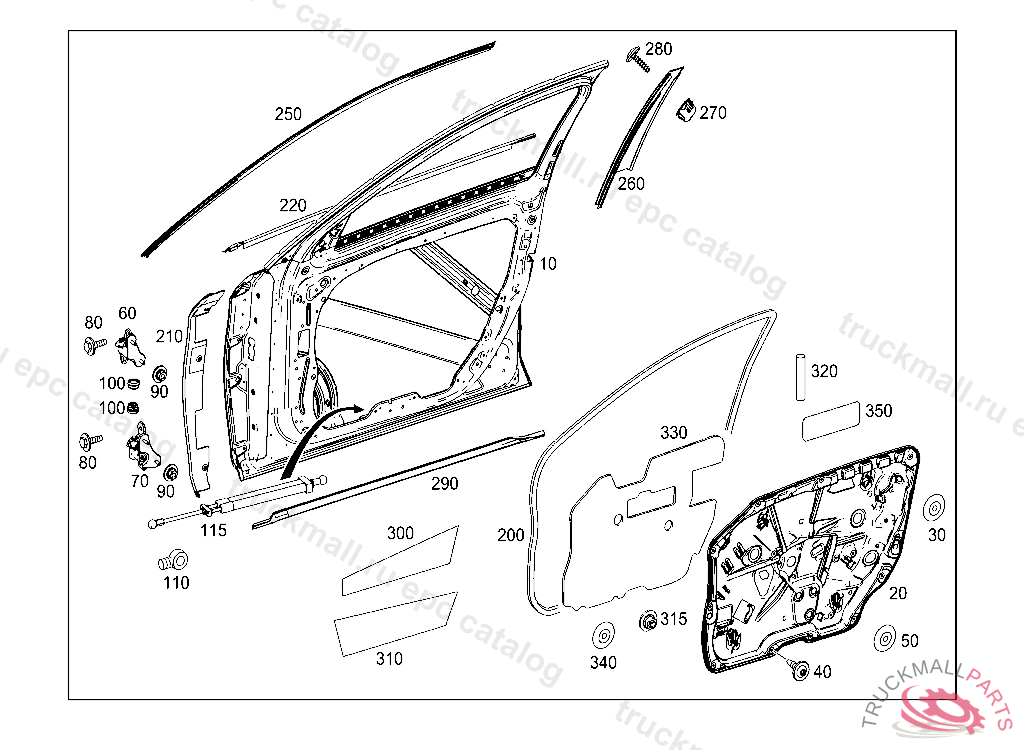

10
DRIVER'S DOOR RIGHT
10
DRIVER'S DOOR LEFT
20
BASIC CARRIER RAIL RIGHT FRONT DOOR
20
BASIC CARRIER RAIL LEFT FRONT DOOR
30
STOP PLUG CROSS MEMBER 20 MM
40
SCREWM5X16,M 5 X 16
40
SCREW LOCK COVERING
40
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
40
HEXAL. SKT. OVAL HD. SCR. DOOR LOCK AT DOOR, LEFT, A 31605420090710 L 03352320090630 V 00133320090630 F 37637520090630 L 10000020090901
40
SCREW , Replaced By: A1409842829
40
SCREW GGVS-COMPONENT IN BATTERY CARRIER M6 X 55
40
SCREW COVER PLATE ON STRIKER EYE
40
HEXALOBULAR BOLT HEIGHT ADJUSTMENT,LEFT M8X16
40
FILLISTER HD.SCREW BRACING TO SUPPORT M5X18
40
SCREW ATTACHMENT,RAIL M5X14
50
PLUG TO BODY 10 MM, J 78221020091022
60
HINGE TOP RIGHT
60
HINGE TOP LEFT
60
HINGE
60
HINGE TOP RIGHT
70
HINGE BOTTOM RIGHT
70
HINGE BOTTOM LEFT
70
HINGE BOTTOM LEFT
70
HINGE BOTTOM RIGHT
80
HEXAGON HEAD BOLT FOR HINGE TO DOOR M8X32,5
80
BOLT HINGE ON A-PILLAR 8X27
90
COMBINATION NUT FOR HINGE TO B-PILLAR AT RIGHT M8
90
MULTIPLE NUT FOR HINGE TO B-PILLAR AT LEFT M8
100
CAP TO RIGHT DOOR HINGE SCREW
110
BALL PIVOT ON DOOR ARRESTER, A 16979220070731
110
BALL HEAD ON DOOR ARRESTER A 80NM +/- 5NM, A 26812820081017
115
DOOR CHECK RIGHT DOOR,INSIDE
200
CIRCUMFERENTIAL DOOR SEAL LEFT DOOR SEAL, TO BE ADAPTED DURING ASSEMBLY
210
SEALING FRAME LEFT
210
SEALING FRAME RIGHT
220
ORNAMENTAL TRIM RIGHT FRONT DOOR,TOP
220
ORNAMENTAL TRIM LEFT FRONT DOOR,TOP
250
ORNAMENTAL TRIM RIGHT FRONT DOOR
250
ORNAMENTAL TRIM LEFT FRONT DOOR
260
ORNAMENTAL MOLDING RIGHT FRONT DOOR
260
ORNAMENTAL MOLDING LEFT FRONT DOOR
270
DOWEL BRACKET TO FRAME
280
FILLISTER HD SCREW FASTENING AT TOP, LEFT 4X14
290
COVER STRIP ON DOOR ARRESTER BOTTOM, RIGHT
290
COVER STRIP ON DRIVER DOOR BOTTOM, LEFT
300
INSULATION FRONT RIGHT TOP
300
INSULATION FRONT LEFT TOP
310
INSULATION FRONT LEFT BOTTOM
310
INTERMEDIATE LAYER ANTENNA COMBINER TO LATERAL LEFT COVERING IN LUGGAGE COMPARTMENT
310
INSULATION FRONT RIGHT BOTTOM
315
CABLE BRACKET BASIC CARRIER LEFT
320
SEALING CORD , ORDER BY THE METER
320
ADHESIVE FABRIC TAPE TO WINDOW FRAME LINING LEFT
330
INSULATION DRIVER DOOR LEFT DOOR
340
DUMMY COVER LEFT DOOR
350
SELF-ADHESIVE TRIM LEFT FRONT DOOR
350
SELF-ADHESIVE TRIM AT LEFT PANELING
