Поз.
Артикул
Описание

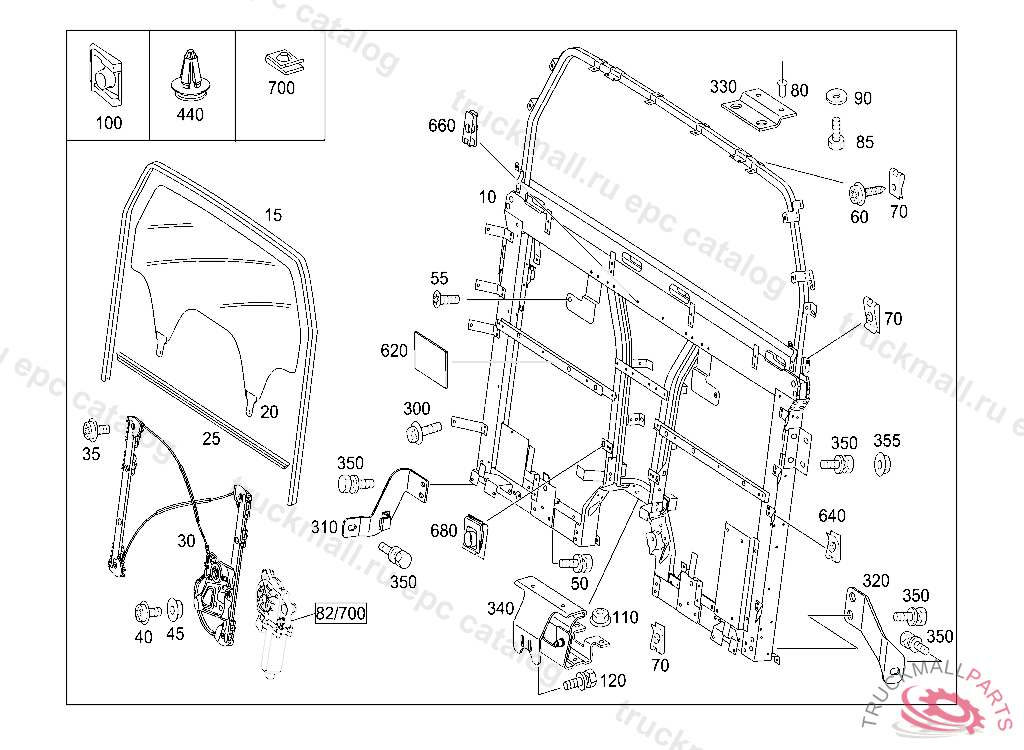

10
PARTITION PANEL COMPLETE
10
PARTITION PANEL INCORPORATED IN: A 240 710 00 01
10
PARTITION PANEL
10
PARTITION PANEL
15
RAIL WINDOW RUN TOP, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 00049920030903, Replaced By: A2407110229
15
RAIL
20
GLASS PANE PARTITION PANEL
20
GLASS PANE PARTITION PANEL
25
SEALING RAIL WINDOW RUN BOTTOM 1266 MM
25
SEALING RAIL WINDOW RUN BOTTOM 150 MM
30
WINDOW REGULATOR PARTITION PANEL
35
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
40
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
45
NUT , Replaced By: N913023006001
50
SCREW PUMP TO BRACKET
55
SCREW BELT ADJUSTMENT M6X16
60
TAPPING SCREW MOUNTING, COVER 4.2 X 13 MM
60
TAPPING SCREW INSTRUMENT PANEL ON WAIST RAIL 4.2X16
70
LOCK NUT GLOVE COMPARTMENT TO INSTRUMENT PANEL
70
LOCK NUT MOUNTING, COVER, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019900856
80
BLIND RIVET. RIVET FAN SHROUD
85
SCREW COVER PLATE TO COVER PLATE M 6 X 12
90
WASHER COMPRESSED AIR LINE TO BRACKET
100
NUT RETAINER. LOCK LEFT AND RIGHT SPOILER AT CENTER PIECE
110
NUT , Replaced By: N913023006001
120
SCREW LICENSE PLATE TO BRACKET
300
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
310
BRACKET PARTITION WALL FASTENING, BOTTOM LEFT
310
BRACKET PARTITION WALL FASTENING, BOTTOM RIGHT
320
BRACKET PARTITION WALL FASTENING, BOTTOM LEFT
320
BRACKET MOUNTING PARTITION PANEL
330
BRACKET MOUNTING PARTITION PANEL
330
BRACKET MOUNTING PARTITION PANEL
330
BRACKET MOUNTING PARTITION PANEL
340
CONSOLE PARTITION PANEL TO SIDE PANEL
350
SCREW PIPE CLAMP
355
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
355
NUT HORN TO BRACKET M8
440
CLIP PANELLING ON REAR LID
620
INTERMEDIATE LAYER ANTENNA COMBINER TO LATERAL LEFT COVERING IN LUGGAGE COMPARTMENT
640
FUSE MATING BEARING TO ROOF FRAME
660
NUT LOCK TO COVER
680
LOCK NUT. SPRING NUT MOUNTING PARTS
700
CLIP FASTENER. SPRING NUT
