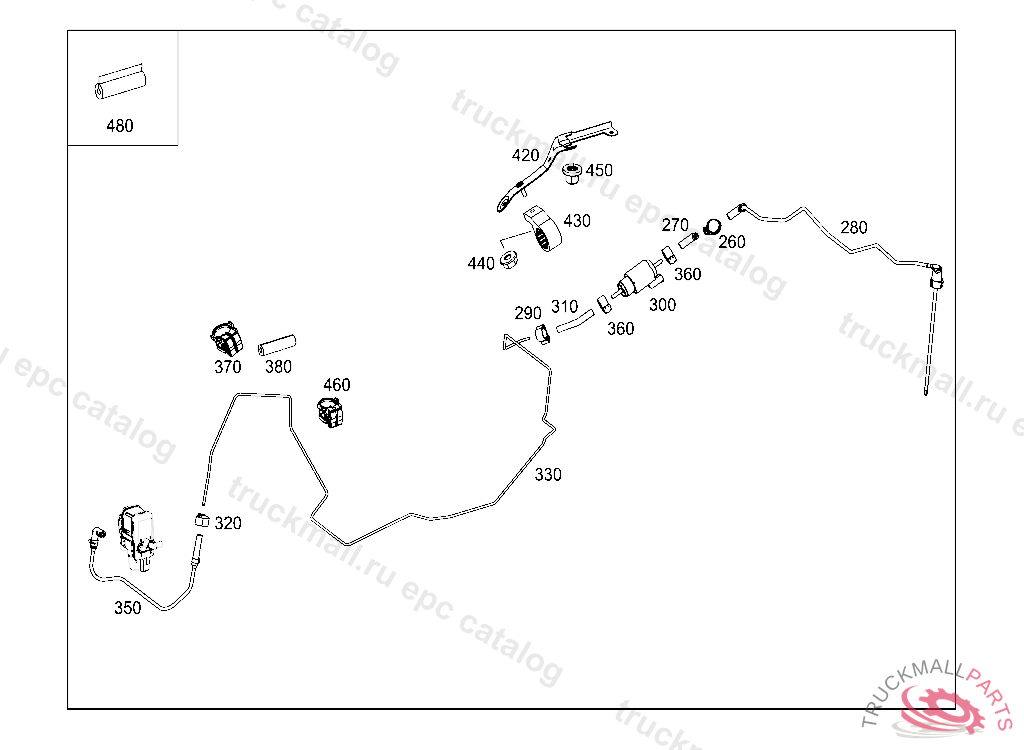

Поз.
Артикул
Описание
260
LOOM TIE. CLIP
270
FUEL HOSE FROM TANK TO PUMP
280
FUEL LINE FROM TANK TO PUMP, Replaced By: A2464700365
280
FUEL LINE FROM TANK TO PUMP
290
CLAMP FUEL LINE LEADING TO FEED PUMP, F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
300
FUEL PUMP
310
HOSE FUEL HOSE TO FUEL LINE
320
CLAMP FUEL LINE LEADING TO FEED PUMP, F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
330
FUEL LINE , J 20131201 V 01162320140129
330
FUEL LINE , J 20131201 V 01162420140129
350
FUEL LINE HEATER AT FUEL LINE
360
CLAMP HOSE TO PUMP 9 MM - 9.5 MM
370
LINE HOLDER FUEL LINE MOUNTING
380
HOSE
420
BRACKET FUEL PUMP
430
BRACKET FUEL PUMP TO BRACKET
440
NUT , Replaced By: N913023006001
450
NUT VALVE TO BRACKET
460
LINE HOLDER FUEL LINE MOUNTING
480
HOSE
