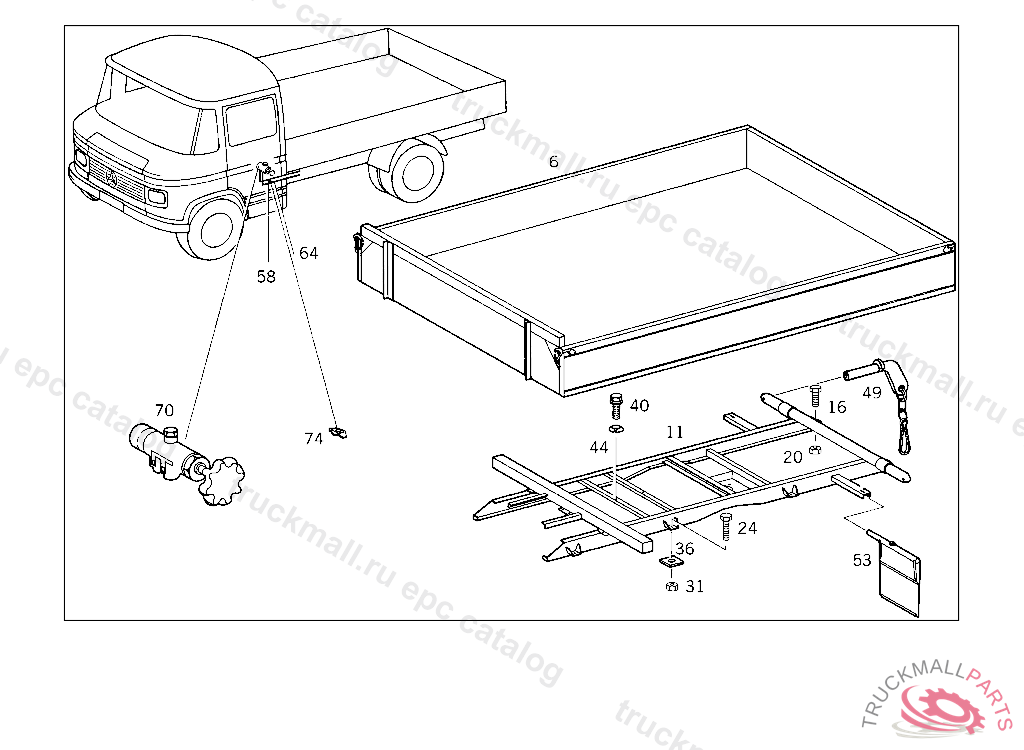

Поз.
Артикул
Описание
6
PLATFORM3000X2000X350
11
SUBSTRUCTURE
16
SCREW , Replaced By: N304017010036
16
SCREW BRACKET TO FRAME SIDE MEMBER
20
NUT , Replaced By: N910113010000
20
NUT STRAP TO BRACKET
24
SCREW STRUT TO FRAME M 12X62
24
SCREW , Replaced By: N308676012018
31
NUT SUPPORT TO SIDE MEMBER
36
PLATE RUBBER MOUNTING TO SUPPORT
40
SCREW SPARE WHEEL TO AUXILIARY FRAME M 14X30,556499
44
LOCK WASHER SPARE WHEEL MOUNTING,007585
49
COUPLING PIN FROM DUMPER PLATFORM SUBSTRUCTURE LOCK TO FRAME
53
SPLASH GUARD LEFT,556499
58
LINE DELIVERY
64
LINE RETURN
70
VALVE WITH HANDWHEEL
74
CLAMP
999
SIDE REFLECTOR , Replaced By: A0008262440
999
REFLECTOR AMBER
999
GROMMET FOR PASSAGE OF LINE, UP TO IDENT NO. 5 033766,ALSO INSTALLED ON 5 039977
999
LINE DELIVERY,363167
999
LINE SUCTION,363167
999
LINE DELIVERY,363168
999
LINE SUCTION,363168
999
SPLASH GUARD RIGHT
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW SPLASH GUARD TO AUXILIARY FRAME M 12X20,556499
999
WASHER , Replaced By: N007349013005
999
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
999
WASHER , Replaced By: N009021010209
999
WASHER BRACKET TO COVERING
999
LOCK WASHER BATTERY CABLE
