Поз.
Артикул
Описание

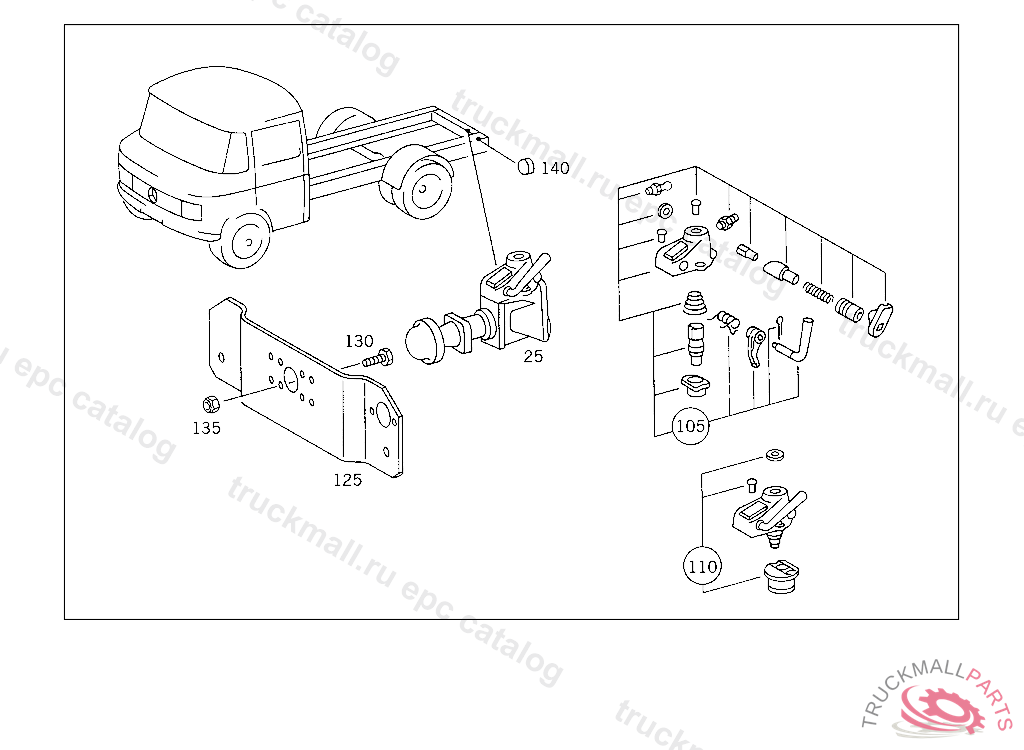

25
TRAILER COUPLING (MOUTH-TYPE COUPLING) ROCKINGER TYP 227 G110 JA
25
TRAILER COUPLING (MOUTH-TYPE COUPLING) ROCKINGER TYP 227 G110 JB
105
COUPLING PIN TRAILER COUPLING
105
REPAIR KIT , Replaced By: A0003100104
105
REPAIR KIT , Replaced By: A0003100207
110
REPAIR KIT TRAILER COUPLING
125
COVERING TRAILER COUPLING
125
COVERING TRAILER COUPLING
130
SCREW , Replaced By: N304017010002
130
SCREW BRACKET TO SIDE MEMBER
135
NUT , Replaced By: N910113010000
135
NUT STRAP TO BRACKET
140
EXPANSION PLUG TRANSMISSION CASE,SIDE
999
GREASE NIPPLEROCKINGER
999
GREASE NIPPLE
999
GREASE NIPPLE , Replaced By: N071412008102
999
COTTER PIN6.3X63 MM
999
SEAL RING , Replaced By: N900216010100
999
BUSHINGRINGFEDER TYP 86 G135 EK
999
BUSHING BOTTOM RINGFEDER TYP 86 G135 EK
999
LEVER , Replaced By: A0003100073
999
LEVERRINGFEDER TYP 86 G135 EK
999
BUSHING TRAILER COUPLING
999
PIN
999
COUPLING PINRINGFEDER TYP 86 G135 EK
999
NUTRINGFEDER
999
BUFFERRINGFEDER TYP 86 G135 EK
999
NUTROCKINGER TYP 260 G135 AA
999
SCREW PARTS KIT ROCKINGER TYP 260 G135 AA
999
LOCKRINGFEDER
999
CAPROCKINGER TYP 260 G135 AA
999
COUPLING PINROCKINGER,TYP 59 U150
999
LOCK , Replaced By: A0003151173
999
CAPRINGFEDER TYP 65 G135
999
BUSHING BOTTOM ROCKINGER TYP 260 G140
999
LOCK PARTS KIT ROCKINGER,TYP 59 U140,59 U150, TO BE ADAPTED DURING ASSEMBLY
999
LOCK COUPLING PIN
999
PLATERINGFEDER TYP 86 G135 EK
999
BUSHING BOTTOM ROCKINGER TYP 227 G110 JA/JB
999
CENTERING PIECE TRAILER COUPLING
999
REPAIR KITROCKINGER TYP 260 G135 AA
999
LEVERROCKINGER TYP 260 G140
