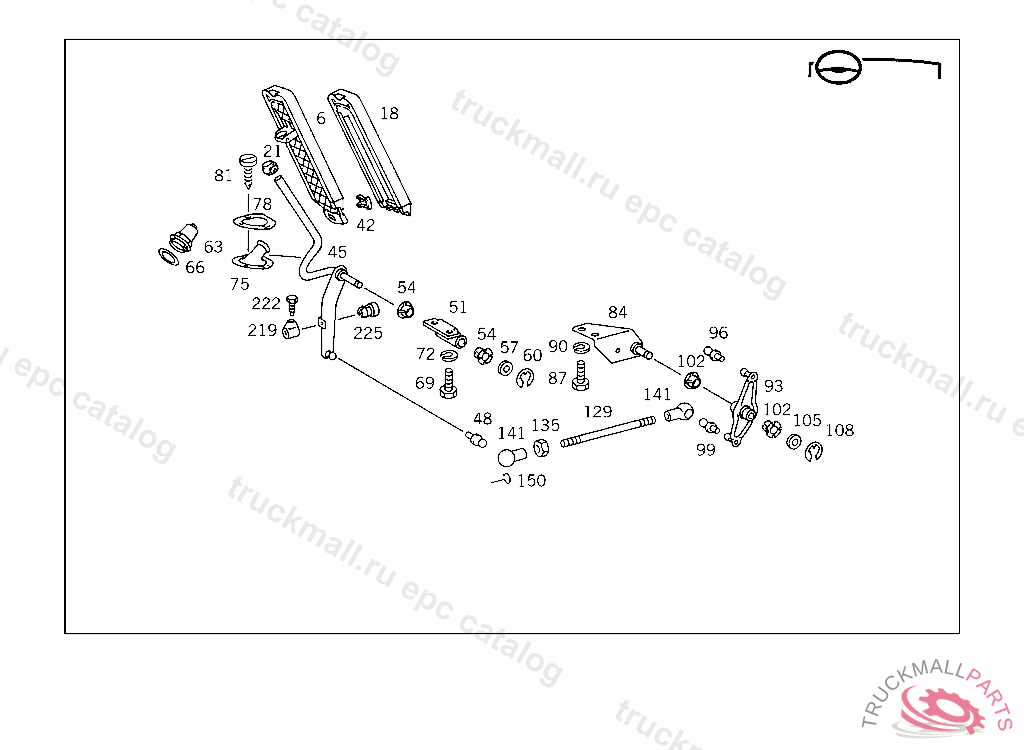

Поз.
Артикул
Описание
6
ACCELERATOR PEDAL
18
PAD , 000 112328 003 056792 007 046654 083 000998 086 000712 093 000557 102,103 091560 105 115062 183 001323 190 001262
21
JOINT ,B 859430
42
CLIP
45
LEVER (PEDAL LEVER),5 051625
45
LEVER (PEDAL LEVER),5 051624
48
BALL PIVOT BOTTOM B13X5 MM
51
BEARING BRACKET ACCELERATOR PEDAL
54
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
57
COVERING INTERMEDIATE BEARING
60
LOCK PLATE INTERMEDIATE BEARING
63
STOP
66
SEAL RING KICK-DOWN SWITCH
69
SCREW COVER PLATE TO BRACKET
72
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
75
BOOT PEDAL LEVER
78
BRACKET PEDAL LEVER
81
SCREW
81
SHEET METAL SCREW , Replaced By: N000000002062
84
BRACKET INTERMEDIATE BEARING
87
SCREW , Replaced By: N304017008016
87
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
90
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
93
LEVER INTERMEDIATE BEARING
93
LEVER , Replaced By: A6153000628
96
BALL PIVOT LEVER
96
BALL PIVOT , Replaced By: A3129910120
99
BALL PIVOT BOTTOM B13X5 MM
102
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
105
COVERING INTERMEDIATE BEARING
108
LOCK PLATE INTERMEDIATE BEARING
129
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
135
NUT
141
BALL SOCKET ROD TO BALL PIVOT
150
SECURING CLIP. CIRCLIP
219
END PIECE WIRE CABLE
222
SCREW IN CASE OF SUBSEQUENT INSTALLATION
225
BUSHING CONTROL LEVER,B 892892
999
PULL ROD , Replaced By: N900331006619
999
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
999
SCREW , Replaced By: N304017008039
999
COVERING , Replaced By: A6153010088
999
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 931321, Replaced By: A3813000928
999
KNOB , Replaced By: A3183000007
999
WIRE CABLE , Replaced By: A3523000230
999
GUIDE , Replaced By: A3523020308
999
GUIDE , UP TO IDENT NO. 739255 EXCEPT FOR 500001-599999, Replaced By: A3523020308, +001A3523020201
999
KNOB , Replaced By: A3523020201
999
GROMMET , Replaced By: A3453027091
999
KNOB , UP TO IDENT NO. 739255 EXCEPT FOR 500001-599999, Replaced By: A3523020201, +001A3523020308
999
BRACKET WIRE CABLE,4 431948
999
999
TUBE
999
CLAMP , Replaced By: A3609950301
999
999
999
999
999
KNOB , Replaced By: A3183000007
999
999
BRACKET DOUBLE LEVER
999
999
999
999
999
WIRE CABLE ,992525, Replaced By: A3523000230
999
CLAMP WIRE CABLE TO FIRE WALL
999
KNOBTO 323 300 00 07
999
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: N000933006229, +001A3763020468
999
END PIECE , Replaced By: A1233000086
999
COVERTO 323 300 00 07
999
ACCELERATOR PEDAL , Replaced By: A1233000204
999
RING WIRE CABLE TO LEVER
999
PAD , Replaced By: A1233000204
999
BRACKET , Replaced By: A1249888678
