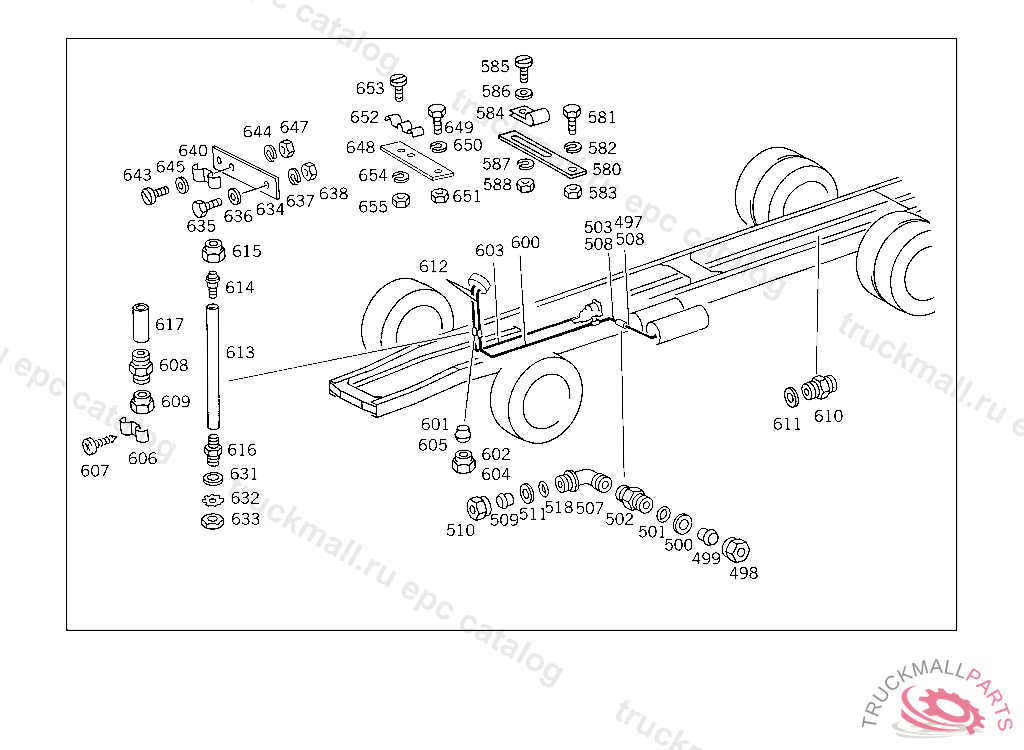

Mercedes A0089976082 - ТРУБКА

LS 1113 MBBRAS 344.040
42 BRAKES - 001 BRAKES IL. 13
  • Поз.
    Артикул
    Описание
  • 497
    LINE15X1.5 MM,376447
  • 498
    UNION NUT BUTT SCREW CONNECTION
  • 499
    GLAND LINE CONNECTION
  • 500
    THRUST RING BUTT SCREW CONNECTION
  • 501
    SEAL RING , Replaced By: N007603012121
  • 502
    DOUBLE FITTING ,376447
  • 503
    LINE FROM FITTING TO T-FITTING 15X1.5 M, 032 UP TO CHASSIS 006101, 033 UP TO CHASSIS 006525, 040/041 UP TO CHASSIS 005699, 055 UP TO CHASSIS 006790
  • 503
    LINE FROM FITTING TO T-FITTING 15X1.5 MM, 032 FROM CHASSIS 006102, 033 FROM CHASSIS 006526, 040/041 FROM CHASSIS 005700, 055 FROM CHASSIS 006791 INAPPLICABLE TO SUPERCHARGING SYSTEM376447
  • 508
    LINE FROM AIR RESERVOIR TO BRAKE BOOSTER 15X1.5 MM
  • 511
    THRUST RING BUTT SCREW CONNECTION
  • 518
    SEAL RING , Replaced By: N007603012121
  • 600
    ELECTRIC CABLE , 032 UP TO CHASSIS 006101, 033 UP TO CHASSIS 006525, 040/041 UP TO CHASSIS 005699, 055 UP TO CHASSIS 006790 132-141 UP TO CHASSIS 000258 INAPPLICABLE TO SUPERCHARGING SYSTEM
  • 600
    ELECTRIC CABLE PRESSURE GAUGE LINE 6X0.7 MM
  • 600
    ELECTRIC CABLE , Replaced By: A3445407161
  • 600
    ELECTRIC CABLE T-FITTING TO HOSE FITTING, INAPPLICABLE TO SUPERCHARGING SYSTEM609835
  • 601
    GLAND , Replaced By: A0019901667
  • 602
    UNION NUT T-FITTING TO HOSE FITTING, 032 UP TO CHASSIS 006101, 033 UP TO CHASSIS 006525, 040/041 UP TO CHASSIS 005699, 055 UP TO CHASSIS 006790 132-141 UP TO CHASSIS 000258
  • 602
    UNION NUT
  • 603
    ELECTRIC CABLE , Replaced By: A3445407061
  • 603
    ELECTRIC CABLE FROM BRAKE BOOSTER TO HOSE AND TO FITTING, INAPPLICABLE TO SUPERCHARGING SYSTEM609835
  • 603
    ELECTRIC CABLE PRESSURE GAUGE LINE 6X0.7 MM
  • 604
    UNION NUT
  • 605
    GLAND , Replaced By: A0019901667
  • 606
    CLAMP BRAKE LINE TO SIDE AND CROSS MEMBERS
  • 607
    SHEET METAL SCREW BRACKET TO ELECTRICAL APPARATUS COMPARTMENT 4,8X19
  • 612
    ELECTRIC CABLE TO PRESSURE GAUGE, 132-141 FROM CHASSIS 000259
  • 613
    HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
  • 614
    FITTING
  • 615
    UNION NUT
  • 616
    FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
  • 616
    CONNECTOR TO PRESSURE GAUGE, 132-141 FROM CAB 1500848
  • 617
    INSULATING HOSE BLACK 12 X 0,8 MM
  • 631
    WASHER SUPPORT TO FRAME,D 127794
  • 632
    TOOTHED WASHER ELECTRIC CABLE TO FUSE BOX
  • 633
    NUT , Replaced By: N000936012005
  • 633
    NUT , Replaced By: N308675012000
  • 634
    BRACKET LINE MOUNTING, INAPPLICABLE TO SUPERCHARGING SYSTEM398035
  • 634
    BRACKET FLEXIBLE SHAFT MOUNTING
  • 634
    BRACKET
  • 635
    SCREW PLUG SOCKET TO FRAME
  • 636
    WASHER TRAILER PLUG SOCKET TO BRACKET
  • 637
    LOCK WASHER RAIL TO BATTERY SUPPORT
  • 638
    NUT LEVER TO SHIFTING SHAFT
  • 640
    CLAMP BRAKE LINE TO SIDE AND CROSS MEMBERS
  • 640
    CLAMP BRAKE LINE TO SIDE AND CROSS MEMBERS
  • 643
    SCREW CONTROL UNIT
  • 644
    LOCK WASHER PLUG SOCKET
  • 644
    LOCK WASHER PLUG SOCKET
  • 645
    WASHER FUSE TO FUSE BOX
  • 647
    NUT TACHOGRAPH TO BRACKET
  • 999
    UNION NUT LINE MOUNTING
  • 999
    SEAL RING LINE CONNECTION
  • 999
    GLAND , Replaced By: A0019901167
  • 999
    SPRING , Replaced By: H983454310793
  • 999
    SPRING
  • 999
    BRAKE LINING , Replaced By: A3444210210
  • 999
    BRAKE LINING , Replaced By: A3444210110
  • 999
    BRAKE LINING , Replaced By: A3444210010
  • 999
    ELECTRIC CABLE FROM FIRE WALL TO EMERGENCY RELEASE VALVE
  • 999
    SPRINGTO 044 430 02 01,A 030543 BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
  • 999
    VALVETO 044 430 02 01,A 030543 BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
  • 999
    DISTRIBUTOR MASTER CYLINDER TO BRAKE VALVE,548520, 031,032,033,034
  • 999
    HOLLOW SCREW DISTRIBUTOR TO MASTER CYLINDER
  • 999
    DISTRIBUTOR BRAKE MASTER CYLINDER TO 344 430 78 01, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
  • 999
    BRAKE MASTER CYLINDERTEVES, NOT USED
  • 999
    PISTONTO 044 430 02 01,A 030543 BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
  • 999
    PISTONTO 044 430 02 01,A 030543 BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
  • 999
    BRAKE LINING REPAIR SIZE II 12.3 MM,"LONAFLEX"
  • 999
    BRAKE LINING REPAIR SIZE I 11.3 MM,"LONAFLEX"
  • 999
    BRAKE LINING STANDARD 10.4 MM,"LONAFLEX"
  • 999
    BRAKE LINING REPAIR SIZE II 12.3 MM,"FRAS-LE"
  • 999
    BRAKE LINING REPAIR SIZE I 11.3 MM,"FRAS-LE"
  • 999
    BRAKE LINING STANDARD 10.4 MM,"FRAS-LE"
  • 999
    BRAKE LINING REPAIR SIZE II 12.3 MM,"JURID"
  • 999
    BRAKE LINING REPAIR SIZE I 11.3 MM,"JURID"
  • 999
    BRAKE LINING
  • 999
    BRAKE SHOE REPAIR SIZE II "JURID"
  • 999
    BRAKE SHOE REPAIR SIZE I "JURID"
  • 999
    BRAKE SHOE WITH LINING "JURID"
  • 999
    BRAKE SHOE REPAIR SIZE II "LONAFLEX"
  • 999
    BRAKE SHOE REPAIR SIZE I "LONAFLEX"
  • 999
    BRAKE SHOE WITH LINING "LONAFLEX"
  • 999
    BRAKE SHOE WITH LINING "FRAS-LE"
  • 999
    BRACKET , NO LONGER AVAILABLE
  • 999
    RIVET
  • 999
    RUBBER STRIP , Replaced By: A3604750020
  • 999
    INSPECTION HOLE COVER
  • 999
    BRAKE SHOE , Replaced By: A3444207520
  • 999
    SNAP RINGTO 001 420 92 18, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7 NOT USED
  • 999
    SNAP RING
  • 999
    REPAIR KITTO 001 420 92 18, NOT USED
  • 999
    REPAIR KITTO 001 420 85 18,344 420 71 18
  • 999
    SPRING , Replaced By: A3454317093
  • 999
    SPRINGTO 044 430 02 01,A 030543 BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
  • 999
    CUPTO 002 430 31 01,A 030543 BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
  • 999
    FILLER RINGTO 044 430 02 01,A 030543 BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
  • 999
    PISTONTO 002 430 31 01
  • 999
    WASHERTO 044 430 02 01,A 030543 BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
  • 999
    CONNECTORTO 002 430 31 01
  • 999
    FILLER RINGTO 044 430 02 01,A 030543 BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
  • 999
    PISTONTO 002 430 31 01
  • 999
    WASHERTO 044 430 02 01,A 030543 BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
  • 999
    STRAINER , Replaced By: A0004310034
  • 999
    FILLER CAPTO 002 430 31 01
  • 999
    PISTON , Replaced By: A3444307183
  • 999
    PISTON , Replaced By: A3444307083
  • 999
    VALVE , Replaced By: A3454307081
  • 999
    DISTRIBUTOR , Replaced By: A3454287024
  • 999
    PROTECTIVE CAP
  • 999
    CABLE PULLEYTO 044 420 01 18
  • 999
    WHEEL BRAKE CYLINDER
  • 999
    SPRING
  • 999
    PROTECTIVE CAP BRAKE BOOSTER
  • 999
    CUPBOSCH
  • 999
    HOHLSCHRAUBE FUR. HOLLOW SCREW MASTER CYLINDER,CONNECTION "2.1",4 338292
  • 999
    THRUST PIN
  • 999
    PISTON
  • 999
    SPRING
